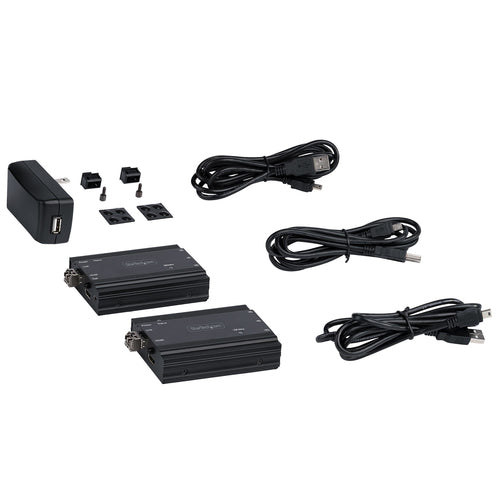

StarTech.com SV565FXHD4KU - 4K HDMI USB KVM Extender over Fiber Kit
StarTech.com SV565FXHD4KU - 4K HDMI USB KVM Extender over Fiber Kit
Overview
HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included

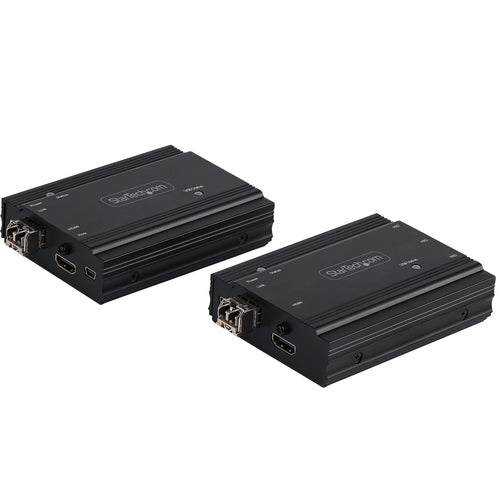

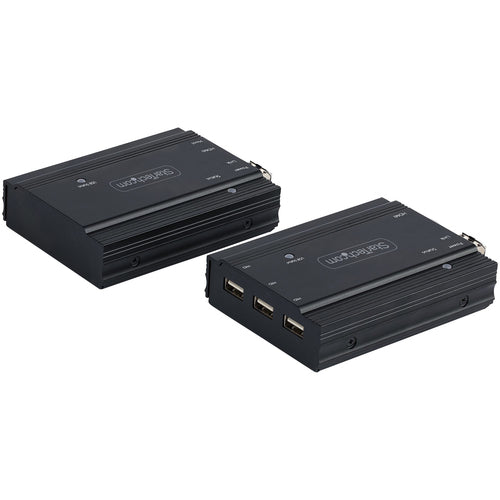

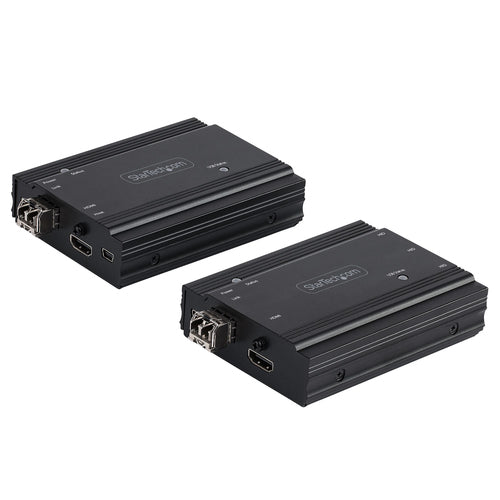

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.
Supports UHD 4K 60Hz
The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
Hassle-Free Installation
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling
SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.

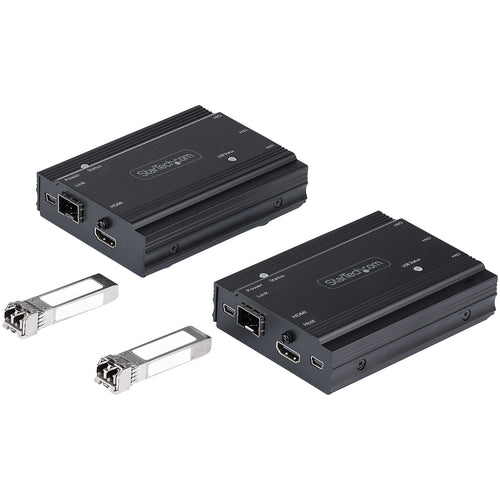

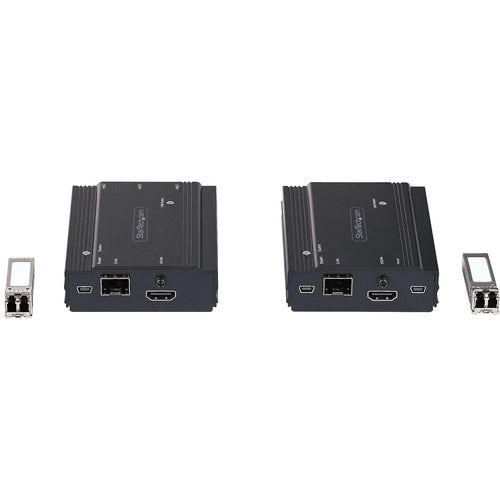

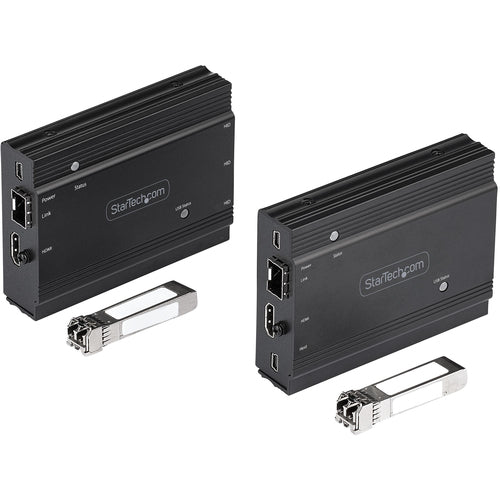

- REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
- 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
- DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support

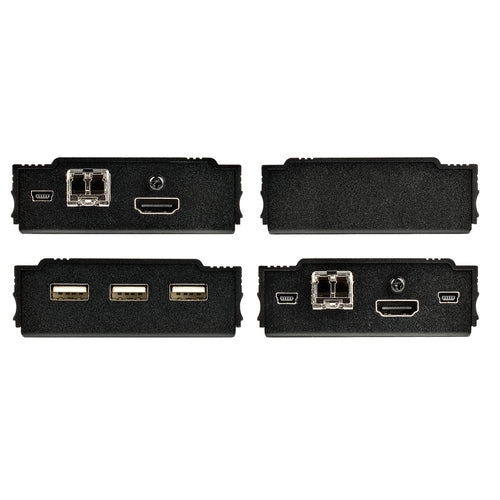

- SPECS: HDMI 2.0 Fiber Optic KVM Extender / 3x USB 1.1 HID / OS Independent / EDID Passthrough / Supports MM or SM SFP+ / 2x 10G Multimode SFP+ modules inc. / LC Connectors / 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range / 2 year Warranty
- EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5
Technical Specifications
| Type | Transmitter & Receiver |
|---|---|
| Connectivity technology | Wired |
| Maximum transfer distance | 500 |
| Rack mounting | N |
| Maximum digital resolution | 3840 x 2160 |
| Maximum refresh rate | 60 |
| On Screen Display (OSD) | N |
| Product colour | Black |
| Material | Metal |
| LED indicators | Power,Status |
| Transmitter video port type | HDMI |
| Number of displays supported | 1 |
| Receiver local video port type | HDMI |
| USB 1.1 ports quantity | 3 |
| AC input voltage | 100 - 240 |
| Input current | 0.3 |
| AC adapter output voltage | 5 |
| AC adapter output current | 2 |
| Power consumption (transmitter) (max) | 10 |
| Power consumption (receiver) (max) | 10 |
| Transmitter width | 75 |
| Transmitter depth | 100 |
| Transmitter height | 28 |
| Transmitter weight | 450 |
| Receiver width | 75 |
| Receiver depth | 100 |
| Receiver height | 28 |
| Receiver weight | 450 |
| Package width | 180 |
| Package depth | 310 |
| Package height | 74 |
| Package weight | 140 |
| AC adapter included | Y |
| Cables included | Mini-USB |
| Quick installation guide | Y |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -10 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Compliance certificates | CE,RoHS |
| Weight | 500 |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 405 |
| Master (outer) case length | 330 |
| Master (outer) case height | 265 |
| Products per master (outer) case | 6 |
