StarTech.com Thunderbolt 3 Daul 4K Docking Station with 85W Power Delivery
Features
https://www.startech.com/nz/Cards-Adapters/Laptop-docking-stations/thunderbolt-3-docking-station~TB3DK2DPPD

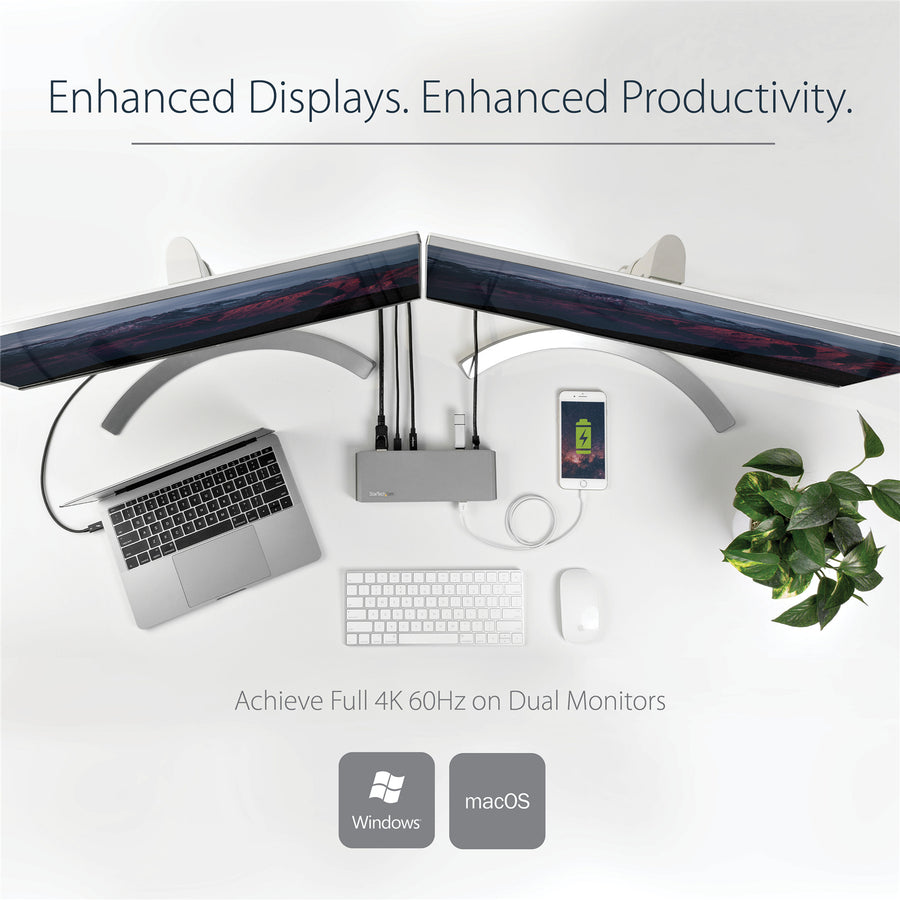

Create a Dual-4K Workstation
Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.
Connect your laptop to:
1?x?4K?monitor?via?the?DP Port??
1?x?4K?monitor via the TB3?USB-C?Port?(1.8 m?cable included)?
OR?
1?x?5K?monitor?via the?DP?&?TB3 USB-C port
Easy Installation & Deployment?
Simply connect the?TB3 dock?to your laptop with included TB3 cable and start working immediately. No?time-consuming driver installations are required.??
Connect your Devices
With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock's Fast-Charge and sync port. Connect a USB-C device with the USB-C port (5Gbps - data only).
Plenty of Charging Power
The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.
Specifications
Technical Specifications
| 4K Support | Yes |
|---|---|
| Bus Type | Thunderbolt 3 |
| Chipset ID | Intel - Alpine Ridge DSL6540Fresco - FL1100EXTexas Instruments - PCM2912AIntel - WGI210ATTexas Instruments - TPS65983 |
| Displays Supported | 2 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | Thunderbolt 3USB Battery Charging Specification Rev. 1.2IEEE 802.3, IEEE 802.3u, IEEE 802.3abUSB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 40 Gbps (Thunderbolt 3)10 Gbps (USB 3.1 Gen 2)5 Gbps (USB 3.0)2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | Single display - DisplayPort - 4096 x 2160p / 3840 x 2160pSingle Display - Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160pDual displays - DisplayPort 4096 x 2160p / 3840 x 2160p and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p |
| Type and Rate | Thunderbolt 3 - 40 Gbit/s |
| UASP Support | Yes |

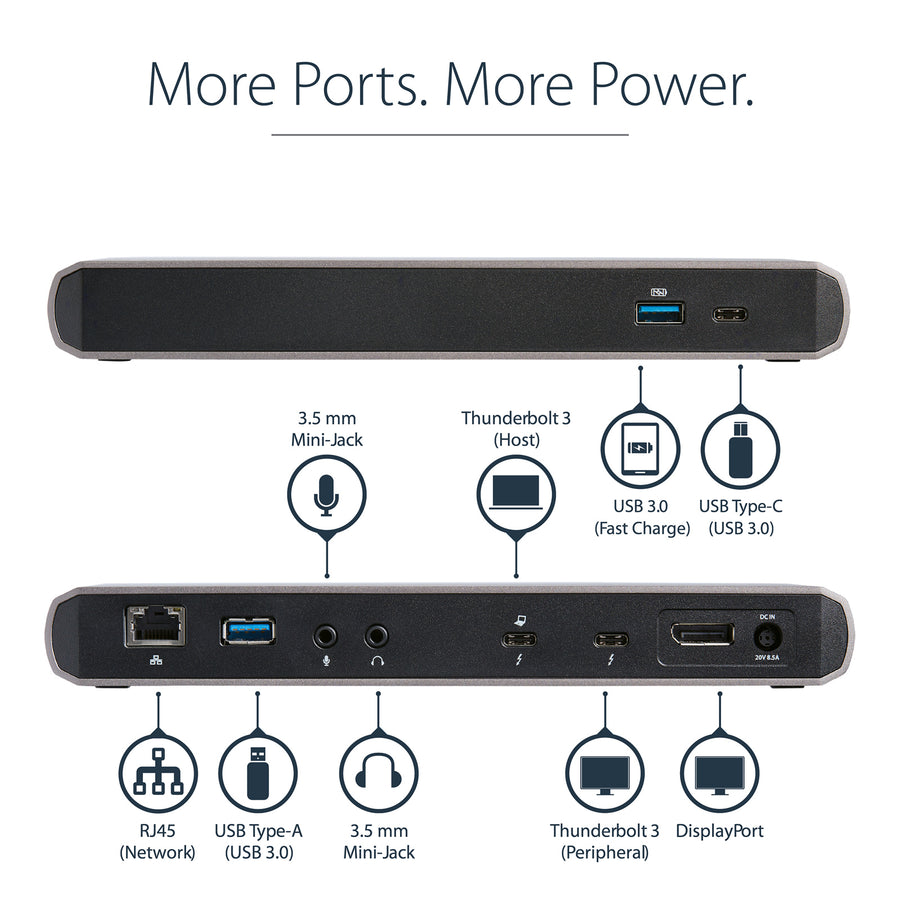

| Connector Type(s) | 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female1 - DisplayPort (20 pin) Female1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female1 - USB Type-A (9 pin) USB 3.0 Female2 - 3.5 mm Mini-Jack (3 Position) Female1 - RJ-45 Female |
| OS Compatibility | Windows® 7, 8, 8.1, 10macOS 10.12 - 10.14 |
| Note | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps. |
| System and Cable Requirements | Thunderbolt 3 equipped computer with a Thunderbolt 3 port.Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop. |
| Input Current | 2.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 8.5 A |
| Output Voltage | 20V DC |
| Plug Type | CP (OD:7.4/ID:5.1/CPD:0.6) |
| Power Consumption (In Watts) | 170 |
| Power Delivery | 85W |
| Power Source | AC Adapter Included |
| Humidity | 5~95% RH (Non-condensing) |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Cable Length | 20.5 in [520 mm] |
| Color | Gray and Black |
| Enclosure Type | Aluminum and Plastic |

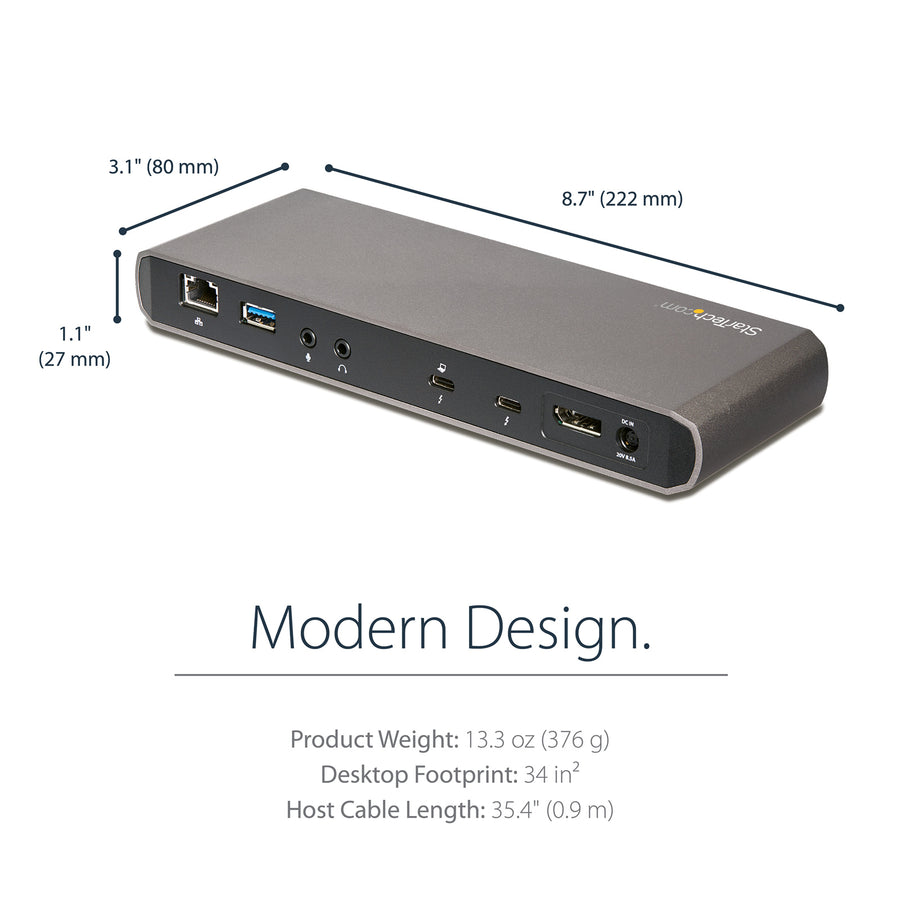

| Product Height | 1.1 in [27 mm] |
| Product Length | 8.7 in [220 mm] |
| Product Weight | 15.9 oz [450 g] |
| Product Width | 3.1 in [80 mm] |
| Shipping (Package) Weight | 3.3 lb [1.5 kg] |
| Brand | StarTech.com |
|---|---|
| Product Type | Computers & Tablets |
