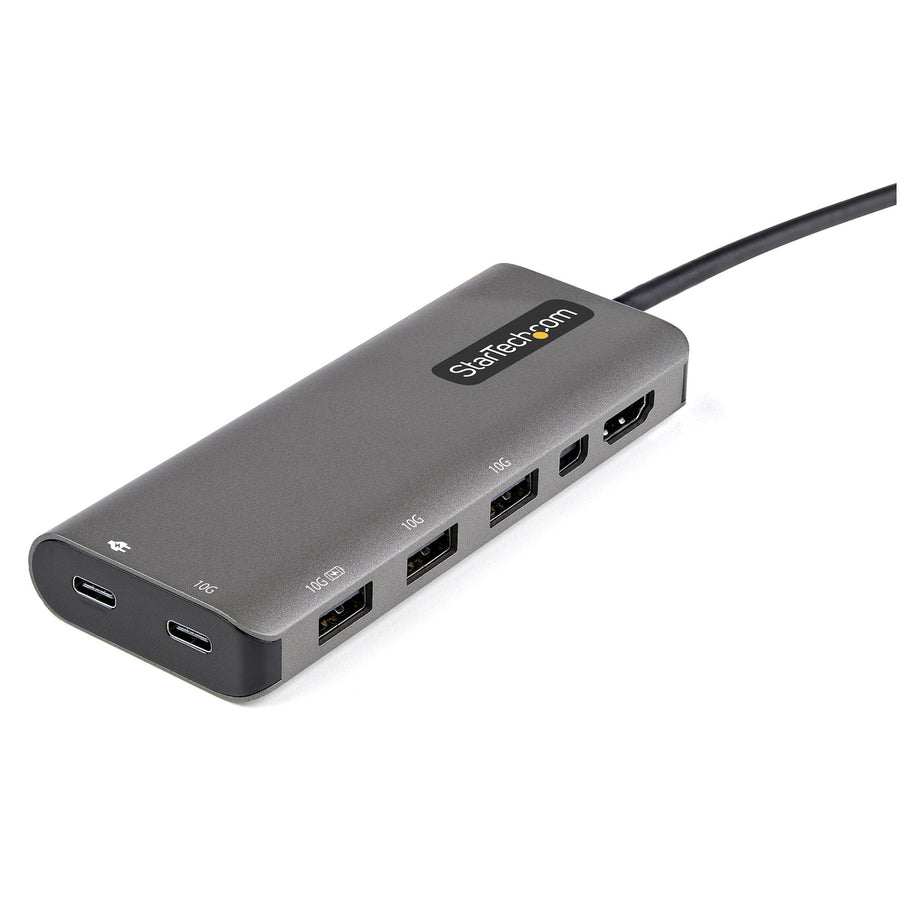

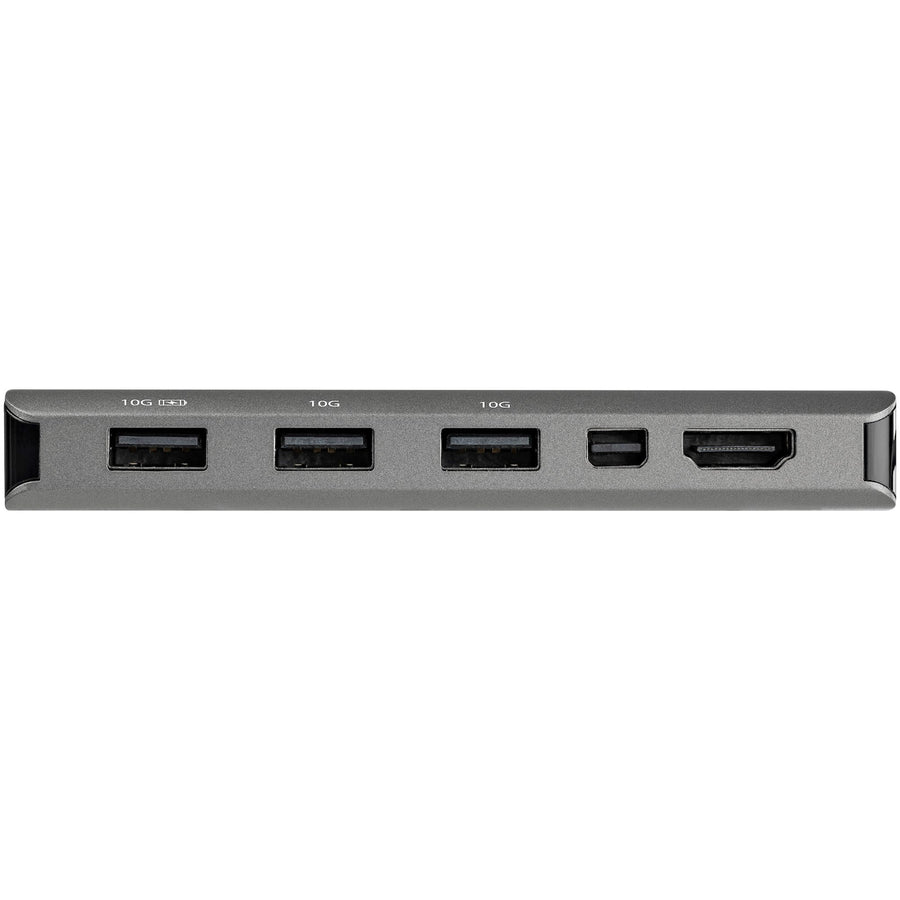

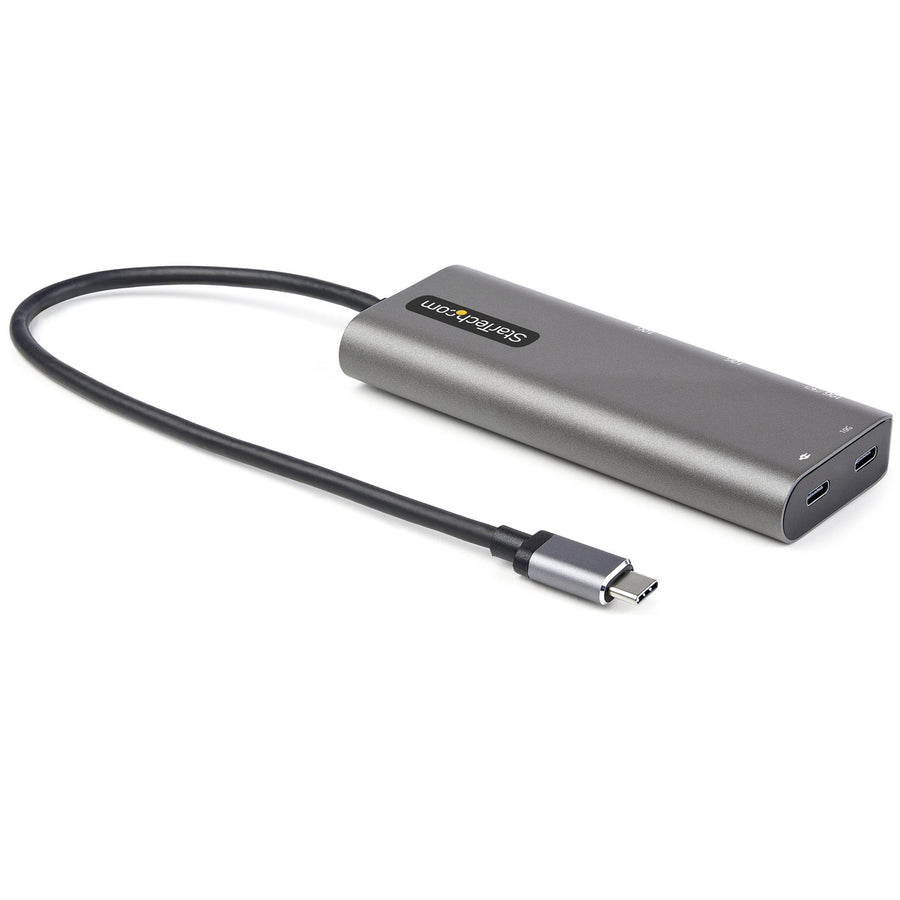

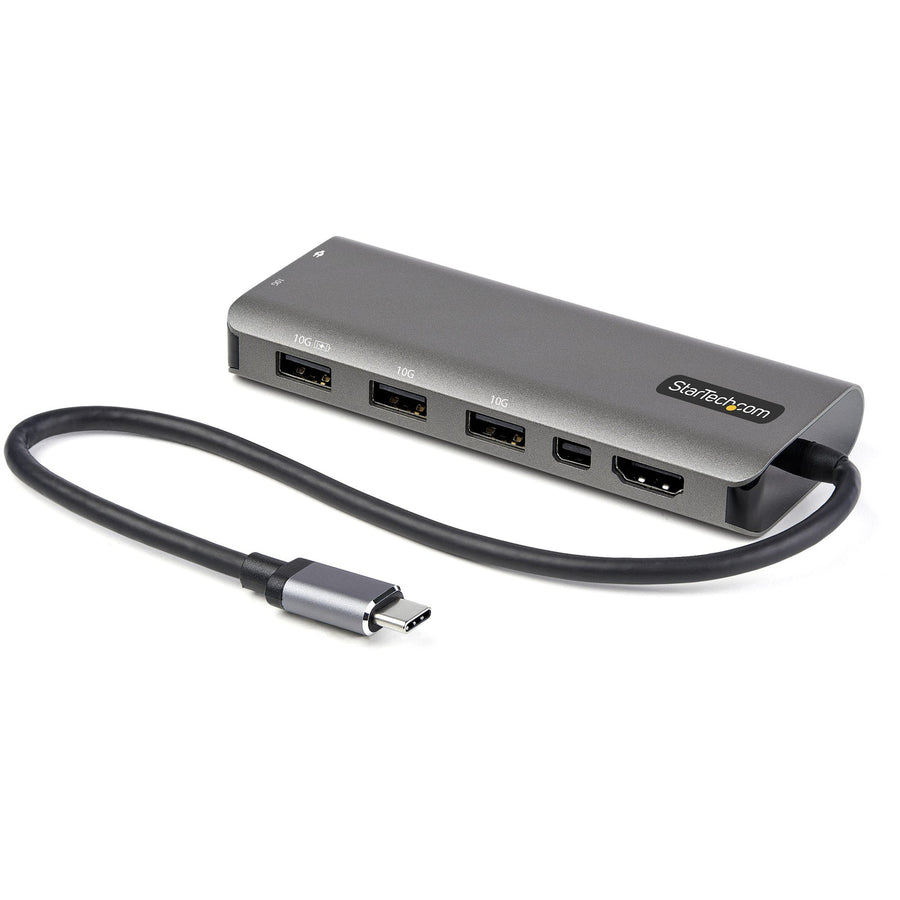

StarTech.com USB-C Multiport Adapter
Features

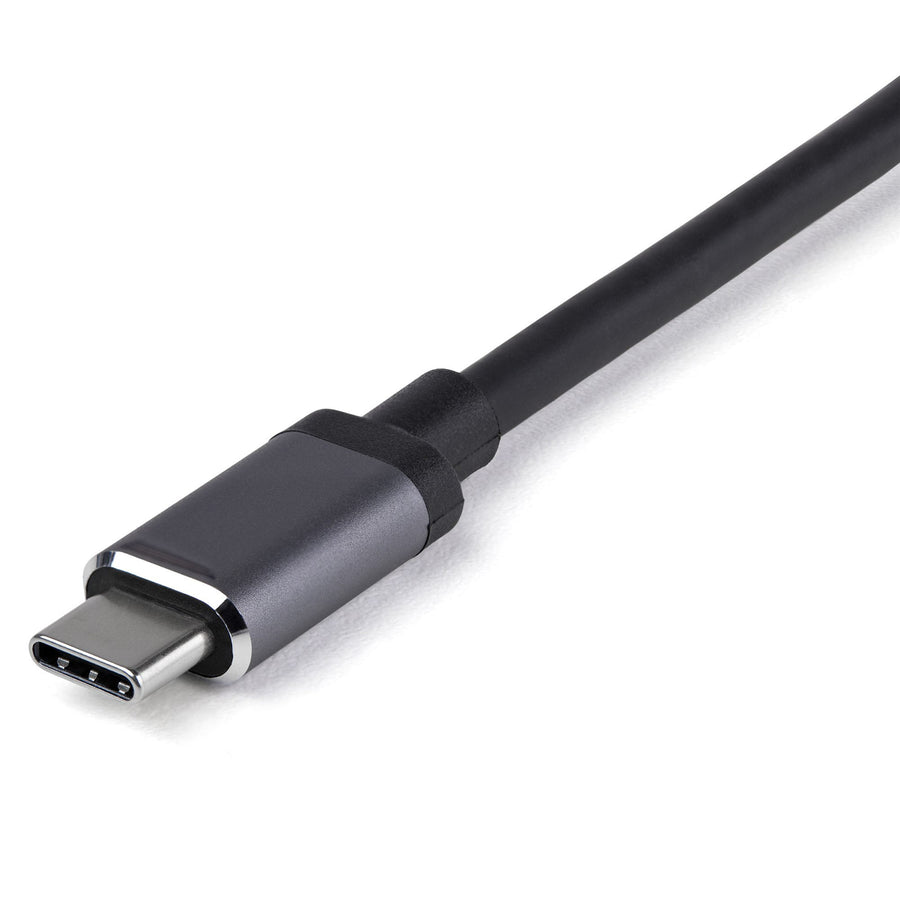

This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.
Maximum Resolution
The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.
Charge Your Laptop and Peripheral
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Specifications
Technical Specifications
| Connector Type(s) | 1 - HDMI (19 pin)1 - Mini DisplayPort3 - USB 3.1 Gen 1 Type-C (24 pin, 5Gbps)1 - USB Type-C (24 pin) USB Power Delivery only |
|---|---|
| Host Connectors | 1 - USB Type-C (24 pin, 5Gbps) |
| Displays Supported | 1 |
| 4K Support | Yes |
| Fast-Charge Port(s) | Yes |
| Ports | 7 |
| Audio | No |
| Interface | USB 3.1 Gen 2 - 10 Gbit/s |
| Bus Type | USB 3.1 Gen 2 |
| USB Pass-Through | Yes |
| Chipset ID | Realtek - RTD2142SVIA Labs - VL103VIA Labs - VL822VIA Labs - VL160Terminus - FE8.1 |
| Shipping (Package) Weight | 5.4 oz [153.0 g] |
| Package Height | 1.2 in [3.0 cm] |
| Package Length | 4.6 in [11.6 cm] |
| Package Width | 5.5 in [14.0 cm] |
| Maximum Data Transfer Rate | 10Gbps on USB-C port10Gbps on USB-A ports |
| Maximum Cable Length | 11.8 in [30 cm] |
| Maximum Digital Resolutions | 4K 60Hz (on hosts that support DP 1.4)4K 30Hz (on hosts that support DP 1.2) |
| Product Height | 6.3 in [16.0 cm] |
| Weight of Product | 3.0 oz [84.3 g] |
| Product Length | 1.8 in [4.7 cm] |
| Product Width | 16.7 in [42.5 cm] |
| Color | Space Gray |
| Cable Length | 11.8 in [30 cm] |
| Power Source | Bus Powered and Host USB-C Power Adapter |
| Power Delivery | 100W |
| Power Consumption (In Watts) | 15W |
| OS Compatibility | Windows® 8.1, 10, 11macOS 10.13 to 10.15, 11, 12.0Chrome OS™Ubuntu 18.04, 20.04iPadOSAndroid |
| Included in Package | 1 - USB-C Multiport Adapter2 - Rubber Feet1 - Quick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals |
