StarTech.com 117B-USBC-MULTIPORT - USB-C Triple-Monitor Multiport Adapter
Features
High Performance Triple 4K
Driverless setup (no drivers required); provides a combination of 2x HDMI 2.0b & 2x DisplayPort 1.4 video outputs; 3-port USB-A 3.2 Gen 2 10Gbps hub; Gigabit Ethernet (WoL/PXE Boot); 100W PD Pass-Through.

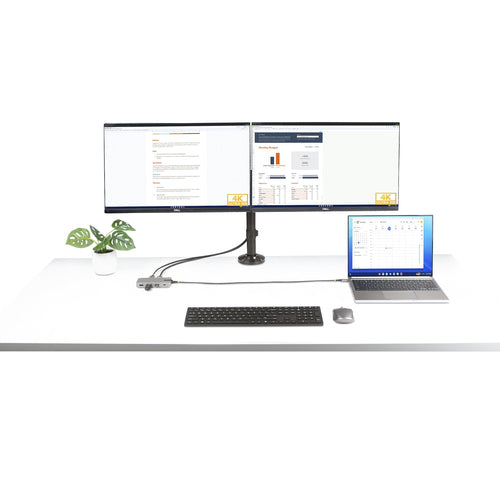

Fexible Multimonitor Output
Triple, Dual, or Single monitors up to 2x 4K 60Hz and 1x 4K 30Hz (Intel 11th Gen or later with DSC required for max performance); utilizes integrated or discrete laptop GPU for uncompressed video and low CPU usage.
Extra Long Cable & Durable Build
Built-in 2ft (60cm) host cable features high-quality TPE jacket & strain relief for enhanced durability & longevity; EMI shielding prevents signal interference between electronic devices for reliable performance.
Compatibility
Travel Docking Station for USB-C, USB4, TB3 and TB4 computers running Windows & ChromeOS; Universal Mini Dock features 100W PD with 15W reserved for adapter & up to 85W for host laptop charging; Works w/DP 1.2 Alt Mode at lower resolutions.
Our Advantage
Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout.

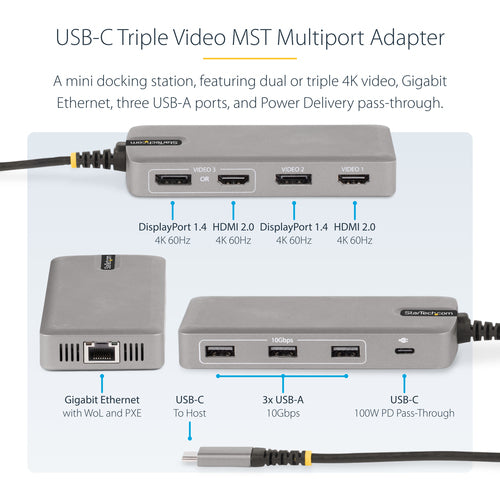

This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.

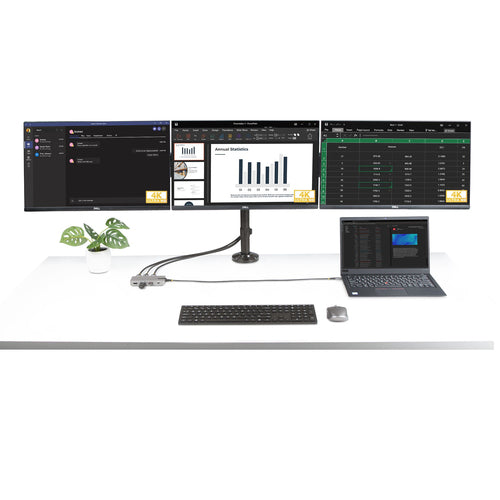

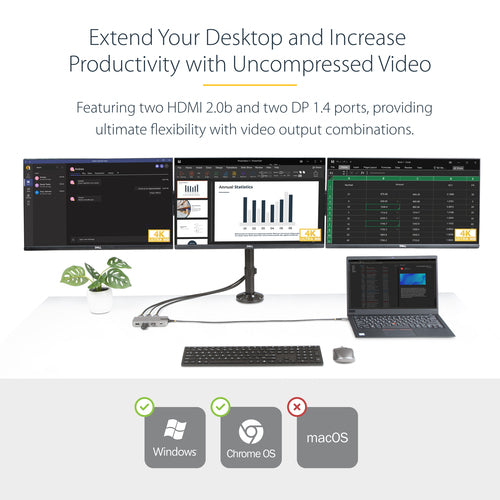

High-Performance Triple Video via MST
The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.

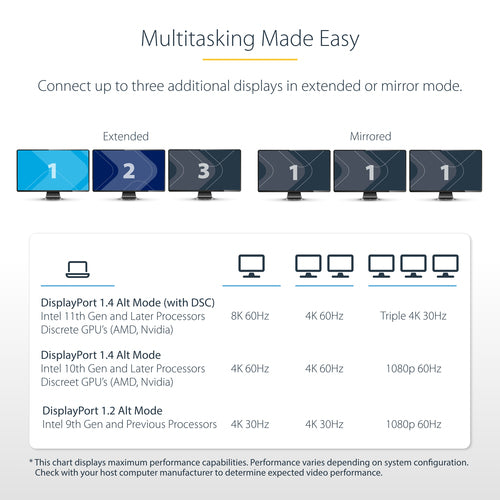

Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.
Connect USB Peripherals
The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).

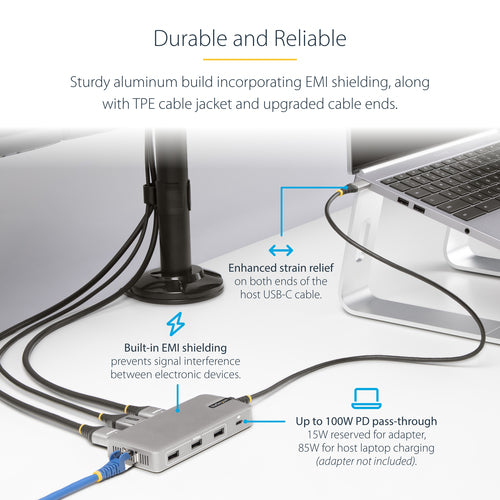

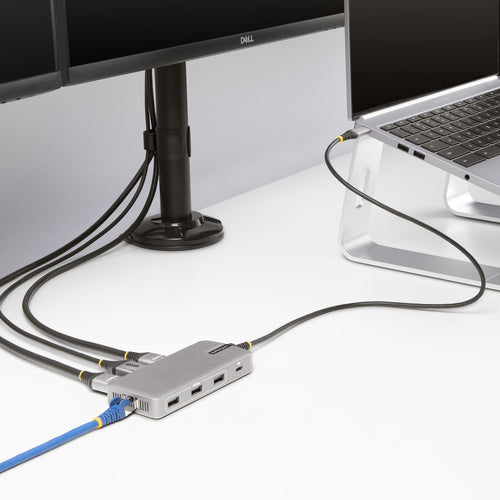

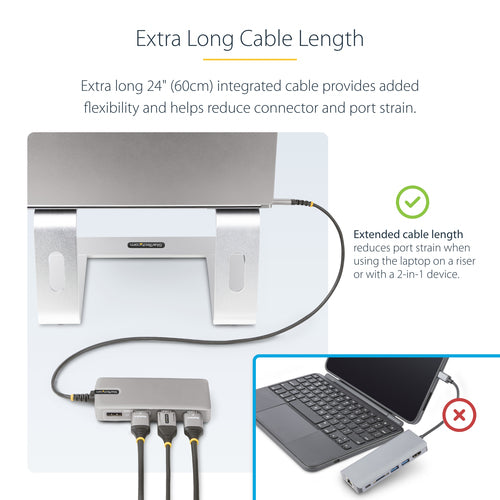

Extra Long Cable & Durable Build
The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.
100W Power Delivery

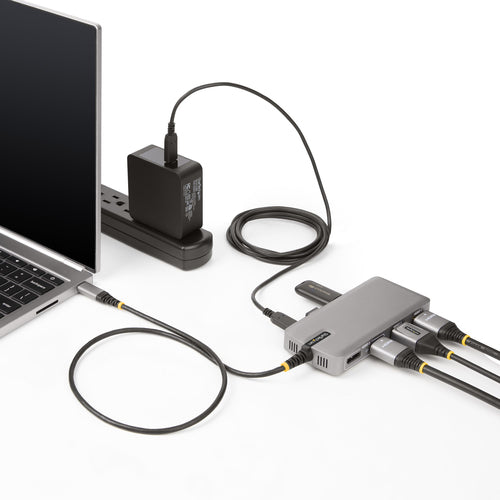

Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- MAC Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
Specifications
Technical Specifications
| External Ports | 3 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)1 - RJ-452 - DisplayPort (20 pin)2 - HDMI (19 pin)1 - USB Type-C (24 pin) USB Power Delivery Only |
|---|---|
| Host Connectors | 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 5~90% RH (Non-condensing) |
| 4K Support | Yes |
| Fast-Charge Port(s) | No |
| Displays Supported | 3 |
| Interface | USB 3.2 Gen 2 (10 Gbps) |
| Bus Type | USB-C |
| Industry Standards | HDMI 2.0bDisplayPort 1.4USB 3.2 Gen 2 (10 Gbps)USB Power Delivery Specification Rev. 3.0IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Chipset ID | Parade - PS8469Synaptics - VMM5322VIA - VL822VIA - VL103Realtek - RTL8153 |
| LED Indicators | 2 - Connection state/activity LEDs under GbE port |
| Package Length | 9.5 in [24.1 cm] |
| Package Width | 4.9 in [12.4 cm] |
| Package Height | 1.3 in [3.2 cm] |
| Shipping (Package) Weight | 8.5 oz [240.0 g] |
| Wake On Lan | Yes |
| Maximum Data Transfer Rate | USB 3.2 Gen 2 (10 Gbps) |
| Maximum Digital Resolutions | Triple Display:3840 x 2160 60Hz3840 x 2160 60Hz3840 x 2160 30HzDual Display:3840 x 2160 60Hz3840 x 2160 60HzGPU CAPABILITIES: A laptop with a discrete video card is recommended for maximum dual or triple display performance. Must also support DP 1.4 Alt-Mode with DSC. Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors) |
| Type and Rate | USB 3.2 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| PXE | Yes |
| Full Duplex Support | Yes |
| Color | Gray |

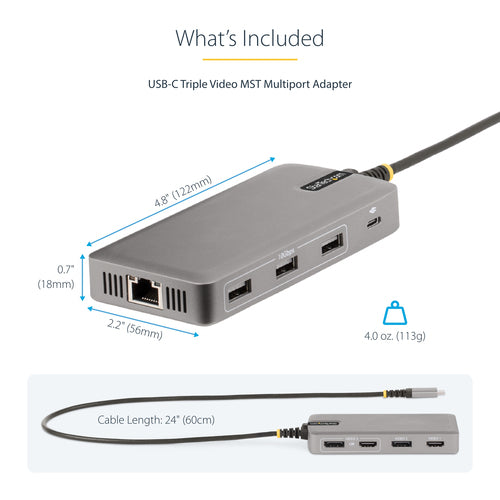

| Product Length | 4.8 in [12.2 cm] |
| Product Width | 2.2 in [5.6 cm] |
| Product Height | 0.7 in [1.8 cm] |
| Weight of Product | 4.0 oz [113.0 g] |
| Material | Plastic |
| Cable Length | 23.6 in [60 cm] |
| Power Source | Bus Powered and Host USB-C Power Adapter |
| Power Consumption (In Watts) | 15W |
| OS Compatibility | Windows 10, 11Windows 8.1Chrome OS 78.x |
| System and Cable Requirements | A Windows or ChromeOS based computer with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB-C Power Delivery, DP alt mode and MST) |
| Note | Ensure computer drivers, firmware, and operating system are up to date prior to using the docking station |
| Included in Package | 1 - USB-C Multiport Adapter1 - Quick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.952 kg |
| Warranty |
|---|
