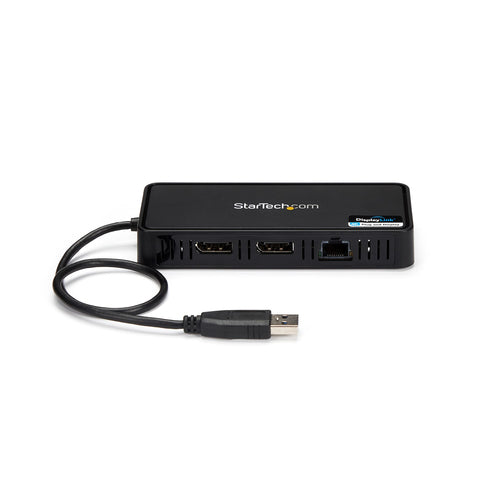

StarTech.com USBA2DPGB - USB to Dual DisplayPort Mini Dock - 4K

SKU: USBA2DPGB ● In Stock
$56.48
Free shipping over $299 Genuine product 7-day returns

StarTech.com USBA2DPGB - USB to Dual DisplayPort Mini Dock - 4K

Overview

Portable Docking Station | USB 3.0 | Mac & Windows® | TAA Compliant

This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.

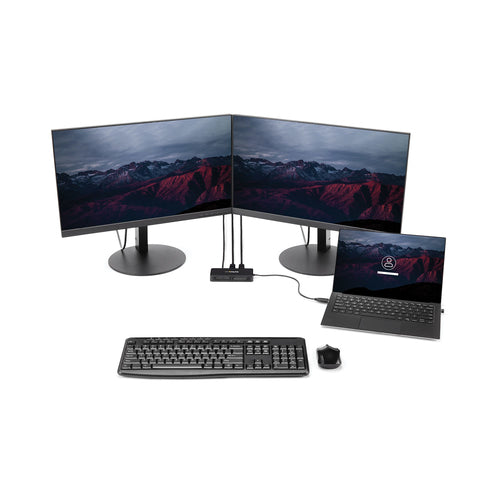

Increase Your Productivity with Two 4K Monitors

The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.

Access Hardwired Networks with a GbE Port

Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.

Maximize Portability with a Miniature Docking Station

The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.

The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

  • USB-A DUAL 4K 60HZ MINI DOCK: USB 3.0 mini dock with dual monitor DisplayPort, GbE port; DisplayLink certified, DL 6950 chipset supports dual DP 4K 60Hz video output & widespread display compatibility
  • EASY INSTALLATION: Portable USB Type-A docking station with a 1ft (30cm) attached cable to provide setup flexibility & extended port reach to devices like USB-A Surface Pros to reduce port strain
  • DESIGNED FOR PORTABILITY: This bus-powered USB-A mini docking station has a compact form factor and it is ideally suited for small in-office or work-from-home workspaces
  • WIDE DEVICE COMPATIBILITY: This mini dock is compatible with wide range of USB-A laptops, ultrabooks, chromebooks and Surface Pros
  • EASY TO SETUP AND DEPLOY: This USB-A (USB 3.0/USB 3.1 Gen 1) multiport adapter hub features automatic driver setup and supports multiple OS platforms including Windows & Chrome OS

Technical Specifications

Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DisplayPorts quantity 2
Microphone in N
DC-in jack N
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000
Wake-on-LAN ready Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X Y
Full duplex Y
Card reader integrated N
Data transfer rate 5
Maximum digital resolution 4096 x 2160
Number of displays supported 2
Product colour Black
UASP support N
Brand compatibility Any brand
Certification CE, FCC, TAA
Power source type USB
Wireless charging N
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64
Mac compatibility Y
Mac operating systems supported Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 13.0 Ventura
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -10 - 60
Operating relative humidity (H-H) 10 - 90
Width 58
Depth 130
Height 20
Weight 126
Package width 200
Package depth 114
Package height 38
Package weight 215
Quick start guide Y
Compliance certificates RoHS
Products per master (outer) case 20
Master (outer) case width 220
Master (outer) case length 415
Master (outer) case height 255
Harmonized System (HS) code 84733020
Cable length 0.14
Chipset DisplayLink - DL-6950
