Yealink 1301203 - T46U BUSINESS IP PHONE
Features
https://www.yealink.com/en/product-detail/ip-phone-t46u

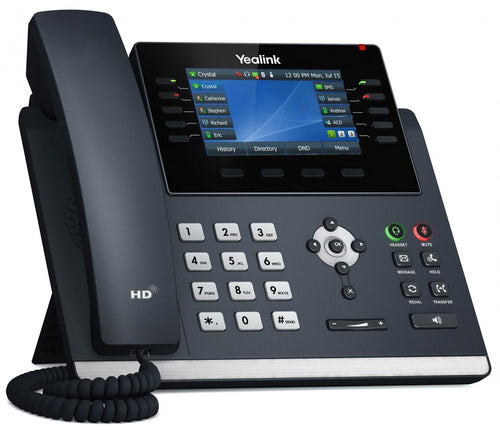

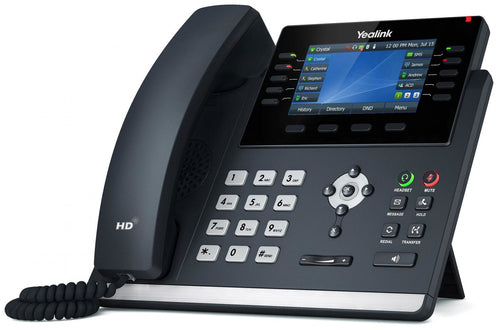

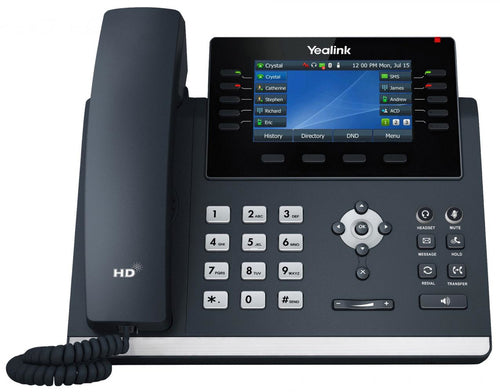

Yealink Ultra-Elegant Gigabit IP Phone - Black
A Revolutionary SIP Phone for Enhancing Productivity
Designed for busy executives and professional, the SIP-T46U IP phone is an ultimate communication tool that has the better overall performance. The phone employs an appealing high-resolution TFT color display that looks brighter and more vibrant. United Yealink Optima HD Voice technology and wideband codec of Opus, the T46U awards you the superb audio quality and crystal-clear voice communications. Moreover, the T46U puts dual USB ports in a phone that makes Bluetooth, Wi-Fi (Requires addon - MPHYLK3270315), USB headset and USB recording come true, and you can use any two of them freely according to your needs. The Yealink new T4U series offers the same elegant appearance as the T4 line, but with improvements for greater interoperability and better collaboration.
Easy Customization and High Expansibility
The SIP-T46U comes with two Gigabit Ethernet ports, one of which is suitable for Power over Ethernet (PoE). Accompanied by two USB ports, the T46U is your right-hand man in the office that makes Bluetooth, Wi-Fi (Requires addon - MPHYLK3270315), USB headset and USB recording possible, and you can use any two of them freely according to your needs to enrich phone features. Meanwhile, the phone not only has three pages of flexible buttons that can be easily programmed with 27 paperless DSS keys at most, but also can connect up to three expansion modules, for up to 180 additional buttons with a screen-based LCD display and LED system.
HD Audio
Yealink Optima HD Voice technology combines cutting-edge hardware and software with wideband technology for maximum acoustic performance. Being a totally open, highly versatile audio codec, Opus, is designed to perform a higher HD audio quality than other wideband codecs in a high network bandwidth; However, if your current network quality is poor, Opus can provide you with a better audio quality than other narrowband codecs. And its hearing aid compatible (HAC) handset helps the person who is with hearing loss to hear the voice more clearly.
Efficient Installation and Provisioning
Yealink T4U series supports efficient provisioning and effortless mass deployment with Yealink's Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes the T4U series simple to deploy, easy to maintain and upgrade. Furthermore, a unified firmware and auto-p template that applies to all T42U (pending)/T43U/T46U/T48U phone models, saves even more time and costs for businesses, as well as simplifies the management and maintenance.
Secure Transport and Interoperability
Yealink T4U series uses SIP over Transport Layer Security (TLS/SSL), which is the latest network security technology. It's also compatible with leading soft switch suppliers, such as 3CX, Broadsoft Broadworks. Moreover, it is carried with dual fimrware images that gives you a enterprise-level protection to avoid bricking your system once upgrade failed.

Specifications
Technical Specifications
| Audio Feature | HD voice: HD handset, HD speakerHearing aid compatible (HAC) handsetAcoustic ShieldCodecs: AMR-WB (optional), AMR-NB (optional),Opus*, G.722, G.711(A/µ), G.723.1, G.729AB,G.726, iLBCDTMF: In-band, Out-of-band (RFC 2833) and SIPINFOFull-duplex hands-free speakerphone with AECVAD, CNG, AEC, PLC, AJB, AGC |
|---|---|
| Phone Features | 16 VoIP accountsCall hold, mute, DNDOne-touch speed dial, hotlineCall forward, call waiting, call transferGroup listening, SMS, emergency callRedial, call return, auto answer3-way conferencingDirect IP call without SIP proxyRing tone selection/import/deleteSet date time manually or automaticallyDial plan, XML Browser, Action URL/URIRTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)USB port (2.0 compliant) for:- Bluetooth earphone through BT40/BT41- Contact synchronization through BT40/BT41- Wi-Fi through WF40/WF50 (MPHYLK3270315)* Is required for WiFi to function- USB call recording through USB flash drive- USB headset- Expansion Module EXP43- Wireless Headset Adapter EHS40Enhanced DSS key |
| Directory | Local phonebook up to 1000 entriesBlack listXML/LDAP remote phonebookSmart dialingPhonebook search/import/exportCall history: dialed/received/missed/forwarded |
| IP-PBX Features | Busy Lamp Field (BLF)Bridged Line Apperance (BLA)Anonymous call, anonymous call rejectionHot-desking, voice mailFlexible seatingCall park, call pickupExecutive and AssistantCentralized call recording\Visual voice mailCall recording |
| Display and Indicator | 4.3" 480 x 272-pixel color display with backlight16 bit depth colorLED for call and message waiting indicationDual-color (red or green) illuminated LEDs for linestatus informationWallpaperIntuitive user interface with icons and soft keysMultilingual user interfaceCaller ID with name and numberScreensaverPower saving |
| Feature keys | 10 line keys with LED10 line keys can be programmed up to 27 paperlessDSS keys (3-page view)7 features keys: message, headset, hold, mute, transfer,redial, hands-free speakerphone4 context-sensitive "soft" keys6 navigation keysVolume control keysIlluminated mute keyIlluminated headset keyIlluminated hands-free speakerphone key |
| Interface | Dual-port Gigabit EthernetPower over Ethernet (IEEE 802.3af), class 32 x USB port (2.0 compliant)1 x RJ9 (4P4C) handset port1 x RJ9 (4P4C) headset port |
| Other Physical Features | Color: Classic GreyStand with 2 adjustable anglesWall mountableExternal Yealink AC adapter (optional):AC 100~240V input and DC 5V/2A outputUSB output currency: 5V 1APower consumption (PSU): 1.2-3.0WPower consumption (PoE): 1.6-3.8WDimension (W*D*H*T): 244mm*213mm*185mm*54mmOperating humidity: 10~95%Operating temperature: 0~40°C (+32~104°F) |
| Management | Configuration: browser/phone/auto-provisionAuto provision via FTP/TFTP/HTTP/HTTPS formass deployAuto-provision with PnPBroadsoft device managementZero-sp-touch, TR-069Phone lock for personal privacy protectionReset to factory, rebootPackage tracing export, system log |
| Network and Security | SIP v1 (RFC2543), v2 (RFC3261)Call server redundancy supportedNAT traversal: STUN modeProxy mode and peer-to-peer SIP link modeIP assignment: static/DHCPHTTP/HTTPS web serverTime and date synchronization using SNTPUDP/TCP/DNS-SRV(RFC 3263)QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCPSRTP for voiceTransport Layer Security (TLS)HTTPS certificate managerAES encryption for configuration fileDigest authenticationOpenVPN, IEEE802.1XIPv6, LLDP/CDP/DHCP VLAN, ICE |
| Package Features | Package content:- Yealink SIP-T46U IP phone- Handset with handset cord- Ethernet Cable (2m CAT5E UTP Cable)- Stand- Quick Start Guide- Power Adapter (Optional)- Wall Mount Bracket (Optional) |
| Brand | Yealink |
|---|---|
| Product Type | UC & Video Conferencing > Business Phones > IP Phones / Gateways |
| Weight | 0.658 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
