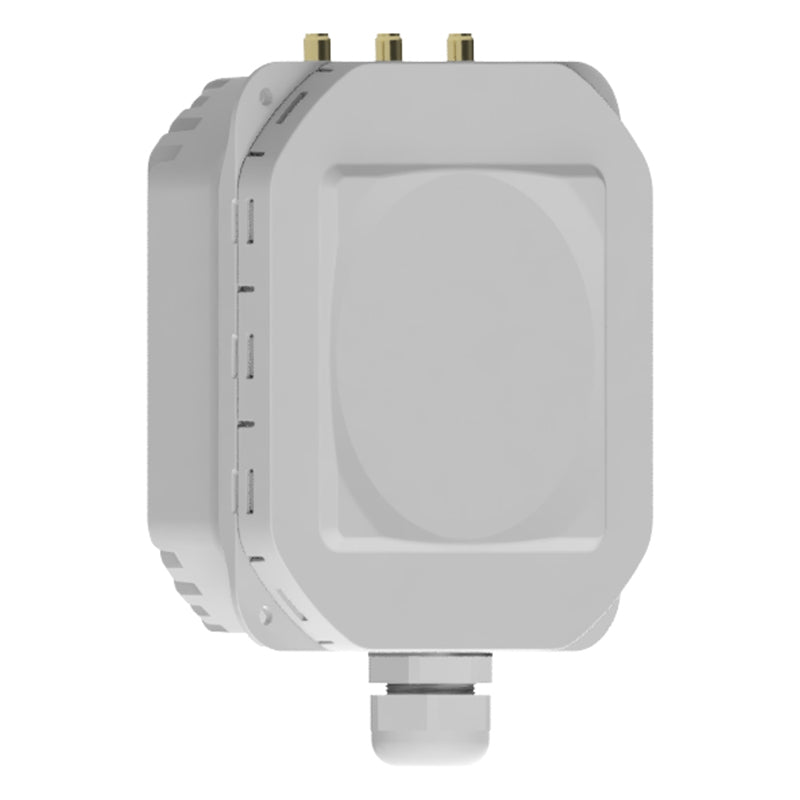

Tachyon Networks TNA-305X 60 GHz Modular Outdoor AP/Client with Integrated 5 GHz Failover Radio

Go Wireless NZ is proud to be a Master Distributor for Tachyon Networks.

Tachyon Networks leads the supply of next generation wireless infrastructure created for ISPs, companies and public networks. With a strong focus on millimeter and 60 GHz wave technologies, Tachyon offers spot-to-point radios projected for ultra reliable and high performance. Its proprietary TachOS software allows intelligent network control, simplifying deployment and maximizing activity time. Designed for rapid integration, Tachyon Solutions supports rural expansion, urban densification and safe corporate communication. From robust hardware to cloud-based management, they offer a complete wireless connectivity ecosystem.

https://tachyon-networks.com/

Description

Specifications

Resources

Package Contents

Tachyon Networks TNA-305X is the most versatile member of the TNA series, combining fiber-like 60GHz performance with an integrated 5–7GHz backup radio. This versatile radio delivers 2+ Gbps to up to 32 clients at distances of 6+ km (antenna kit dependent), making it ideal for sub-7GHz offload, multi-gigabit last-mile deployments, building-to-building PTP links, and high-capacity video surveillance networks. Antenna kits are compatible with both the internal 60GHz and 5-7GHz radios, or the 5-7GHza radio can optionally be redirected to external RP-SMA connectors for use with an external antenna of the operator's choice. A built-in 2.4GHz radio makes setup and management a breeze.

Sub-7GHz offload
Because the sub-7GHz spectrum is scarce and prone to interference, the TNA-300 series models are perfect for offloading clients within range, leaving the low bands for hard-to-reach customers and for backup.

Deploying fiber-like service
The TNA-300 series product family can deliver multi-Gigabit speeds to up to 32 clients per sector at a fraction of the cost of deploying fiber.

High speed point-to-point
Use the TNA-300 series products to easily create point-to-point connections between buildings in urban environments.

High bandwidth video surveillance
The TNA-300 series units feature a proprietary TDMA scheduling protocol which is perfect for video surveillance networks requiring high-capacity upload bandwidth.

Note. the backup radio in the first batch of radios is only suitable for 5 GHz, future hardware revisions will support the full 5-7 GHz band.

Details
Manufacturer's Code	TNA-305X-AU version 1
Beam-forming range with base antenna	90º x 50º
60 GHz Operating modes	Station, Access Point, PTP (software configurable)
60 GHz Max STA count per AP	Up to 32 stations
60 GHz Max EIRP (Country dependent)	38dBm / higher when used with antenna kits
60 GHz Link encryption	AES 128 + GCMP
60 GHz Frequency & supported channels	Full band: 57-71 GHz: channels: 1-6, Half channels: 1-12 (see notes on support site about half channel support)
60 GHz Channel size options	Full (2 GHz), half (1 GHz) (see notes on support site about half channel support)
60 GHz Station scheduling / Duplexing	TDMA: dynamic scheduling mechanism / TDD
TNA-305X Base Antenna	16 dBi 3D beamforming phased array with +/- 45° azimuth (90° total) and +/- 25° elevation (50° total). Beam size is: 30° azimuth x 30° elevation. Single linear polarization.
5-7 GHz Operating modes	Station, Access Point, PTP (software configurable)
5-7 GHz Link encryption	AES 256 + GCMP
5-7 GHz RF	WIFI-7 – Based / 5.1-7GHz (country dependent), +22dBm TX Power Combined (MCS0) / -93dBm @MCS0, -64dBm @MCS11
5-7 GHz Channel size options	20/40/80/160/240/320MHz
5-7 GHz Station scheduling / Duplexing	OFDMA / TDD
5-7 GHz Antenna options	Integrated 2x2 + 2x2 patch compatible with TNA-AK antenna kits, 2x RP-SMA connectors (software selectable) for external antennas
Max MTU size	2024 b
Networking mode	Transparent bridge / IPv4 & IPv6 Supported
VLAN capabilities	Data VLAN (in station mode) & management VLAN
Other features	Traffic shaping (station mode), DHCP snooping, device discovery, speedtest, and more
Management	Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request)
Wired Interfaces	1 x 2.5G ethernet
Management Interfaces	2.4GHz WiFi7 w/ Internal Antennas
GPS	22 tracking / 66 acquisition-channel GPS receiver w/ DGPS
Mount	Pole or wall mountable via mounting backplate
PoE input power	Active PoE 38-57VDC (passive injector included)
Max power consumption	TBD
Certifications	FCC/IC/CE/UK
Operating temperature	-30°C - 55°C
Base Unit dimensions & weight	Height: 13cm, Width: 12 cm, Depth: 5.5cm, 425 g
LEDs	Ethernet link status, wireless status, signal level, & power

Details
Power Supply	48V 0.5 PoE adapter included
Mounting Hardware	Pole or wall mountable via included mounting backplate
