Tamiya

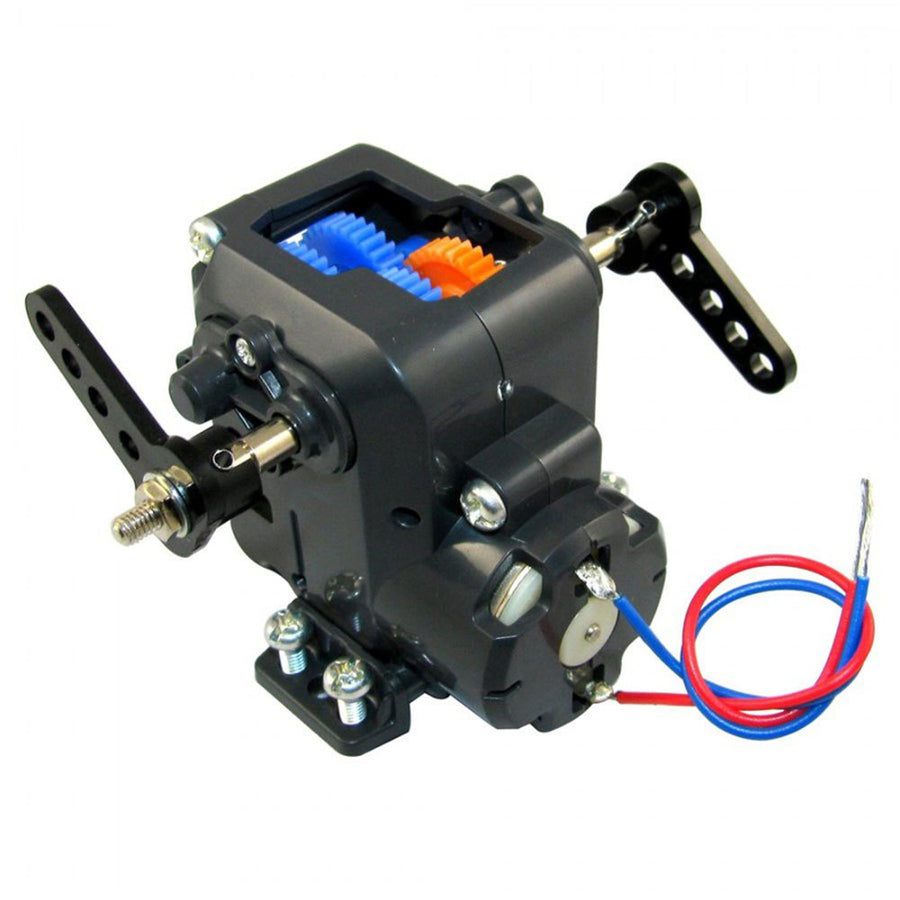

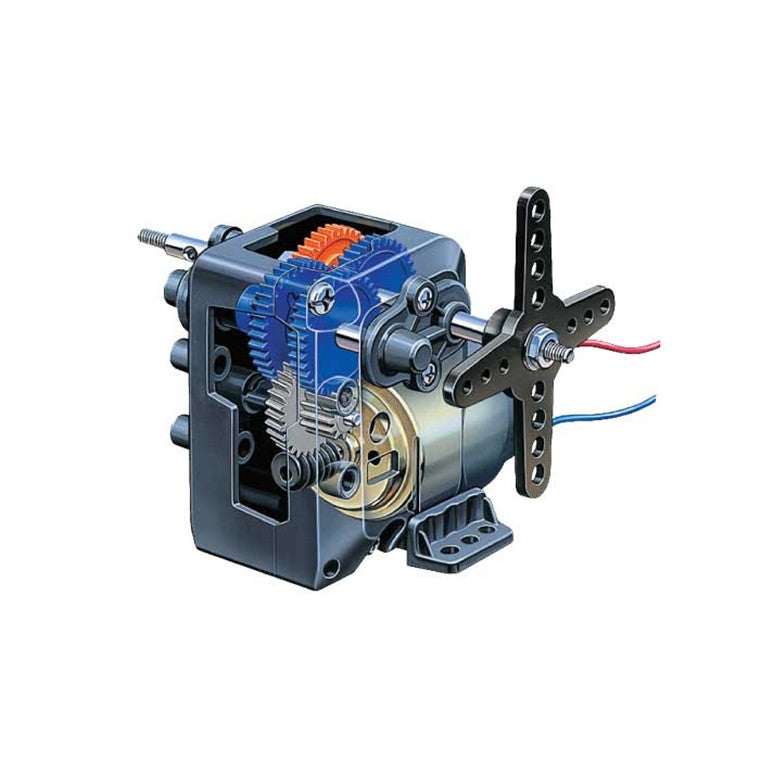

Tamiya 72008 - TAMIYA 4 SPEED HIGH WORM GEAR BOX HE
$25.22
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
The Type 260 motor has been used in a variety of applications since its release in 1985. The gearboxes are often used in Robotics contests and enable the possibility of assembly with high and low gear ratios.
-One type 260 motor.
-Four different gear ratios: 84:1, 216:1, 555.4:1, 1428.2:1
-Worm gear (locks the output shaft when the motor is not turning)
-4 mm round output shaft (length: 100 mm) compatible with Tamiya wheels for 4 mm, round shafts and our 4 mm universal mounting hub.
-Assorted cranks
Specifications
Technical Specifications
| Gear Ratio: 1428.2:1 | RPM: 7Torque g/cm: (2.306) |
|---|---|
| Gear Ratio: 555.4:1 | RPM: 18Torque g/cm: (2.306) |
| Gear Ratio: 216:1 | RPM: 47Torque g/cm: 2851 |
| Gear Ratio: 84:1 | RPM: 120Torque g/cm: 1071 |
| Brand | Tamiya |
|---|---|
| Product Type | Hobbies, Models & STEM > Plastic Model Kits |
| Weight | 0.15 kg |
| Warranty |
|---|
