Features
DR-07XP
2-Channel 32-Bit Float Handheld Recorder With USB-C Interface and Adjustable Mics
- 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
- Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
- Stereo AB/XY condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours operation with 2 x AA alkaline batteries
Pro-Quality Portable Recording, Simplified
The TASCAM DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.
Recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3.

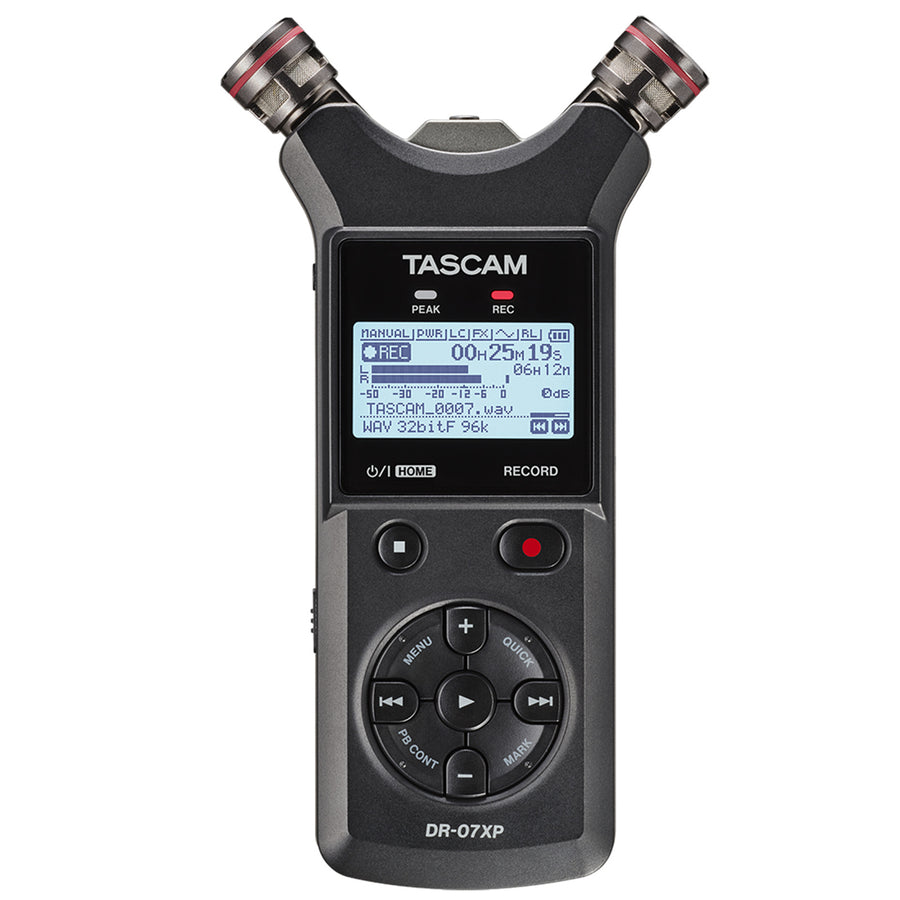

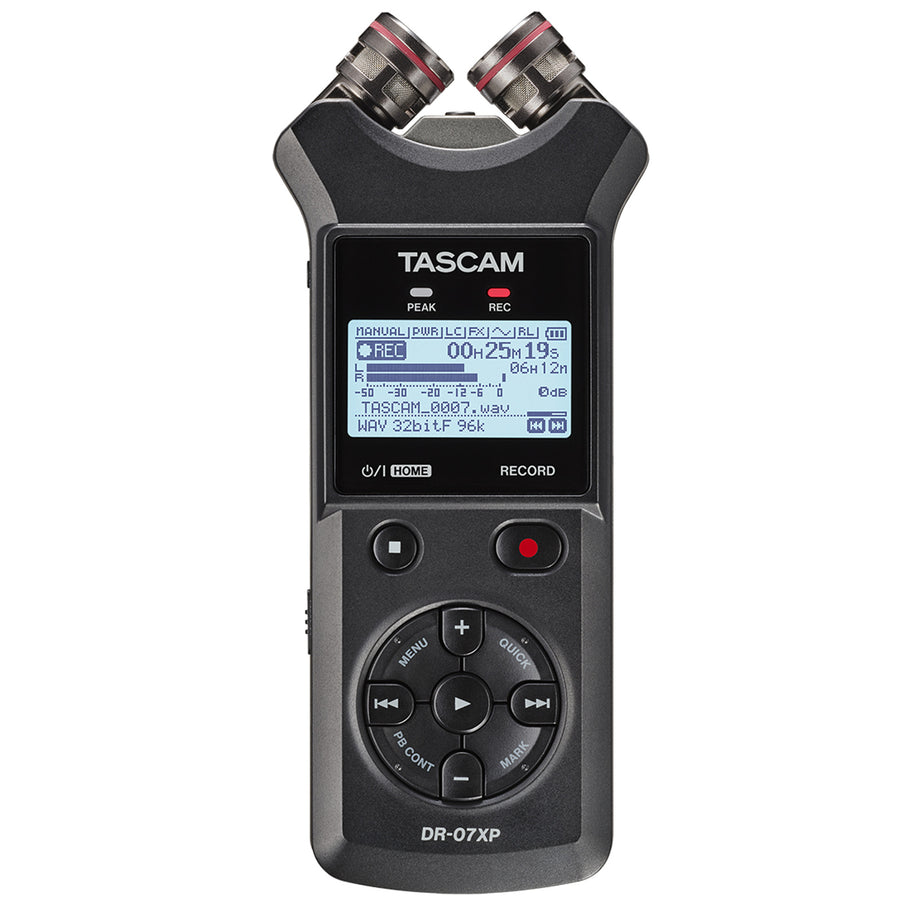

Adjustable Stereo Condenser Microphones
The DR-07XP features unidirectional stereo condenser microphones with adjustable A/B or X/Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.

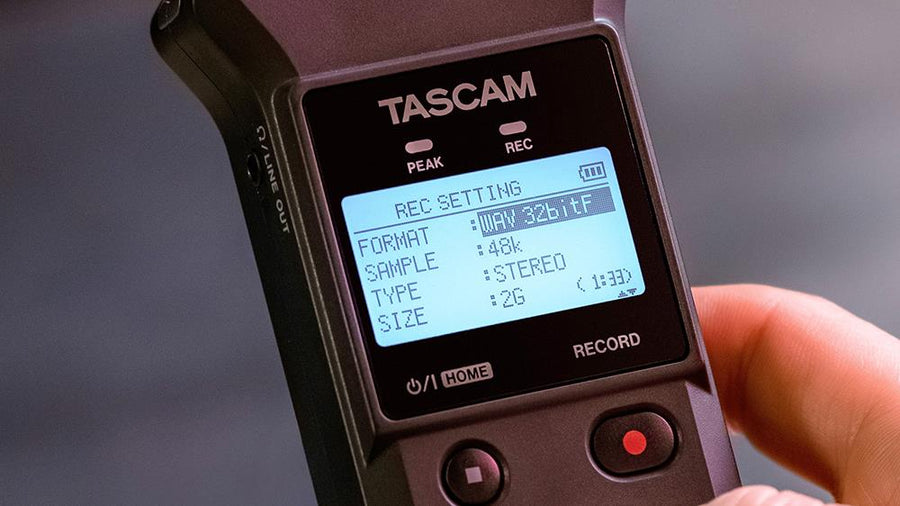

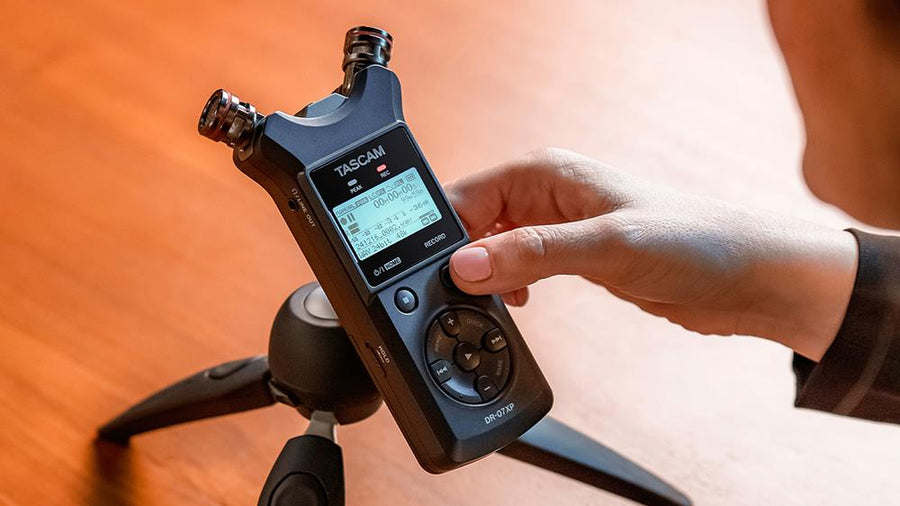

Simplicity in Your Palm
With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

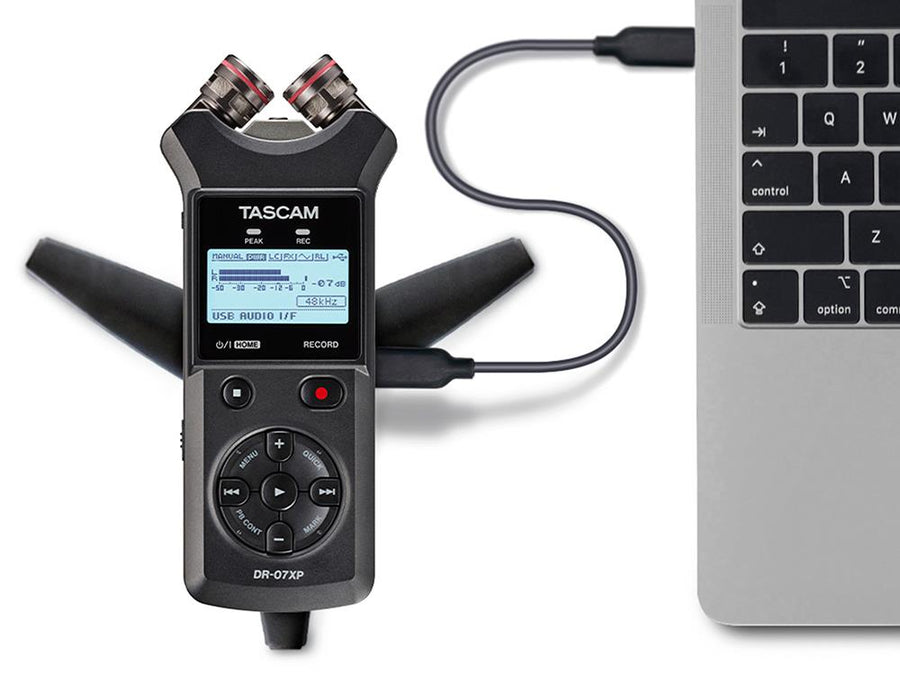

Your Portable Recording Studio
The DR-07XP isn't only a powerful portable recorder - it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians
The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On Location
With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from four different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

Record Anything, Anywhere

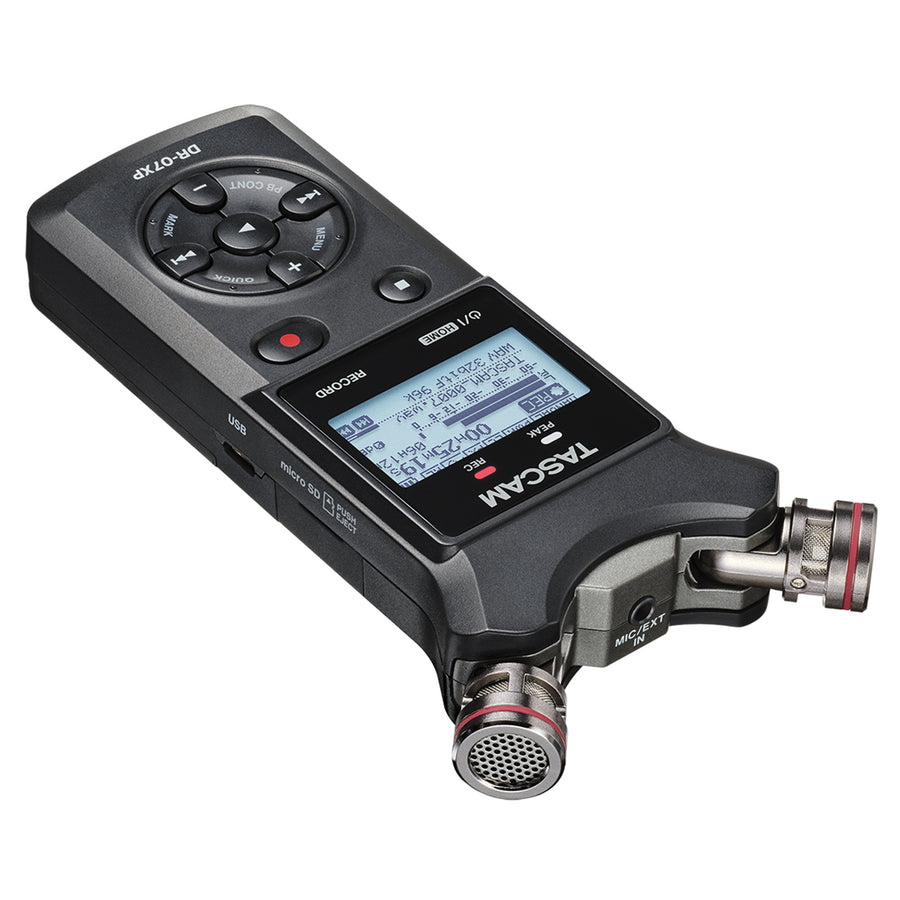

From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.
Specifications
Technical Specifications
| Form Factor | Handheld Recorder |
|---|---|
| Number of Tracks | WAV:2 |
| Number of Input Channels | 2 (2 x Mono, 1 x Stereo) |
| Maximum Sampling Rate | 96 kHz / 32-Bit Float |
| Microphone | Built-In Cardioid Condenser Stereo Pair, A/B, X/Y Configuration |
| Number of Microphone Inputs | 1 |
| Built-In Speaker | Yes, 0.3 W Mono |
| Display | Monochrome LCD (Backlit) |
| Memory Card Support | microSDmicroSDHCmicroSDXC (Up to 512 GB) |
| Internal Storage | No |
| Special Features | Overdubbing, Voice Activation |
| Audio File Formats | BWF, MP3, WAV |
| Sample Rates | WAV:44.1 / 48 / 96 kHz |
| Bit Depth | 16 / 24 / 32-Bit |
| Bit Rates | 32 to 320 kb/s (Record)32 to 320 kb/s + VBR (Playback) |
| Signal Processing & FX | Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb |
| Timecode Support | NoRecording TimeWAV 44.1 kHz/16-Bit:789 Hrs (Stereo)WAV 48 kHz/16-Bit:526 Hrs (Stereo)WAV 96 kHz/16-Bit:362 Hrs (Stereo)WAV 44.1 kHz/24-Bit:526 Hrs (Stereo)WAV 48 kHz/24-Bit:724 Hrs (Stereo)WAV 96 kHz/24-Bit:241 Hrs (Stereo)WAV 44.1 kHz/32-Bit:394 HrsWAV 48 kHz/32-Bit:362 HrsWAV 96 kHz/32-Bit:181 Hrs |
| Included Software | No |
| Analog I/O | 1x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output |
| Digital I/O | No |
| Phantom Power | No |
| Plug-In Power | Yes |
| System Connection | 1x USB-C (1.1, 2.0) |
| Audio Interface Capability | Stereo Only |
| Wireless | No |
| Mobile App Compatible | No |
| Frequency Response | 20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA)20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA)20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA) |
| Max Input Level | Mic/Line Inputs:-4 dBV |
| Max Output Level | Line Outputs:+2 dBV |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Impedance | Mic/Line Inputs:=18 Kilohms (Plug-In Power Off)=2 Kilohms (Plug-In Power On) |
| THD+N | =0.01% |
| Microphone Max SPL | 125 dB SPL |
| Power Options | Battery, USB Bus Power, AC/DC Power Adapter |
| Battery Type | 2x AA (Not Included) |
| Approximate Battery Life | WAV 44.1 kHz/16-Bit:17.5 Hours (Alkaline, 2 Channels, Recording)WAV 96 kHz/24-Bit:15.5 Hours (Alkaline, 2 Channels, Recording) |
| AC/DC Power Adapter | 5 VDC at 0.5 A (Not Included) |
| Input Power | 5 VDC |
| Included Accessories | No |
| Mounting Options | 1/4"-20 Female |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | 2.4 x 5.6 x 1.1" / 60.5 x 142.3 x 27 mm |
| Weight | 4.4 oz / 126 g (without Batteries)6.1 oz / 174 g (with Batteries) |
