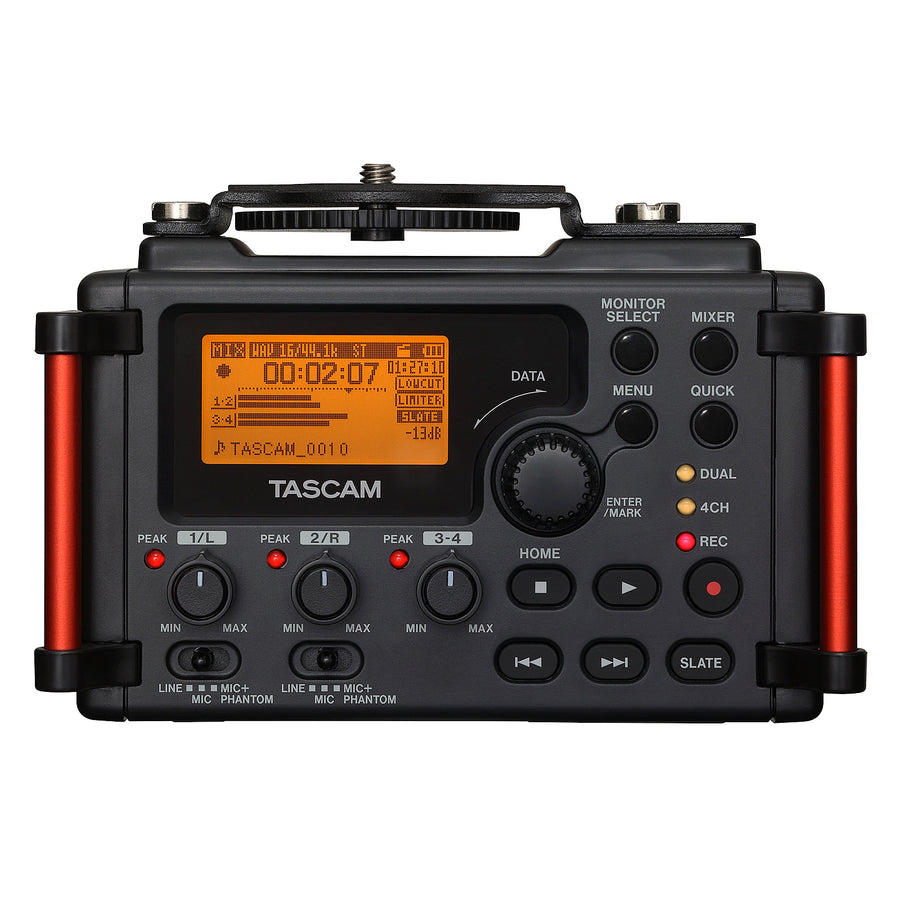

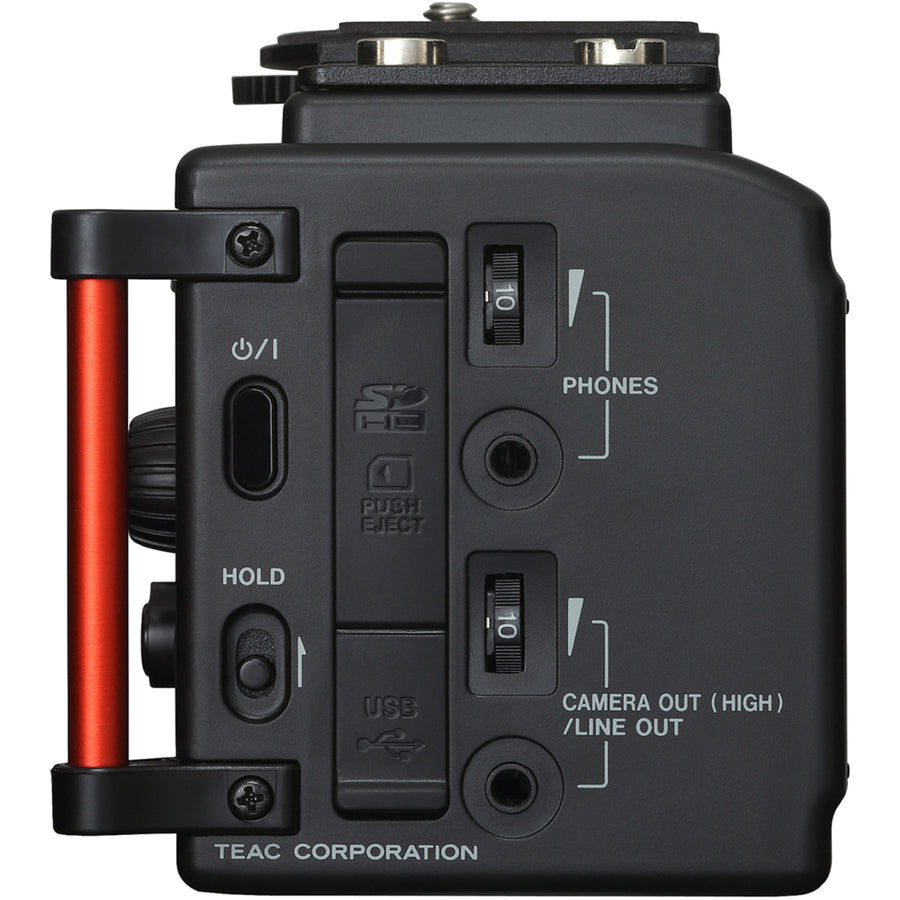

TASCAMDR60DMK2 - TASCAM DR60DMK2 PORTABLE 4-TRACK RECORDER /MIXER FOR PRODUCTION AUDIO
TASCAMDR60DMK2 - TASCAM DR60DMK2 PORTABLE 4-TRACK RECORDER /MIXER FOR PRODUCTION AUDIO
Features
The DR-60D MKII is a compact 4-track audio recorder for dedicated use with a digital single-lens reflex (DSLR) or digital single-lens mirrorless (DSLM) camera as a video system. It can be mounted directly to the camera and offers various audio inputs and outputs to allow the recording of high-resolution audio material in parallel to, but separated from the camera and its video data.
The recorder features Tascam original HDDA microphone preamps which are known for high S/N ratio, low input-referred noise and low distortion. Recordings can be made at 44.1/48/96 kHz, 16/24-bit in WAV or BWF format. In addition to ordinary stereo recording, it is possible to record up to four channels simultaneously which can then be mixed down to a stereo signal. Recording levels can be adjusted independently for inputs 1, 2 and 3-4 and the Dual Recording function allows two files to be recorded in parallel at different levels.
The DR-60D MKII can output high-quality audio to a DSLR/DSLM camera to be recorded there as a reference track, and a camera input enables convenient monitoring of audio sent from a DSLR camera. Mid-side decoding, slate tone functions (automatic/manual), selectable time delay and other functions for convenient recording are also available.
Specifications
Technical Specifications
| Recording media | SD card (64 MB - 2 GB)SDHC card (4-32 GB) |
|---|---|
| Audio file compatibility | WAV: 44.1/48/96 kHz, 16/24-bitBWF (Broadcast Wave Format): 44.1/48/96kHz, 16/24-bit |
| Number of channels | 4 channels (stereo x 2) |
| Mic/Line input 1/L, 2/R (switchable phantom power) | XLR-3-316.3-mm standard TRS Jack |
| Input switch set to | MIC or MIC+PHANTOM |
| Input impedance | 2 k |
| Phantom Power | 48 V ±4 V (10 mA/channel) or24 V ±4 V (10 mA/channel) |
| Maximum input level | 0 dBu |
| Minimum input level | -72 dBu |
| Mic input gain (input level knob at maximum) | LOW: +11 dBMID: +36 dBHIGH: +52 dBHIGH+PLUS: +64 dB |
| Input switch set to | LINE |
| Input impedance | 10 k or higher |
| Nominal input level | +4 dBu |
| Maximum input level | +24 dBu |
| Mic/Line input 3-4 (supports plug-in power) | 3.5-mm stereo mini jack |
| Input impedance | 10 k |
| Maximum input level | +10 dBV |
| Minimum input level | -50 dBV |
| Mic input gain (input level knob at maximum) | LOW: +3 dBHIGH: +26 dBHIGH+PLUS: +38 dB |
| CAMERA IN jack | 3.5-mm stereo mini jack |
| Input impedance | 10 k |
| Nominal input level | -10 dBV |
| Maximum input level | +6 dBV |
| CAMERA OUT (LOW) jack | 3.5-mm stereo mini jack |
| Output impedance | 200 |
| Nominal output level | -50 dBV |
| Maximum output level | -30 dBV |
| Headphones output | 3.5-mm stereo mini jack |
| Maximum output power | 50 mW + 50 mW |
| CAMERA OUT (HIGH)/LINE OUT jack | 3.5-mm stereo mini jack |
| Output impedance | 200 |
| Nominal output level | -10 dBV |
| Maximum output level | +10 dBV |
| USB | USB Mini-B Type |
| Format | USB 2.0 HIGH SPEED mass storage class |
| REMOTE jack | 2.5-mm TRS jack |
| Frequency response | 20 Hz - 20 kHz, +0.5/-2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA)20 Hz - 40 kHz, +0.5/-3 dB (LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA) |
| Distortion | 0.02% or less (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) |
| S/N ratio | 92 dB or more (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) |
| Equivalent input noise | -120 dBu or less |
| Note for JEITA | Conforming to JEITA CP-2150 |
| Windows | Pentium 300 MHz or faster128 MB or more memory |
| Mac | Power PC, iMac, G3, G4 266 MHz or faster64 MB or more memory |
| Recommended USB port | USB 2.0 |
| Recommended USB host controller | Intel chipset |
| Supported operating systems | Windows XP, Windows Vista, Windows 7, Windows 8 (including Windows 8.1), Mac OS X 10.2 or later |
| Power supply | Four AA batteries (Alkaline or Ni-MH)USB bus power supplied from a computerAC adaptor (TASCAM PS-P515U, sold separately)External battery pack (TASCAM BP-6AA, sold separately) |
| Power consumption | 5.4 W (maximum) |
| Dimensions (W × H × D) | 133 mm × 93 mm × 78 mm (with the top adapter attached) |
| Weight | 510 g (without batteries) |
| Operating temperature range | 0-40 °C |
