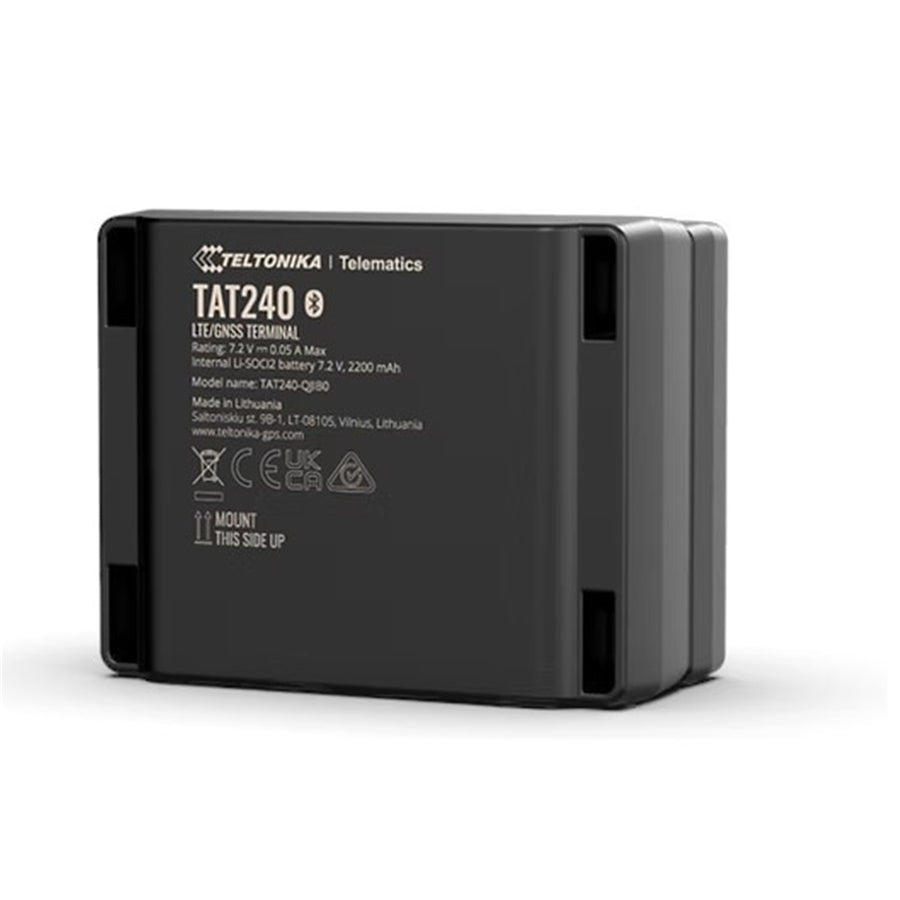

TAT240 - Teltonika TAT240 Tamper-proof Asset tracker with 4G LTE Cat 1 Connectivity

Features

The TAT240 is a tamper-proof, 4G LTE (CAT1), 3G/2G fallback, GNSS, Bluetooth® device for asset tracking and maximum protection against thefts of containers, and trailers, as well as it could be used in a wide range of applications from valuable goods to tools tracking. The tamper detection feature of TAT240 ensures significantly improved protection of the assets.

- Waterproof and dust resistant for outdoor integrations (IP68)
- Tamper Detection
- Easy Magnetic Mounting
- Define your own data sending frequency based on whether your assets are moving

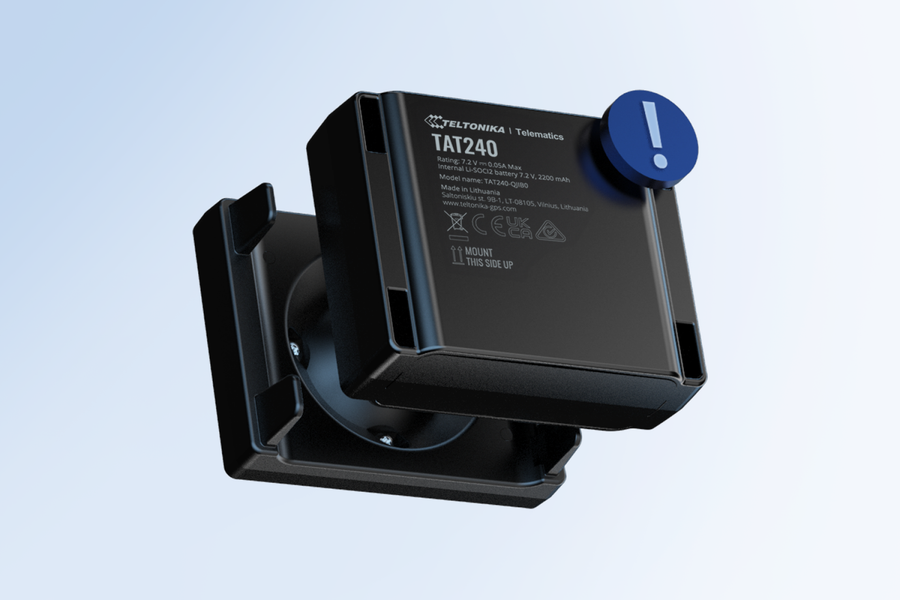

Tamper alerts for maximum safety

Reliable magnetic tamper detection ensures the topmost safety of your assets.

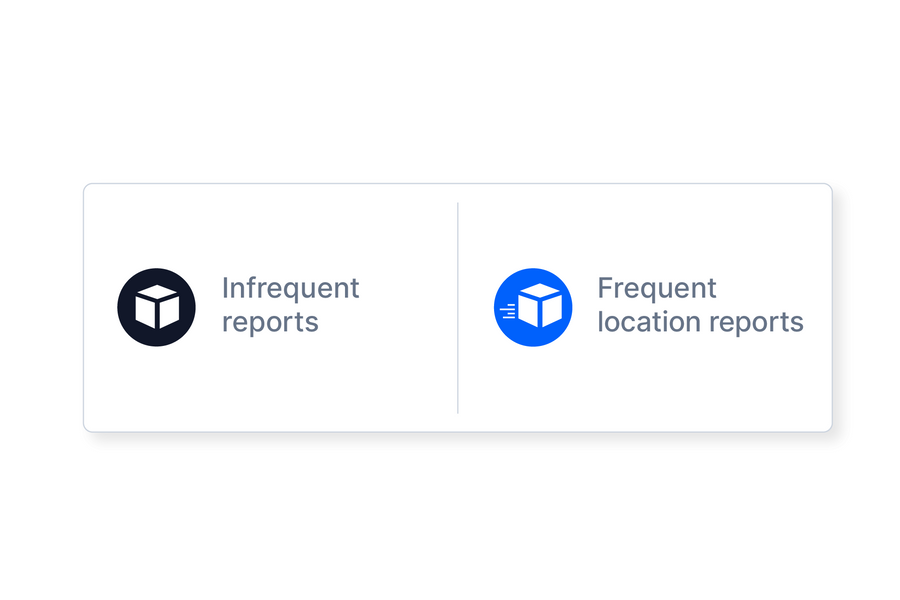

Movement-based periodic reports

Define your own data sending frequency based on whether your assets are moving.

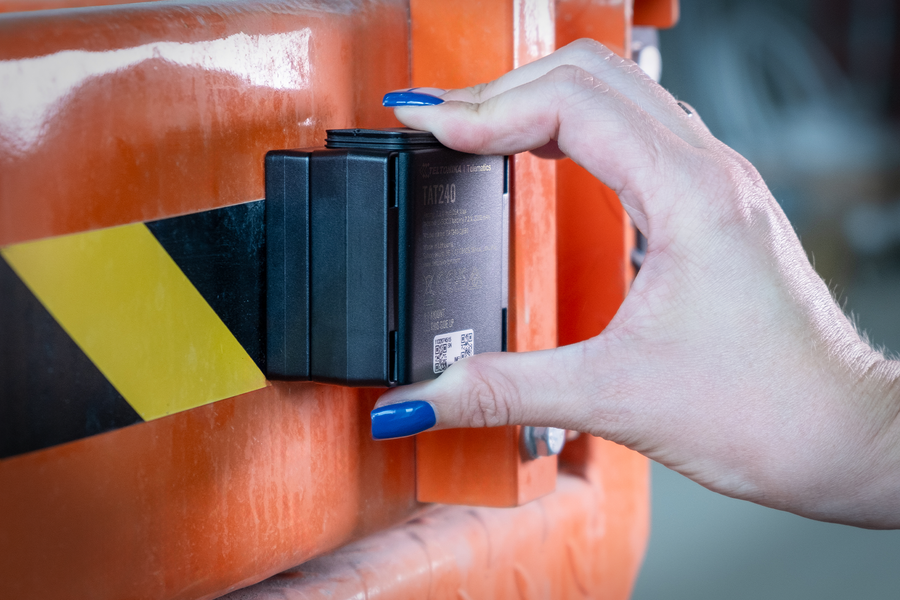

Easy magnetic mounting

Attach the device firmly and effortlessly with the included magnetic mounting holder.

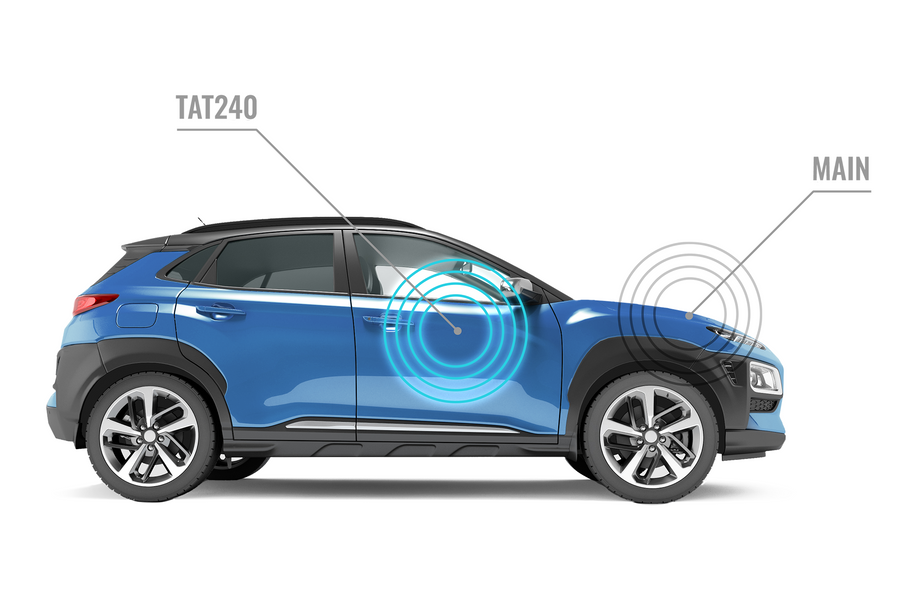

Backup tracking the easy way

Ideal to be used as a backup tracker - easy to hide anywhere in a vehicle thanks to a compact size, while sleep mode protects against detecting tracker by thieves.

Specifications

Technical Specifications

Product Code	TAT240 (TAT240R6BP01)
Name	TAT240-QKIB0: Quectel EG915U-LA with Teltonika TM2500
Technology	LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE
Region	EU, MEA, APAC
GNSS	L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS, Optional modes available with custom firmware applications, for more information contact your sales manager.
GNSS Receiver	33 tracking channels, 99 acquisition channels
Tracking sensitivity	-165 dBM
Position Accuracy	< 2.5 m CEP
4G LTE bands	TAT240-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Data transfer	LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL), GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power	Class 4 for GSM850/900: 33±2dBM, Class 1 for GSM1800/1900: 30±2dBM, Class 3 for LTE-FDD: 23±2dBM
Data support	SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS, MQTT**)
Internal battery	Extremely low self-discharge Li-SOCl2 swappable, non-rechargeable battery, 7,2V 2200mAh
Battery life	Up to 5 years (when used as a backup tracker only via Bluetooth®), Up to 4 years (1 LBS - cell towers report per day), Up to 3 years (1 GNSS report per day)*
Bluetooth	4.0 + LE
Supported BLE peripherals	EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors support
Dimensions	78 x 63 x 28 mm (L x W x H)
Weight	115 g (with 2 cells battery)
Operating temperature (with battery)	-35 °C to +75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP68
Battery discharge temperature	-60 °C to +85 °C
GNSS antenna	Internal High Gain
Cellular antenna	Internal High Gain
USB	2.0 Micro-USB
LED indication	1 status LED light
SIM	Micro-SIM
Memory	128MB internal flash memory
Sensors	Accelerometer
Scenarios	Enhanced tamper detection, accelerometer wake up, GNSS, Bluetooth® sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor
Sleep modes	Single custom sleep mode
Configuration and firmware update	FOTA WEB, Teltonika Configurator (USB)
SMS	Configuration, Events, Debug
GPRS commands	Configuration, Debug
Time Synchronization	GNSS, NITZ, NTP
Regulatory	CE/RED, E-Mark, RCM, UKCA, RoHS, CITC, TRA
