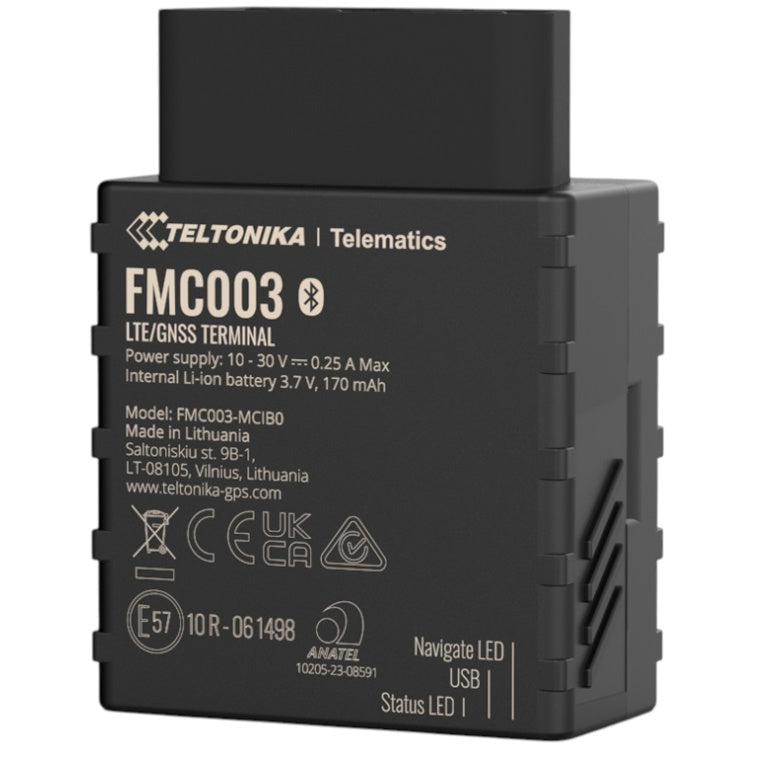

Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading
Features
Teltonika FMC003 4G - Reliable 4G (LTE Cat 1) connection with fallback to 2G (GSM) network
Teltonika FMC003 is a small plug and play device with LTE CAT 1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMC003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you do not need to guess no more, now you know what data can be read from a specific vehicle. It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. Device supports various Bluetooth® LE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth® which expands its already rich set of features.
- Device supports LTE CAT 1 connectivity, which allows low-power wide area technologies to be used
- Available list of vehicles with OEM parameters to be read
- Standard OBDII data reading from vehicle ECU
- Bluetooth for external devices and Low Energy Sensors
Reading OBD OEM parameters
Get real odometer & real fuel level data.
Effortless Plug & Play installation
Simply plug the device in OBD-II port and start tracking.
Electric Vehicle Support
Bringing new value and expanding usage scenarios with more than 150 supported vehicles in the EV market.
Supported vehicle and data list
Know in advance what vehicle parameters are available to optimise your fleet operations.
Specifications
Technical Specifications
| Technology | LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH |
|---|---|
| Frequency Bands | 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B20, B28, 4G (LTE-TDD): B40; 2G (GSM): B2, B3, B5, B8 |
| Transmit Power | Class 4 for GSM850/900: 23±2dBm, Class 1 for GSM1800/1900: 20±2dBm, Class 3 for LTE-TDD: 23±2.7dBm, Class 3 for LTE-FDD: 23±2.7dBm |
| Data Support | SMS (text/data) |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| GNSS Receiver | 33 tracking channel, 99 acquisition channel |
| Tracking Sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Hot Start | < 1 s |
| Warm Start | < 25 s |
| Cold Start | < 35 s |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Input Voltage Range | 10-30 V DC with overvoltage and reverse polarity protection |
| Internal Back-up Battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Power Consumption | At 12V < 3 mA (Ultra Deep Sleep), At 12V < 5 mA (Deep Sleep), At 12V < 16 mA (Online Deep Sleep), At 12V < 18 mA (GPS Sleep), At 12V < 33 mA (nominal) |
| Bluetooth | 4.0 + LE |
| Supported Peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support |
| OBD iInterface Data | K-Line, CAN bus data |
| Data Reading | Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (fast init, 10.4 kbaud), ISO 15765-4 CAN (11 bit ID, 250 kbaud), ISO 15765-4 CAN (11 bit ID, 500 kbaud), ISO 15765-4 CAN (29 bit ID, 250 kbaud), ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| Interface Connection | OBDII Socket |
| GNSS Antenna | Internal High Gain |
| Cellular Antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED Indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep Modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and Firmware Update | FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth) |
| SMS | Configuration, Events, Debug |
| GPRS Commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel Monitoring | OBD II |
| Ignition Detection | Accelerometer, External Power Voltage, Engine RPM |
| Weight | 63 g |
| Dimensions (L x W x H) | 67.2 x 49.6 x 25 mm |
| Regulatory | CE/RED/UKCA, E-Mark, EAC, RoHS, REACH, RCM, SDPPI POSTEL, CITC |
| Brand | Teltonika |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Trackers |
| Weight | 0.5 kg |
