Teltonika

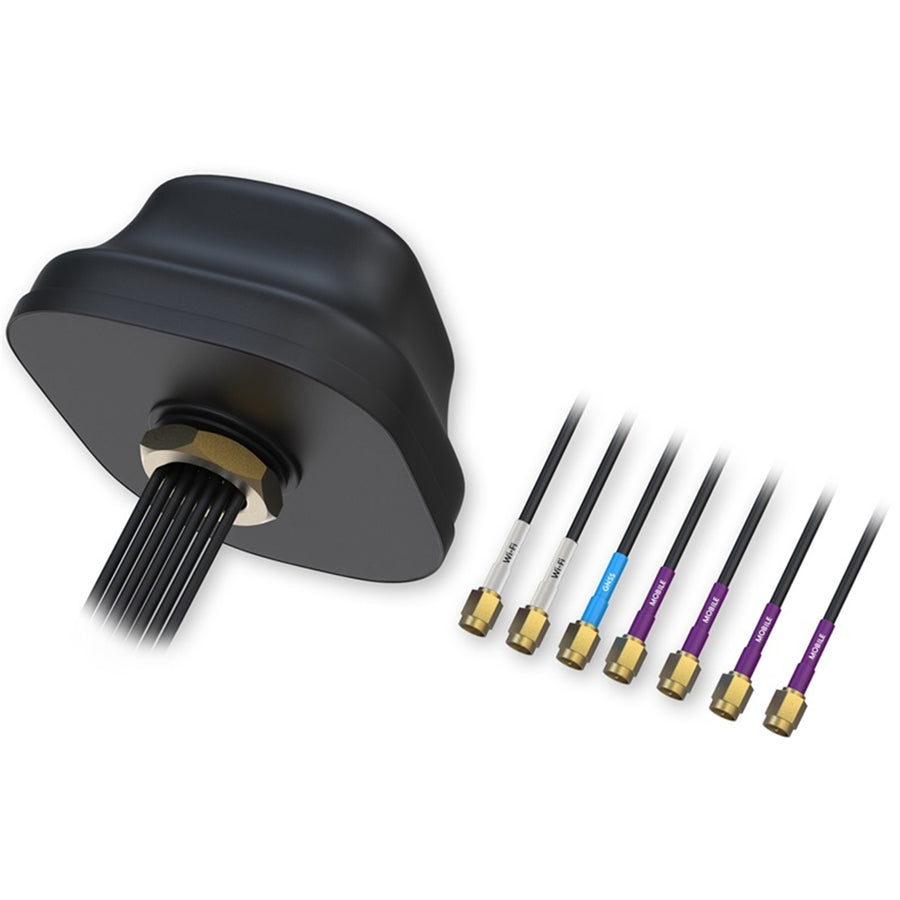

Teltonika PR1KC640 - 5G MIMO Mobile/GNSS/WiFiRoof SMA Antenna
$352.16
Free shipping over $299
Genuine product
7-day returns
Teltonika PR1KC640 - 5G MIMO Mobile/GNSS/WiFiRoof SMA Antenna
Features
Teltonika 5G COMBO MIMO Mobile/GNSS/WIFI ROOF SMA Antenna
Specifications
Technical Specifications
| MPN | PR1KC640 |
|---|---|
| 5G Frequency Range | 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz |
| 5G Polarization | Linear |
| 5G Gain | 4.0 dB |
| 5G V.S.W.R | Less than3.0 |
| 5G Impedance | 50 Ohm |
| 5G Connector type and count | 4x SMA Male |
| GNSS Frequency range | 1164 - 1300 / 1559 - 1610 MHz |
| GNSS Polarization | RHCP |
| GNSS Supply voltage | 3 - 12 VD |
| GNSS LNA Gain | 40 ± 2 dB |
| GNSS V.S.W.R | =2.0 |
| GNSS Impedance | 50 Ohm |
| GNSS Current Consumption | =60 mA |
| GNSS Connector type and count | SMA Male |
| Wi-Fi Frequency range | 2400 - 2483.5 / 4900 - 5925 MHz |
| Wi-Fi Polarization | Linear |
| Wi-Fi Gain | 4.0 dBi |
| Wi-Fi V.S.W.R | =2.5 |
| Wi-Fi Impedance | 50 Ohm |
| Wi-Fi Connector type and count | 2x RP SMA Male |
| Mounting method | Screw |
| Radome ingress projection rating | IP67 (exclude cable outlet) |
| Radome material | UV-Resistant ABS/PC |
| Weight | 960 ± 30 g |
| Housing dimensions | 189 x 182 x 85 mm |
| Cable | 7 x LMR100, 3000 mm |
| Recomended mounting dimensions | Hole ø28 mm, panel thickness MAX 8 mm |
| Operating temperature | -40 °C - +85 ° |
| RoHS Compliant | Yes |
