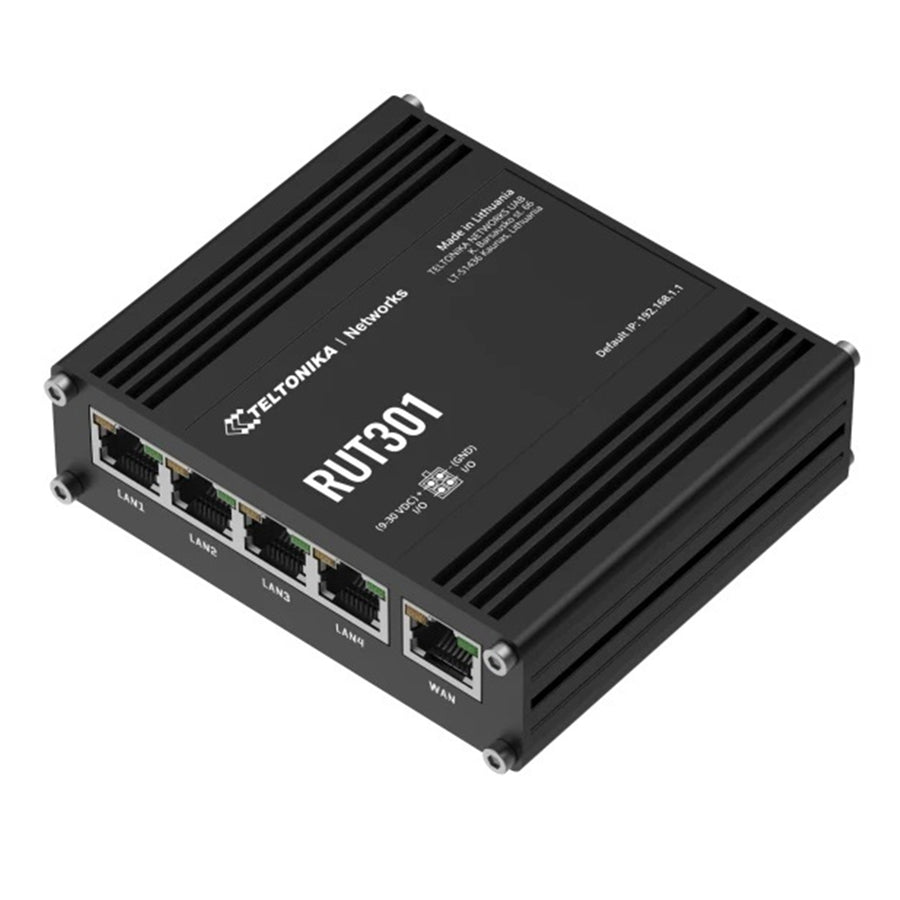

Teltonika RUT301 Industrial Ethernet Router
Teltonika

Teltonika RUT301 Industrial Ethernet Router

SKU: RUT301 ● In Stock
$91.17$103.48
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.

- 5 x Ethjavascript:void("help")ernet ports (10/100 Mbps), Digital I/Os, and USB 2.0
- RMS For remote management, access & VPN services
- Pre-configured firewall and multiple VPN services
- Industrial-grade design for withstanding harsh environments

Specifications

Technical Specifications

WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed
Network topology Visual representation of your network, showing which devices are connected to which other devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
OPC UA Supported modes Client, Server (TCP)
MODBUS Yes
DATA TO SERVER HTTP(S), MQTT, Azure MQTT
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3 Supported modes Station, Outstation via TCP, USB
DLMS Support Standard protocol for utility meter data exchange, Client via TCP, USB
Teltonika Networks Web API support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP
Azure IoT Hub Allows monitoring of: Wan IP, Number of bytes send/received, Model, Manufacturer, Serial, Revision, FW version and collected data of industrial devices
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB serial NOR flash
Events Email, RMS
I/O juggler Allows to set certain I/O conditions to initiate event
Ethernet 5 x RJ45 ports, 10/100 Mbps
I/O's 2 x Digital Input, 2 x Digital Output on 4-pin power connector
Status LEDs 1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED
Power 1 x 4-pin power connector
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Operating temperature -40 °C to 75 °C

You May Also Like

Teltonika

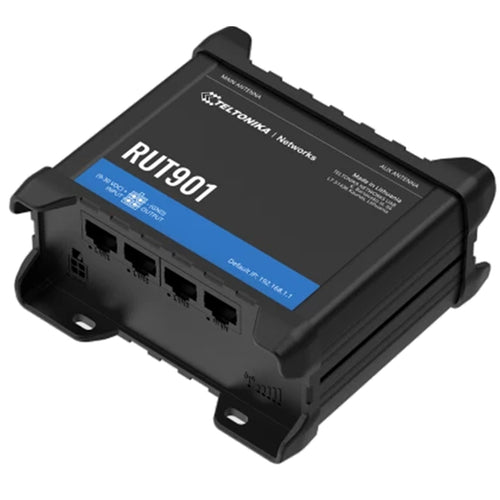

Teltonika RUT901 4G LET CAT4 N150 WiFi 4 Industrial Router

RoutingWireless, EthernetPoE++
$268.89$280.00
inc GST ▲ +GST
Teltonika

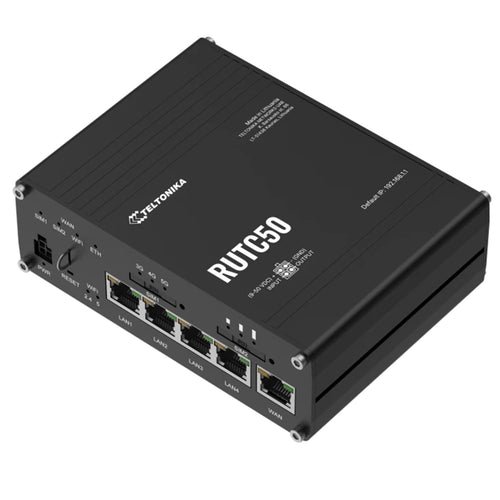

Teltonika RUTC50 5G CAT19 AX2402 Dual Band WiFi 6 Industrial Router

$1,285.26$1,387.50
inc GST ▲ +GST
Teltonika

Teltonika RUTC50 5G CAT19 AX2402 Dual Band WiFi 6 Industrial Router

$1,285.26$1,387.50
inc GST ▲ +GST
TP-Link

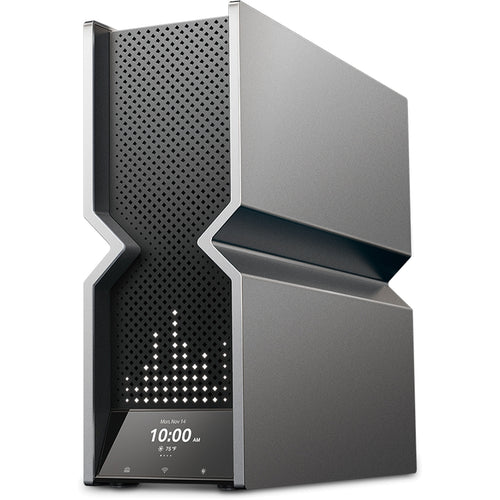

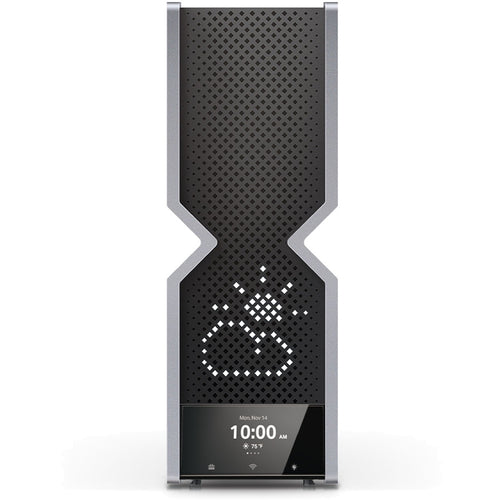

TP-Link Archer BE900 (BE24000) Quad-Band WiFi 7 Router

RoutingWi-Fi 710G
$1,609.56$1,651.30
inc GST ▲ +GST
Teltonika

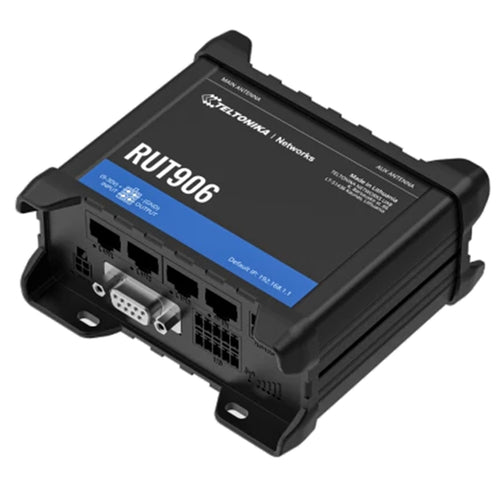

Teltonika RUT906 4G LET CAT4 N300 WiFi 4 Industrial Router
