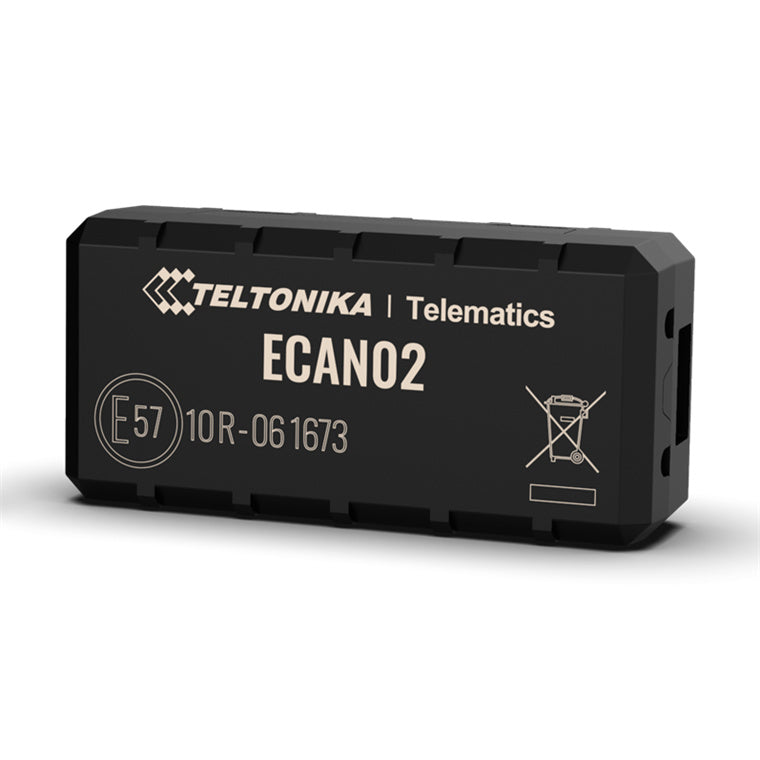

ECAN02 - Teltonika ECAN02 CAN Adapter for Contactless Access to CAN Bus Data
Features
Teltonika ECAN02 CAN Adapter for Contactless Access to CAN Bus Data. Now the device reads up to 100% of available CAN data in 1,000 kb/s. Know exactly if you had installed the adapter properly to define when the data is being transmitted with the status LED's. No physical wire connections, the original wires are intact to make sure you keep the car warranty.
Supported by LV-CAN200, ALL-CAN300, FMX650, FMB140, FMB240, FMX150, FMX250.
- New, stronger, and more robust casing, which improves the longevity of the device
- ECAN02 collects vehicle data from CAN bus without damaging the wires
- Powered from on-board power source
- Reads the signals through the isolation of CAN bus wires
- Easy to install and operate
- CAN-BUS speeds from 33 to 1000 kb/s
- Automatically adjusts signal level and speed
Specifications
Technical Specifications
| Input voltage range | 10-30 V DC |
|---|---|
| Power consumption | At 12 V < 1,7 mA (Standby), At 12 V < 7,5 mA (Working) |
| Supported by | LV-CAN200, ALL-CAN300, FMX650, FMB140, FMB240, FMX150, FMX250 |
| Operating temperature (without battery) | -40°C to +85°C |
| Operating humidity | Max 85% non-condensing |
| Dimensions | 39.0 x 19.0 x 12.0 mm (L x W x H) |
| Weight | 16,1 g |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.07 kg |
| Warranty |
|---|
