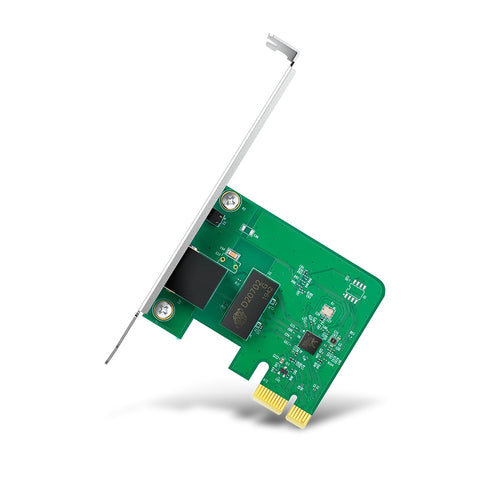

TG-3468 - TP-Link 32-bit Gigabit PCIe Network Adapter, Realtek RTL8168B Chipset
You May Also Like
Belkin USB-C to Ethernet + Charge Adapter - 100W Adapter (100W Passthrough Power for Connected Devices, 1000 Mbps Ethernet Speeds) Ethernet Adapter
Ubiquiti UFiber Active Ethernet Fibre to Ethernet Converter
StarTech.com PEX10000SFPI 10G Open SFP+ Network Card - PCI Express
StarTech.com USB31000S - USB 3.0 to Ethernet Adapter
Unitek Y-3470 - USB-A 3.0 Gigabit Ethernet Converter. IPv4/v6 COE Wake-on-LAN. duplex.
Features
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
- Wake-on-LAN supporting
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
- Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
- Supports power down/link down power saving

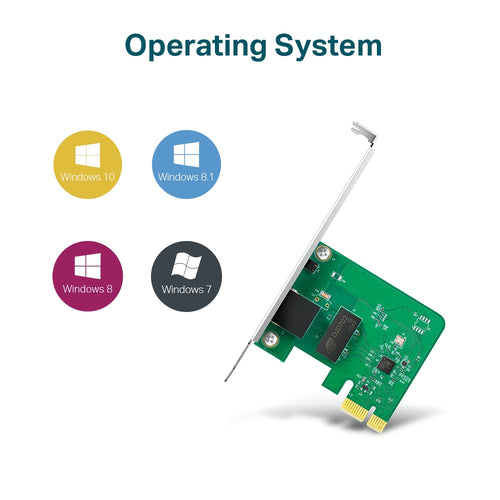

- DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
Specifications
Technical Specifications
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p CSMA/CD, TCP/IP |
|---|---|
| Interface | 32-bit PCIe1 10/100/1000Mbps RJ45 port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| Data Rates | 10/100/1000Mbps for Half-Duplex mode20/200/2000Mbps for Full-Duplex mode |
| LED Indicator | 1000Mbps Link/Act, 100Mbps Link/Act, 10 Link/Act, Duplex |
| Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
| Certification | CE, FCC, RoHS |
| Package Contents | - Network Adapter- Resource CD- Quick Installation Guide- Standard PCI bracket- Low profile bracket |
| System Requirements | Win 98SE/Me/NT/2000/XP/Vista/7,Linux/Novell Netware |
| Operating Temperature | 0~40 (32~104) |
| Storage Temperature | -40~70 (-40~158) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Network Cards |
| Weight | 0.072 kg |
| Warranty |
|---|
