TL-CPE610 - TP-Link CPE610 5GHz 300Mbps 29dB Outdoor CPE
TL-CPE610 - TP-Link CPE610 5GHz 300Mbps 29dB Outdoor CPE
Overview
2×2 MIMO
MAXtream TDMA
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

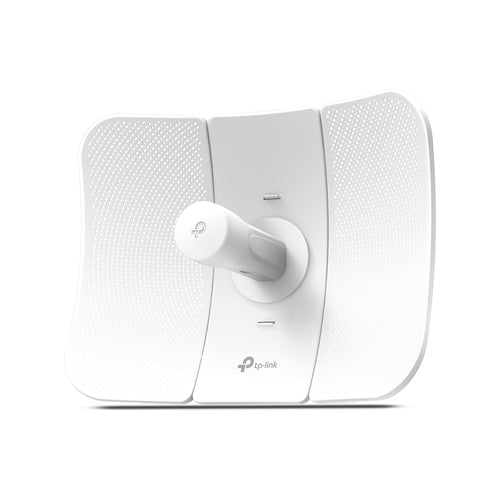

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

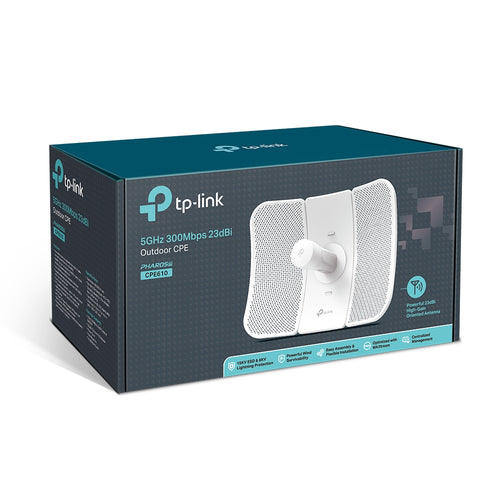

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device iscovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method, and allows professionals to access more detailed configurations.
- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Technical Specifications
| Frequency band | 5.15 - 5.85 |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Antenna gain (5 GHz) | 23 |
| Horizontal beam width | 9 |
| Vertical beam width | 7 |
| Built-in processor | Y |
| Processor frequency | 560 |
| Internal memory | 64 |
| Internal memory type | DDR2 |
| Flash memory | 8 |
| Antenna gain level (max) | 27 |
| Antenna type | Directional antenna |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
| Power source type | PoE |
| Input voltage | 24 |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Operating temperature (T-T) | -40 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 95 |
| Package type | Box |
| Quantity per pack | 1 |
| Cables included | AC |
