TP-Link
TL-EAP603-OUTDOOR - TP-Link EAP603-Outdoor, AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
$213.00
Free shipping over $299
Genuine product
7-day returns
TL-EAP603-OUTDOOR - TP-Link EAP603-Outdoor, AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.†
- Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.*
- PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included)
- Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.§
Technical Specifications
| 2.4 GHz | Y |
|---|---|
| 5 GHz | Y |
| 6 GHz | N |
| Maximum data transfer rate | 1800 |
| Maximum data transfer rate (2.4 GHz) | 573 |
| Maximum data transfer rate (5 GHz) | 1201 |
| Ethernet LAN data rates | 10,100,1000 |
| Networking standards | IEEE 802.11a,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.3at |
| Bluetooth | Y |
| Maximum outdoor range | 300 |
| Security algorithms | EAP,EAP-FAST,EAP-GTC,EAP-MD5,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,PEAP,PPSK,SNMP,SSH,WPA-Enterprise,WPA-Personal,WPA2-Enterprise,WPA2-Personal,WPA3-Enterprise,WPA3-Personal |
| MAC address filtering | Y |
| IP address filtering | Y |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Guest access | Y |
| Remote Authentication Dial-In User Service (RADIUS) | Y |
| Access Control List (ACL) | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| Backup function | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 42.5 - 57 |
| Input current | 0.36 |
| Power consumption (max) | 4.8 |
| Placement | Pole,Wall |
| Product colour | White |
| International Protection (IP) code | IP65, IP66 |
| Antenna type | Internal & External |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
| Width | 230 |
| Depth | 207.5 |
| Height | 69.7 |
| PoE adapter included | Y |
| Mounting kit | Y |
| Quick start guide | Y |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -30 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
🚚 7-Day Returns Policy
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | TP-Link |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
QuWireless

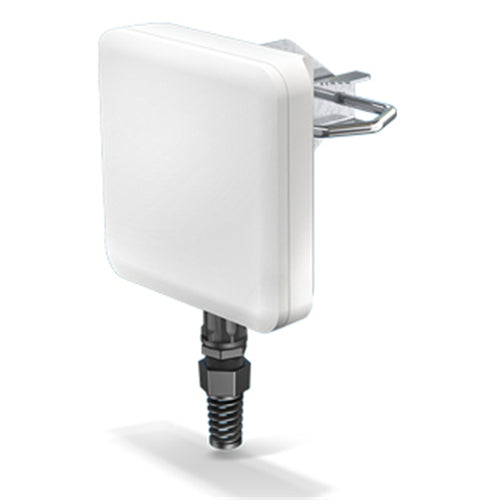

QuWireless A140I - QuMini Integrated Outdoor Enclosure / Antenna for Teltonika TRB140 Cellular Modem
