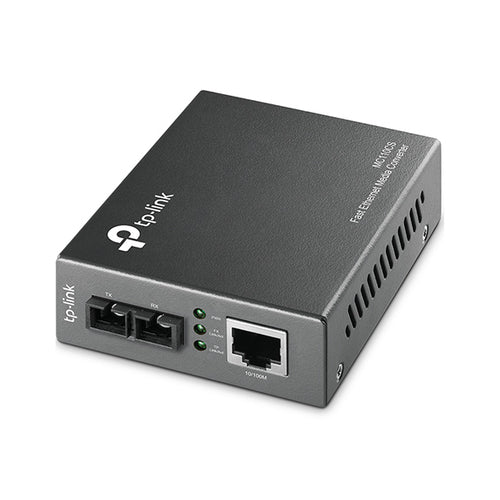

TL-MC110CS - TP-LINK MC110CS 10/100Mbps Single-Mode Media Converter

SKU: TL-MC110CS ● In Stock

$36.80

Free shipping over $299 Genuine product 7-day returns

TL-MC110CS - TP-LINK MC110CS 10/100Mbps Single-Mode Media Converter

Overview

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 12.5 miles (20km)

Technical Specifications

Maximum data transfer rate	100
Networking standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Ethernet LAN data rates	10,100
Copper ethernet cabling technology	10BASE-T,100BASE-FX,100BASE-T
Auto MDI/MDI-X	Y
Duplex system	Full,Half
Cable types supported	Cat3,Cat4,Cat5
Maximum transfer distance	12500
Wavelength	1310
Fiber mode structure	Single-mode
Internal	N
LED indicators	Y
Product colour	Black
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power consumption (max)	2.4
Width	95
Depth	73
Height	27
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
