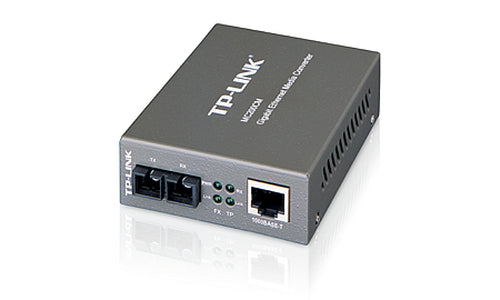

TL-MC200CM - TP-Link Gigabit Ethernet Media Converter (SC, multi-mode) Extends Up to 550 meters
TP-Link

TL-MC200CM - TP-Link Gigabit Ethernet Media Converter (SC, multi-mode) Extends Up to 550 meters

SKU: TL-MC200CM ● In Stock
$55.71
Free shipping over $299 Genuine product 7-day returns

TL-MC200CM - TP-Link Gigabit Ethernet Media Converter (SC, multi-mode) Extends Up to 550 meters

Overview

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

Technical Specifications

Maximum data transfer rate 1000
Converter input interface 100Base-TX
Networking standards IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z
Auto MDI/MDI-X Y
Maximum transfer distance 100
Fiber mode structure Multi-mode
Fiber cable diameters supported (core/cladding) 50/125
Internal N
LED indicators Link,Power
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 2
Fiber optic connector SC
DC-in jack Y
External power adapter Y
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -40 - 158
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 90
User guide Y
Manual Y
Safety FCC, CE
Dimensions (WxDxH) 94.5 x 73 x 27
Operating temperature (T-T) 32 - 104
