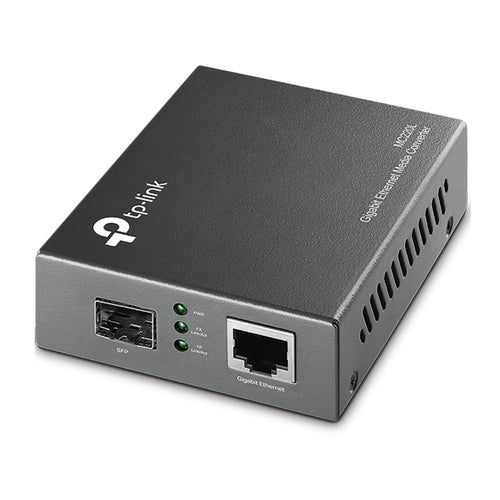

TL-MC220L - TP-Link 1000M RJ45 to 1000M single-mode LC fiber Converter,  SFP slot supporting MiniGBIC modules
TP-Link

TL-MC220L - TP-Link 1000M RJ45 to 1000M single-mode LC fiber Converter,  SFP slot supporting MiniGBIC modules

SKU: TL-MC220L ● In Stock
$32.07
Free shipping over $299 Genuine product 7-day returns

TL-MC220L - TP-Link 1000M RJ45 to 1000M single-mode LC fiber Converter,  SFP slot supporting MiniGBIC modules

Overview

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.

  • 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • FX port supports hot-swappable

Technical Specifications

Maximum data transfer rate 1000
Networking standards IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000
Auto MDI/MDI-X Y
Duplex system Full,Half
Cable types supported Cat5,Cat5e,Cat6
Maximum transfer distance 10000
Fiber mode structure Multi-mode,Single-mode
Internal N
LED indicators Y
Product colour Black
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector SFP
Power consumption (max) 1.7
Width 94
Depth 73
Height 27
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -40 - 70
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 90
Package width 65
Package depth 204
Package height 65
Package weight 440
Compliance certificates RoHS
Harmonized System (HS) code 85176990
