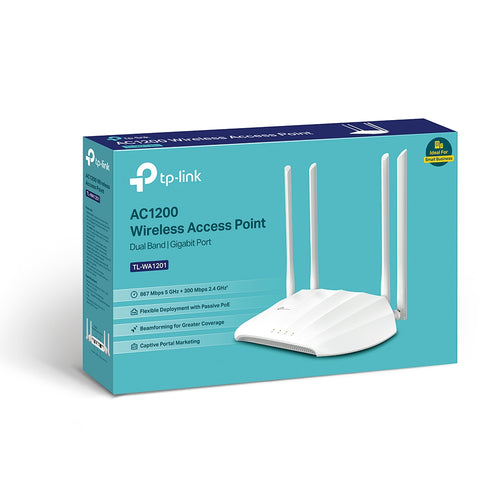

TL-WA1201 - TP-Link AC1200 Wireless Access Point
TL-WA1201 - TP-Link AC1200 Wireless Access Point
TL-WA1201 - TP-Link AC1200 Wireless Access Point
TP-Link

TL-WA1201 - TP-Link AC1200 Wireless Access Point

SKU: TL-WA1201 ● In Stock
$67.25
Free shipping over $299 Genuine product 7-day returns

TL-WA1201 - TP-Link AC1200 Wireless Access Point

  • AC1200 Dual-Band Wi-Fi – Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz
  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs
  • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
  • Captive Portal – Offers a designed portal page for heightened security and marketing

Technical Specifications

2.4 GHz Y
5 GHz Y
6 GHz N
Maximum data transfer rate 867
Maximum data transfer rate (2.4 GHz) 300
Maximum data transfer rate (5 GHz) 867
Ethernet LAN data rates 10,100,1000
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
MIMO Y
MIMO type Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME) Y
VLAN support Y
Virtual LAN features Multicast VLAN
Quality of Service (QoS) support Y
Transmitting power (CE) 20 - 23
Transmitting power (FCC) 30
Security algorithms 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Service Set Identifier (SSID) features Multiple SSIDs
Auto Wireless Distribution System (WDS) Y
Access Control List (ACL) Y
Universal Plug and Play (UPnP) Y
DHCP server Y
DHCP client Y
IPv4 & IPv6 features Dual stack IPv4/IPv6
Ethernet LAN (RJ-45) ports 1
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) type supported Active PoE
Output voltage 12
Output current 1.5
Placement Table
Product colour White
On/off switch Y
Reset button Y
WPS push button Y
Antenna type External
Antennas quantity 4
Compatible operating systems Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Compliance certificates RoHS,Federal Communications Commission (FCC),CE
Width 225
Depth 145.5
Height 37
Package width 400
Package depth 255
Package height 69
Package weight 860
Quantity per pack 1
AC adapter included Y
PoE adapter included Y
Cables included LAN (RJ-45)
Quick start guide Y
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -40 - 70
Storage relative humidity (H-H) 10 - 90
Sustainability compliance Y
