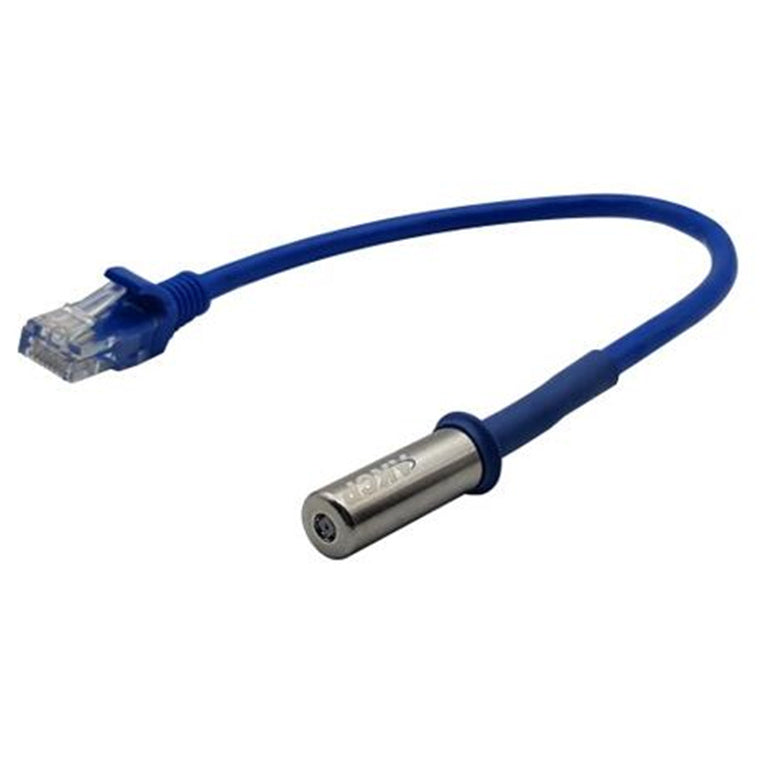

TMP01-NIST2 - SNMP Temperature Sensor on 30cm lead (AKCP)
TMP01-NIST2 - SNMP Temperature Sensor on 30cm lead (AKCP)
Features
SNMP Temperature Sensor
Remote Monitoring with the AKCP Temperature Sensor. Ideal for Data Center Monitoring or anytime a temperature sensor is needed. Network-enabled SNMP temperature sensor with calibration check.
Designed to record accurate temperature sensor data it is ideal for giving advanced warnings of temperature fluctuations that can potentially damage sensitive equipment
The AKCP Temperature Sensor is compatible with the sensorProbe+ and securityProbe platforms.
The AKCP temperature sensor is compatible with all of our sensorProbe+ and securityProbe series base units. Designed to record accurate temperature data it is ideal for giving advanced warnings of temperature fluctuations that can potentially damage sensitive equipment. This advance notification can protect your data and systems from catastrophic events.
Setup is simple with the sensorProbe+ and securityProbe auto-sense function. Once plugged into the intelligent sensor port the base unit automatically detects the presence of the sensor and configures it for you. All you need to do is set your thresholds for low and high warning and critical parameters. The built-in graphing function of the base unit gives you a pattern of temperature trends over time.
For those who require an industrial-strength temperature sensor for extremes of high or low temperatures, we recommend the AKCP Thermocouple sensor or the Ultra Cold Temperature Sensor.
- Semiconductor, microprocessor-controlled type temperature sensor
- Can be extended up to 900ft (274m) with standard CAT5 cable
- Own SNMP OID for data collection over a network
- 0.5ºC resolution
Added protection
The stainless steel tubing helps to protect the temperature sensor from everyday use in busy server room environments.
Water-resistant sensor housing
The stainless steel tube reduces the risk of sensor failures caused by water damage. A waterproof version is available with a choice of metal tube lengths.
Easier to install
Temperature sensors ship with cables and temperature sensor clips for easy installation in server cabinets.
Specifications
Technical Specifications
| Measurement Range | -55°C to +75°C-67°F to +167°F |
|---|---|
| Measurement Resolution | securityProbe and sensorProbe+ series0.1°C increments0.2°F increments |
| Measurement Accuracy | sensorProbe+ series and securityProbe series±0.2°C accuracy from -10°C to +75°C±0.5°F accuracy from +14°F to +167°F |
| Calibration | NIST traceable Calibration Certificate (TMPxx-NIST2 / 3)Built-in calibration check alerts when the sensor needs re-calibrationNIST3 with calibration check and failover |
| Communications cable | RJ-45 jack to sensor using UTP CAT5e/6 cable |
| Power source | Powered by the base units. No additional power needed |
| Power Consumption | Typical 7.25mWatt, 1.45mA |
| Maximum Cable Length | Run length is 900 feet (274 meters) with low capacitance shielded cable or UTP |
| Sensor type | Semiconductor, microprocessor controlled |
| Dimensions | 56 x 55 x 33.3 mm |
| Mounting | DIN rail mountingScrew mounting |
| Sensor count (TMPxx-NIST2) | 2 |
| Sensor count (TMPxx-NIST 3) | 3 |
| Important Note | The fixed one-foot type or TMP01 is not designed to be extended. If you need to extend these sensors then you need to use the TMP00 (remote type). We also do not recommend you try to connect any of our AKCP sensors including the temperature and dual temp humidity sensors through patch panels or using the RJ-45 couplers to extend them. Please see the temperature sensors product manual or FAQ in our knowledge base for more details regarding this. |
| Compatibility | TMPxx-NIST2 and NIST3 compatible with sensorProbe+ and securityProbe series only |
