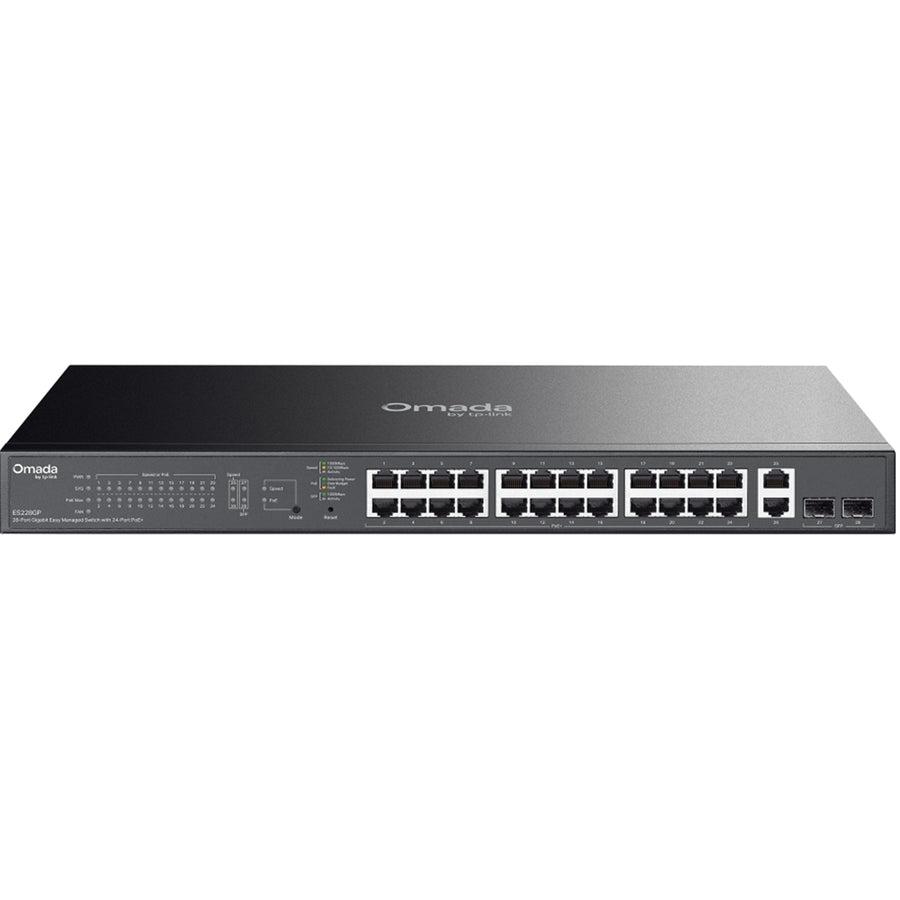

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
Overview
<b>Omada Central Essentials — A Free and Easy Cloud-Based Network Management</b><br><br>Omada Central Essentials is a free, easy-to-use version of the Omada Central.<br>It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses. <br><br><b>Multiple Application Scenarios</b><br><br>Surveillance<br><br>Works with IP Cameras<br><br>Wi-Fi Coverage<br><br>Works with Access Points<br><br>Wired Connections<br><br>Works with Non-PoE Devices such as PCs and Printers<br><br>
Technical Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3af,IEEE 802.3at |
| Port mirroring | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| VLAN support | Y |
| Virtual LAN features | MTU VLAN,Port-based VLAN,Tagged VLAN |
| Switching capacity | 56 |
| Forwarding rate | 41.67 |
| MAC address table | 8000 |
| Store-and-forward | Y |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 |
| DHCP features | DHCP client |
| IGMP snooping | Y |
| Loop protection | Y |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Rack mounting | Y |
| Product colour | Black |
| Number of fans | 2 |
| Power source | AC |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Input current | 4 |
| Power protection features | Surge protection |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 250 |
| Operating temperature (T-T) | -5 - 45 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Cables included | AC |
| Manual | Y |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
