TP-Link

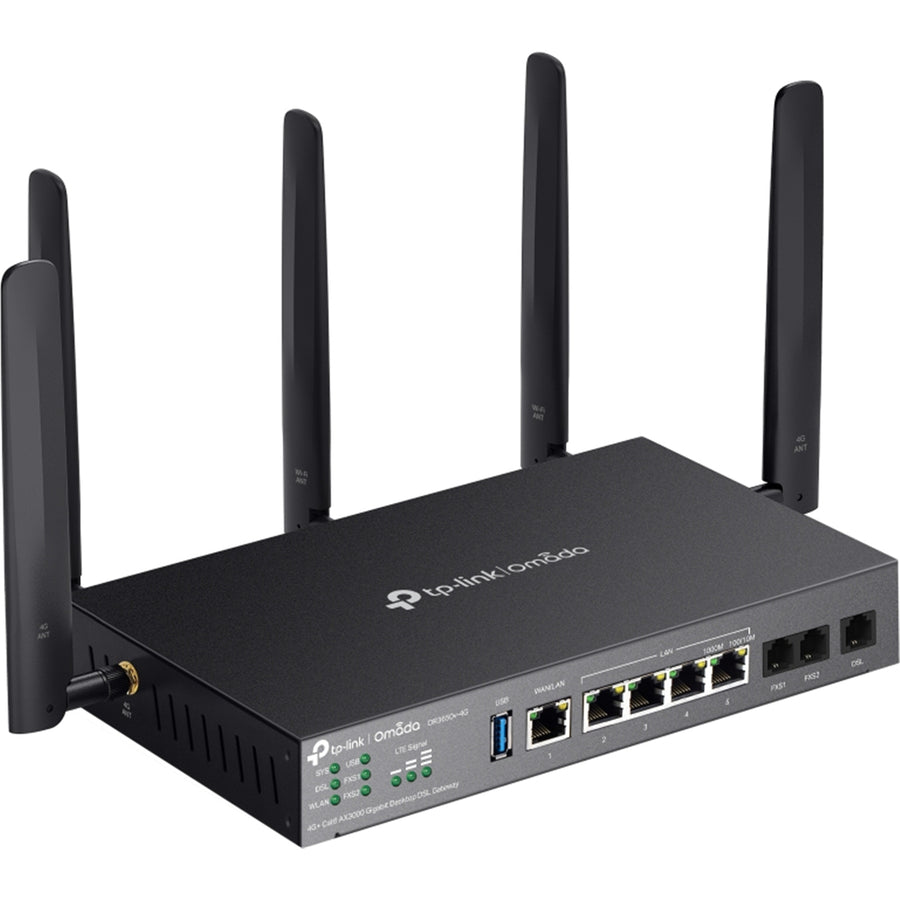

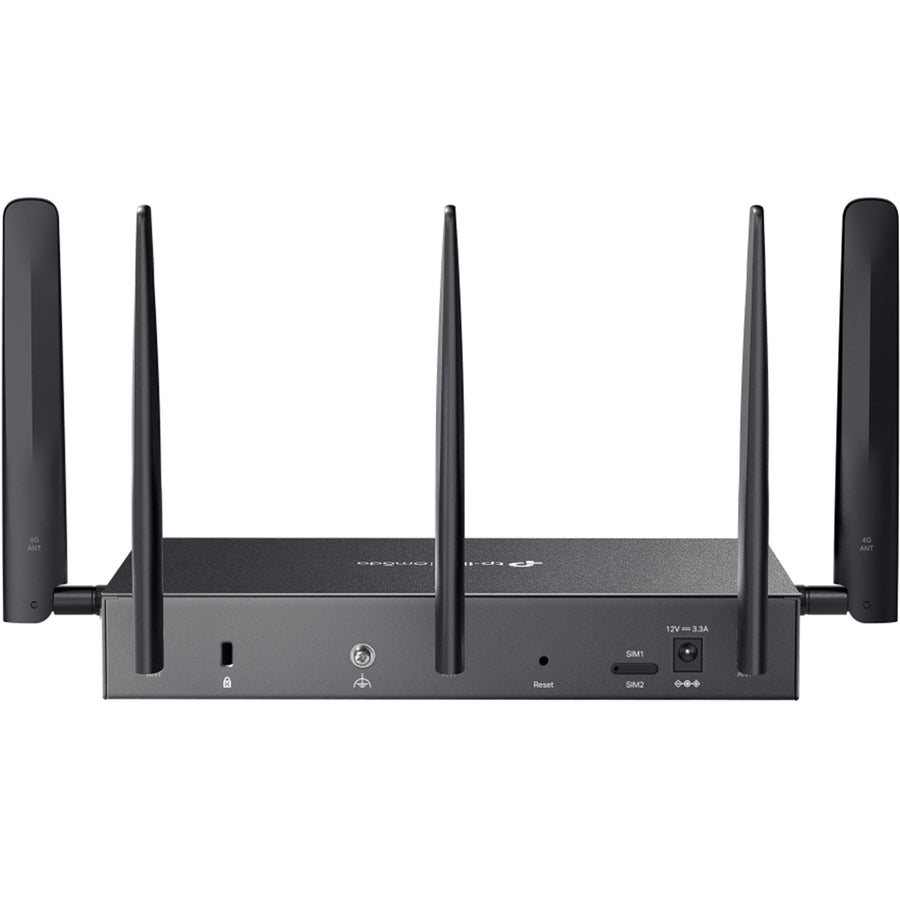

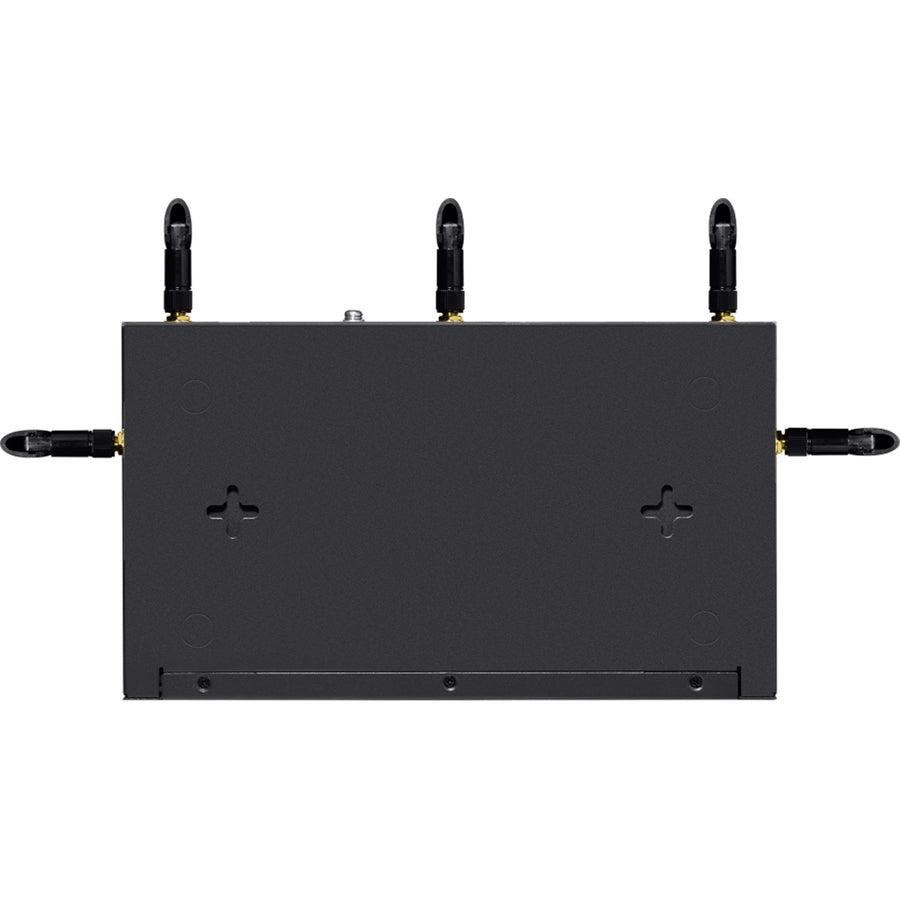

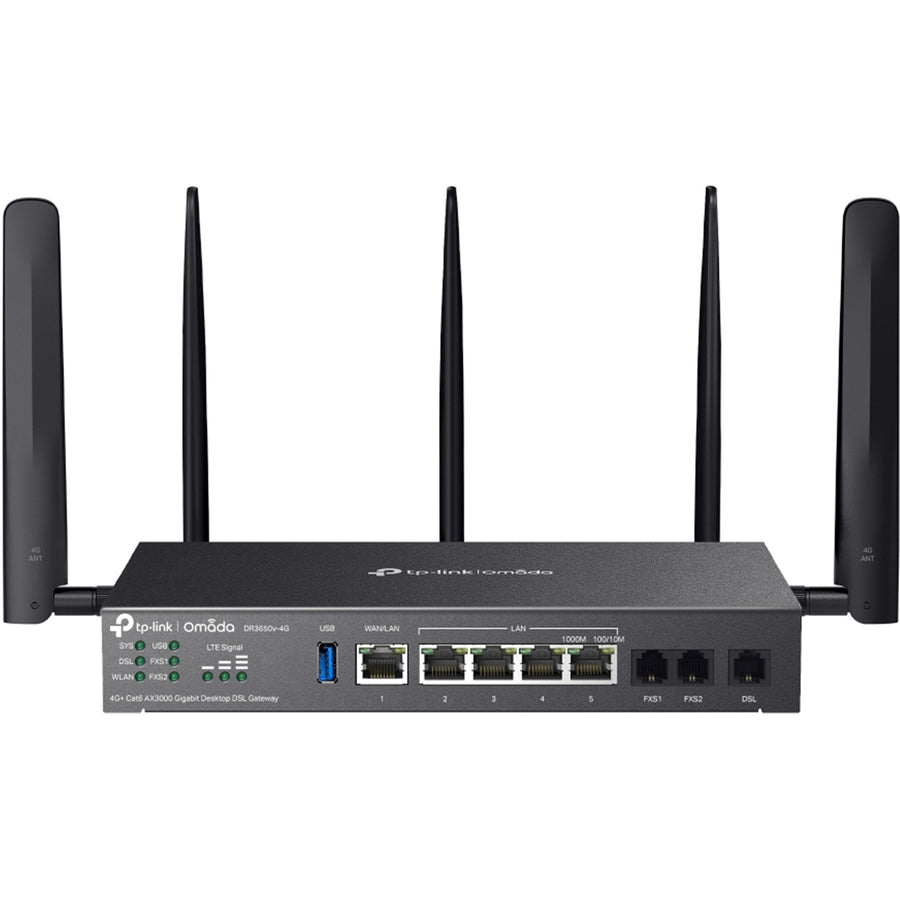

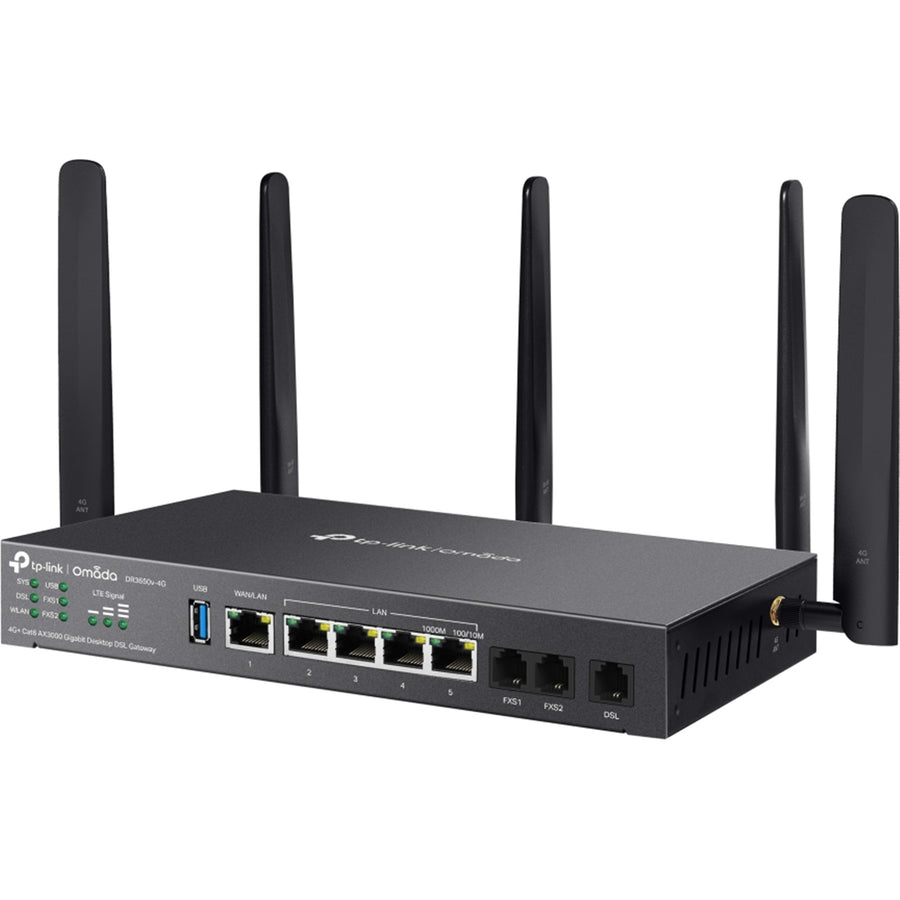

TP-Link Omada DR3650v-4G 4G+ CAT6 Gigabit Multi-WAN VPN ADSL/VDSL Gateway with Dual-Band WiFi 6 AX3000
$603.43$607.83
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
DR3650v-4G
Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1
- 4G+ Cat6 up to 300Mbps
- 3x RJ11 Ports (2x FXS, 1x DSL) & 5x RJ45 Gigabit Ports & 1x USB 3.0 Port
- 2x Nano SIM for 4G/LTE Failover
- VDSL2 35b: Supports 350Mbps DSL Access*2
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
- Centralized Cloud Management
- Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Get Instant 4G+ LTE - Internet up to 300 Mbps
Versatile Connectivity
DR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the FXS ports supports VoIP for reliable voice communication. The USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Up to 3.0 Gbps Business-Level Wi-Fi 6 Empowers Small and Medium Business*
HE 160
Double the data at peak transmission times on a single stream
OFDMA
Enables different devices to share one transmission stream, increasing efficiency
1024 QAM
25% more data encoded at one time
Software Defined Networking (SDN) with Cloud Access
Centralised cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
In the Box
Build Features
Specifications
Technical Specifications
| Access Control | Source/Destination IP Based Access Control |
|---|---|
| Filtering | Web Group Filtering*5URL FilteringWeb Security*5 |
| ARP Inspection | Sending GARP PacketsARP Scanning*5IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN |
| Interface | 1× Gigabit WAN/LAN Port4× Gigabit LAN Ports1× DSL Port2× FXS Ports1× USB 3.0 (supports USB LTE dongle and USB Storage)Dual Nano SIM Slot (4G+ Cat6) |
| Button | Reset Button |
| Power Supply | 12V DC / 3.3A Power Adapter |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennasLTE: 2× 4.0dBi omnidirectional detachable antennas |
| Mounting | Desktop/Wall-mounting/Rackmount (with Kit-D226, sold separately) |
| Max. Power Consumption | Power adapter not included: 28.482 W (Full load + USB)Power adapter included: 31.42 W (Full load + USB) |
| GRE | Unencrypted: 541.8MbpEncrypted: 289.2Mbps |
| WireGuard VPN | 311.6Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 3,800 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 569.9MbpsESP-SHA256-AES256: 543.3MbpsESP-SHA384-AES256: 549.0MbpsESP-SHA512-AES256: 539.3Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | Unencrypted: 909.4 MbpsEncrypted: 494.9Mbps |
| PPTP VPN Throughput | Unencrypted: 897.5 MbpsEncrypted: 190.8 Mbps |
| SSL VPN Throughput | 126.7Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| Advanced Features | Seamless RoamingMesh (with EAP that supports Mesh)OFDMABeamformingEnable/Disable SSID BroadcastEnable/Disable Wireless RadioMU-MIMOLoad BalanceAutomatic Channel Selection AlgorithmAirtime FairnessRate Limit: Based on SSID/ClientTransmit Power Control: Adjust transmit Power on dBmMultiple SSIDs: 16 in total (8 per radio)Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Guest Network | Support |
| WAN Connection Type | Static IPDynamic IPPPPoE (supports MRU Configuration)PPTPL2TP |
| MAC Clone | Modify WAN Address |
| DHCP | DHCP ServerDHCPv6 PD Server (only in Standalone Mode)DHCP Options CustomizationDHCP Address ReservationMulti-IP InterfacesMulti-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Routing | Static RoutingPolicy RoutingRIP*5OSPF*5 |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | Intelligent Load BalanceApplication Optimized RoutingLink Backup(Timing, Failover)Online Detection |
| NAT | One-to-One NATMulti-Net NATVirtual ServerPort Triggering*5NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUPnP |
| Session Limit | IP-Based Session Limit |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 IPSec VPN TunnelsLAN-to-LAN, Client-to-LANMain, Aggressive Negotiation ModeDES, 3DES, AES128, AES192, AES256 Encryption AlgorithmIPsec FailoverIKE v1/v2MD5, SHA1, SHA2-384 and SHA2-512 Authentication AlgorithmNAT Traversal (NAT-T)Dead Peer Detection (DPD)Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN ServerPPTP VPN Client (10)*650 TunnelsPPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN ServerL2TP VPN Client (10)*650 TunnelsL2TP over IPSec |
| OpenVPN | OpenVPN ServerOpenVPN Client (5)*655 OpenVPN Tunnels"Certificate + Account" ModeFull Mode |
| WireGuard VPN | Yes |
| Web Authentication | No AuthenticationSimple Password*6Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)External Radius SeverExternal Portal Sever*6LDAP |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management InterfaceRemote ManagementExport & Import ConfigurationSNMP v1/v2c/v3Diagnostics (Ping & Traceroute)*5NTP Synchronize*5Port MirroringCLI (only in Standalone Mode)Syslog SupportTR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes. Require the use of Omada Controller. |
| Management Features | Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration |
| Certification | CE, RoHS |
| Package Content | DR3650v-4GPower AdapterEthernet CablePhone CableQuick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing |
| Notes | *1Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.*2Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.*3Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer tohttps://www.tp-link.com/en/omada-mesh/product-list/to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone Mesh. Please refer tohttps://www.tp-link.com/en/standalonemesh/product-list/to confirm the models that support standalone Mesh.*4Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.*5Supported only in Standalone Mode.*6Supported only in Controller Mode.*7The Omada cloud-based controller offers the Essentials version of cloud services for free, while the Standard version, which includes advenced features, requires a license. |
| Brand | TP-Link |
|---|---|
| Product Type | Networking |
| Weight | 1.82 kg |
| Warranty |
|---|
