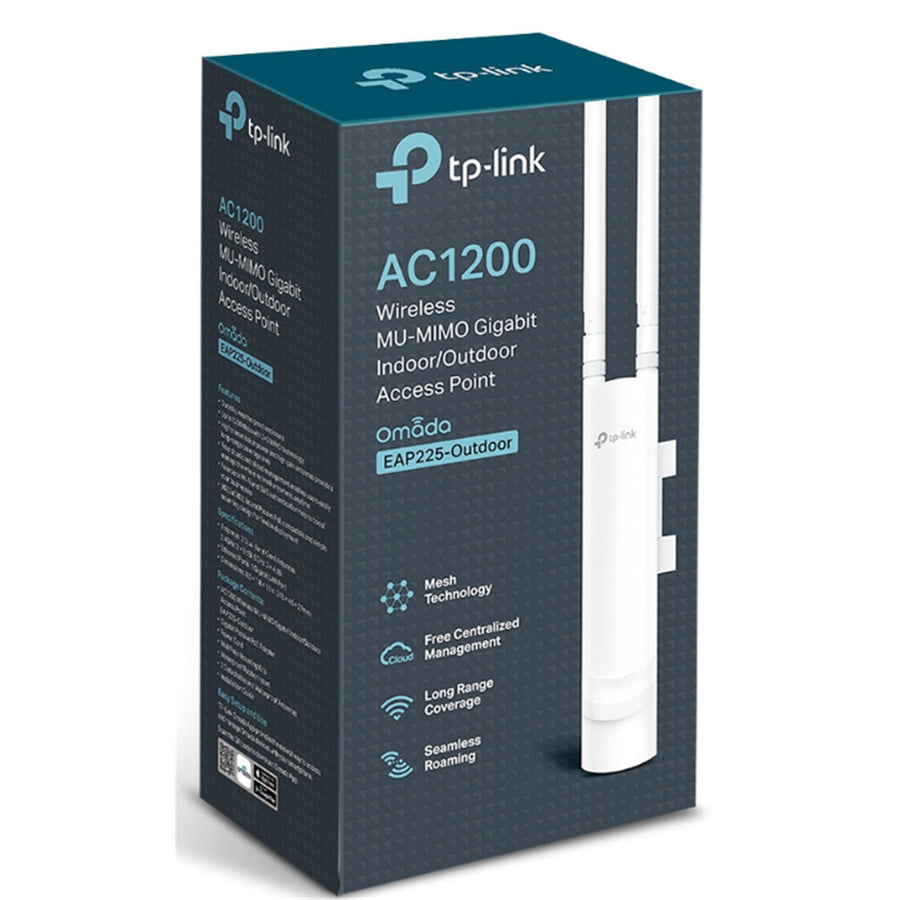

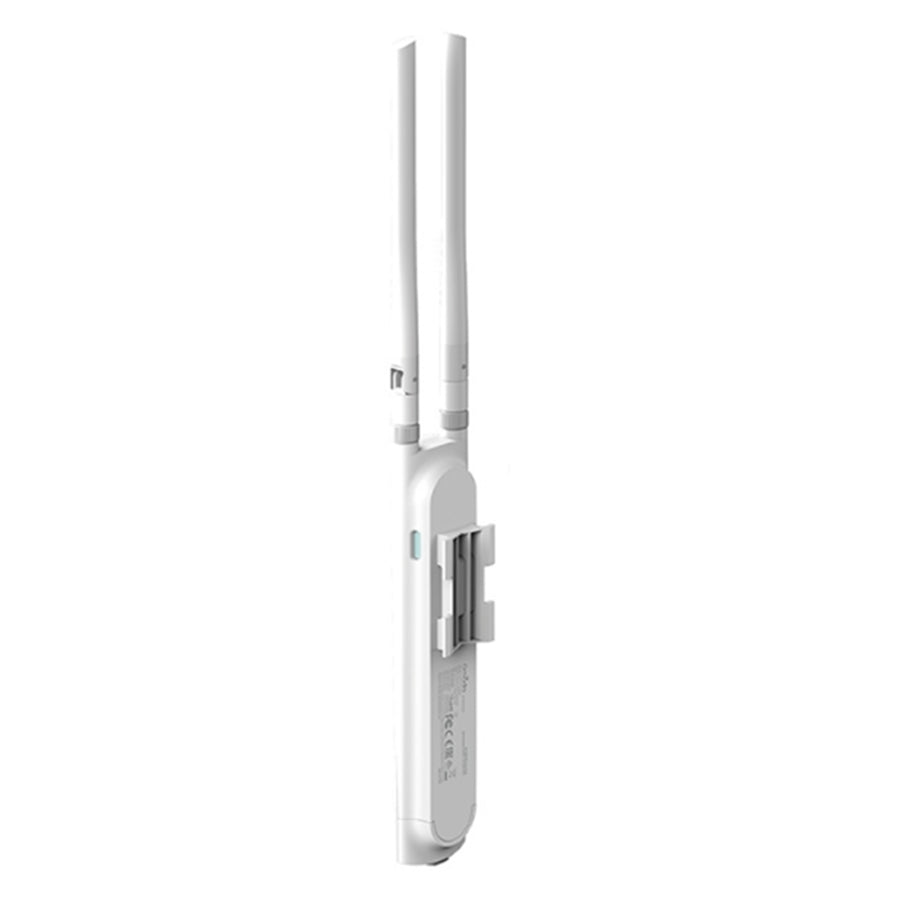

TP-Link Omada EAP225-Outdoor (AC1200) Dual-Band Wi-Fi 5 Access Point, 1G Port x1, 802.3af PoE 11W
Features
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2x2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Specifications
Technical Specifications

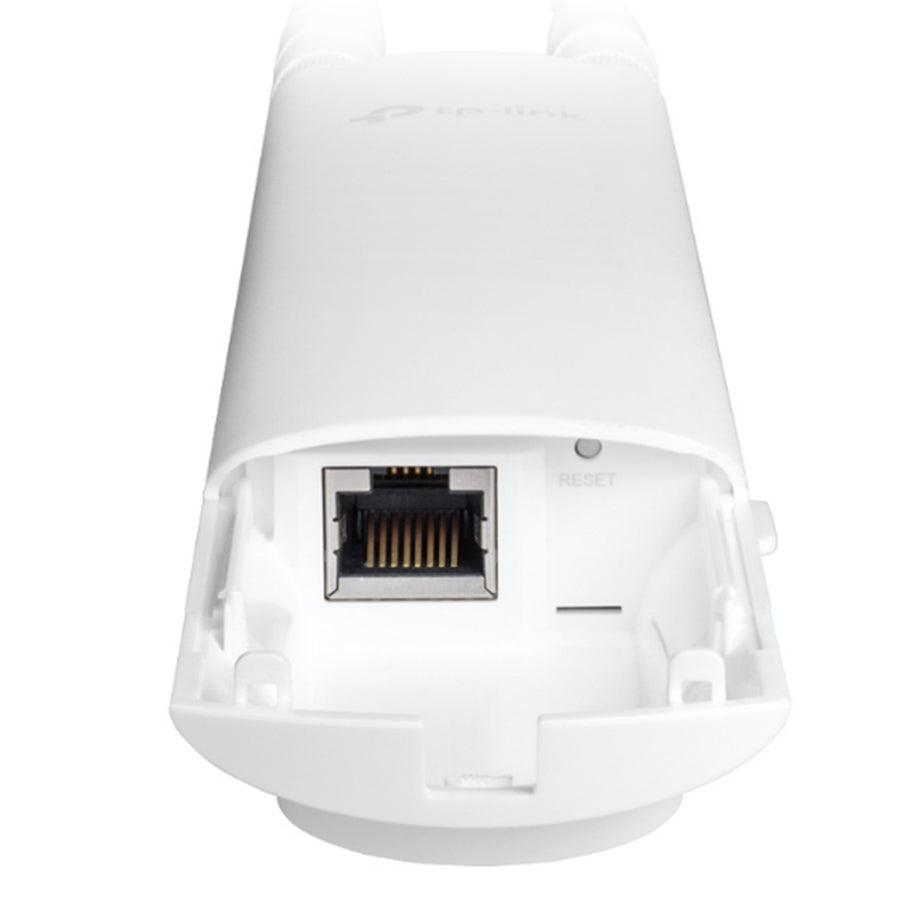

| Interface | One gigabit Ethernet RJ-45 port (Support 802.3af PoE and Passive PoE) |
|---|---|
| Button | Reset |
| Power Supply | 802.3af PoE and 24 Passive PoE(PoE injector included) |
| Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 8.5 × 1.8 × 1.1in.(215 × 46 × 27 mm) |
| Antenna | 2.4GHz: 2 × 3dBi5GHz: 2 × 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall mount (mounting kit included) |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11b: 1, 5.5, 11Mbps802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | Multiple SSIDs(Up to 16 SSIDs, 8 for each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS(WMM)MU-MIMOAirtime FairnessBeamformingBand SteeringLoad BalanceRate LimitReboot ScheduleWireless ScheduleWireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X Support |
| Transmission Power | 23dBm, max. (2.4GHz)22dBm, max. (5GHz) |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Cloud Access | Yes |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Certification | FCCRoHS |

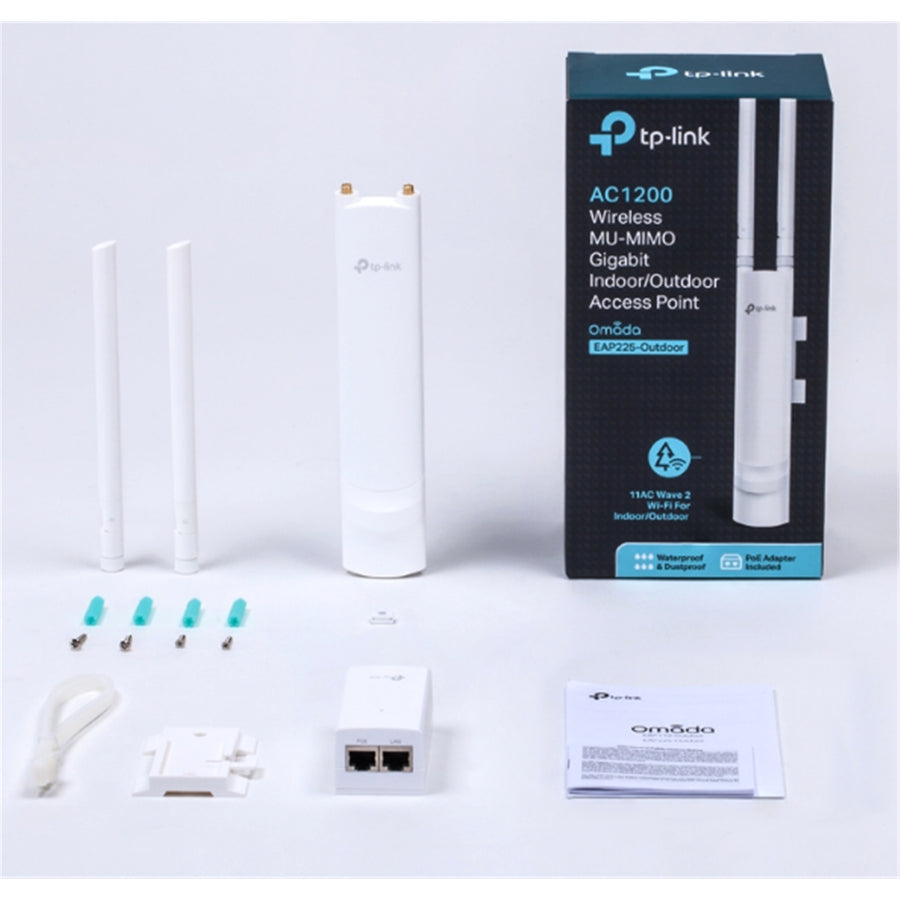

| Package Contents | AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access PointPassive PoE InjectorPower CordMounting KitsInstallation GuideWaterproof Rubber InsertWaterproof Antenna |
| Environment | Operating Temperature: -30~70C (-22~158F)Storage Temperature: -40~70C (-40~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking |
| Weight | 0.678 kg |
| Warranty |
|---|
