TP-Link

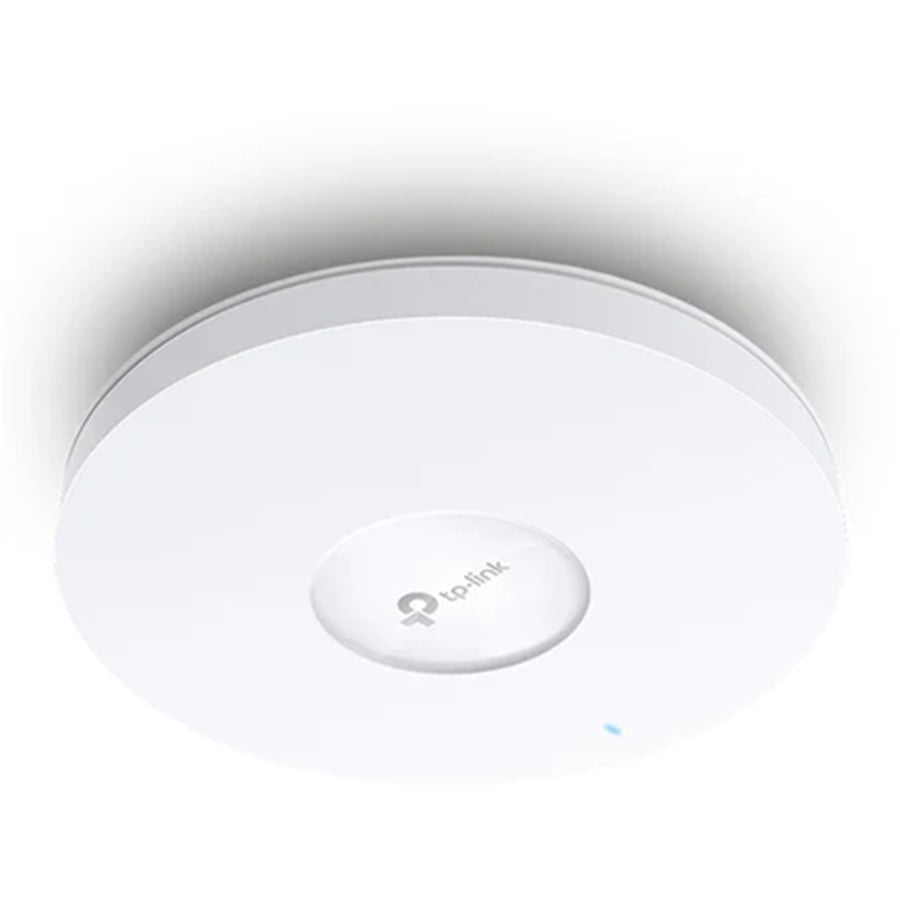

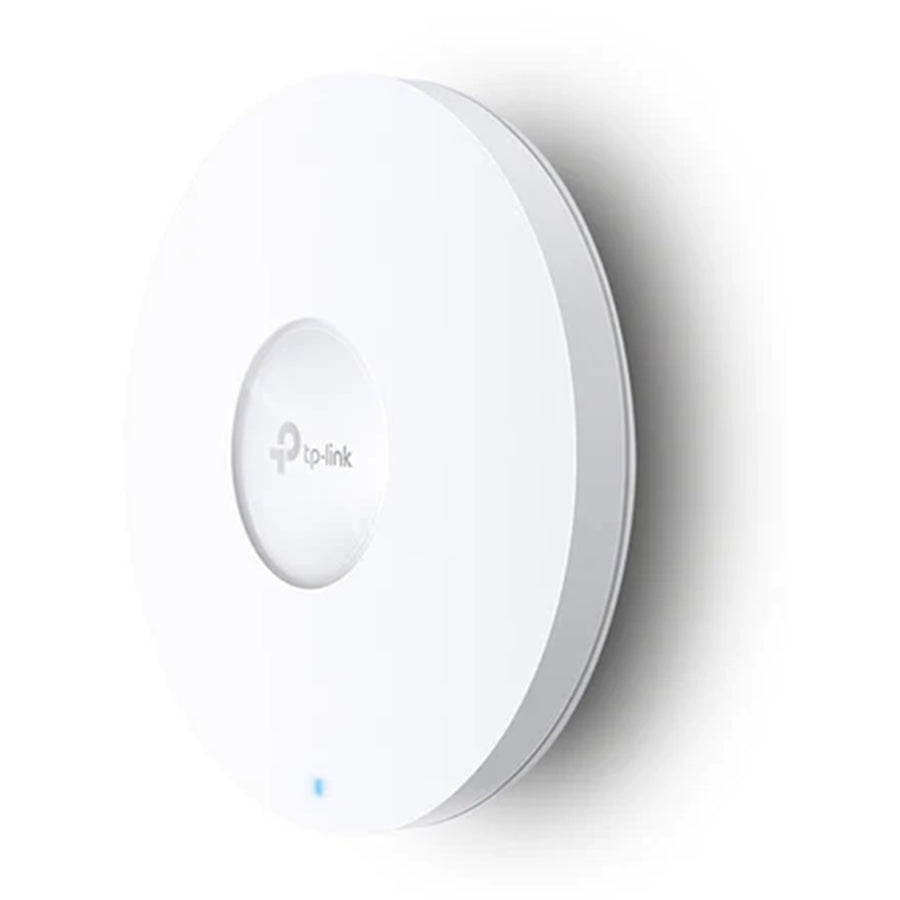

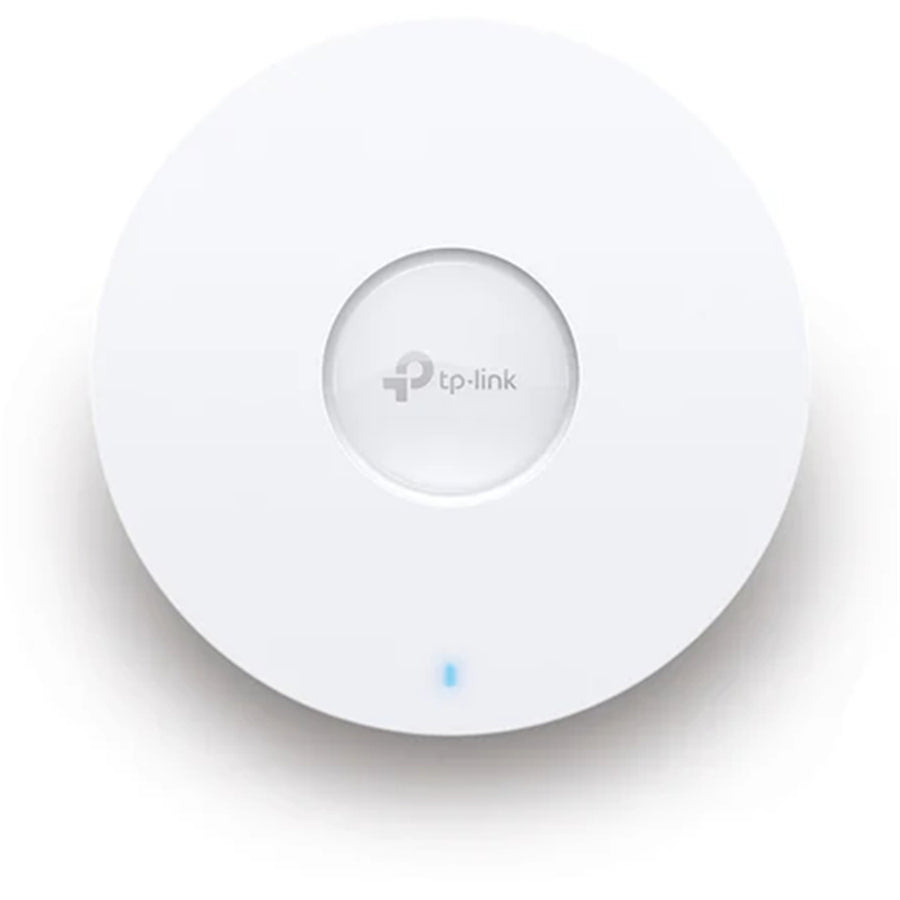

TP-Link Omada EAP653 UR (AX3000) Dual-Band 4-Stream Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 15W)
$229.90
Free shipping over $299
Genuine product
7-day returns
Features
AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡
- Advanced Features: Omada Mesh, Seamless Roaming, etc§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: F6.3 in × 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralised management
Specifications
Technical Specifications
| Interface | 1x Gigabit PoE+ Port |
|---|---|
| Button | Reset |
| Power Supply | - 802.3at PoE- 12V DC / 1.5 A (Power Adapter IS NOT included)- 48V Passive PoE |
| Power Consumption | - EU: 14.2 W- US: 15.5 W |
| Dimensions ( W x D x H ) | 6.3 x 6.3 x 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni- 2.4 GHz: 2x 5 dBi- 5 GHz: 3x 5 dBi |

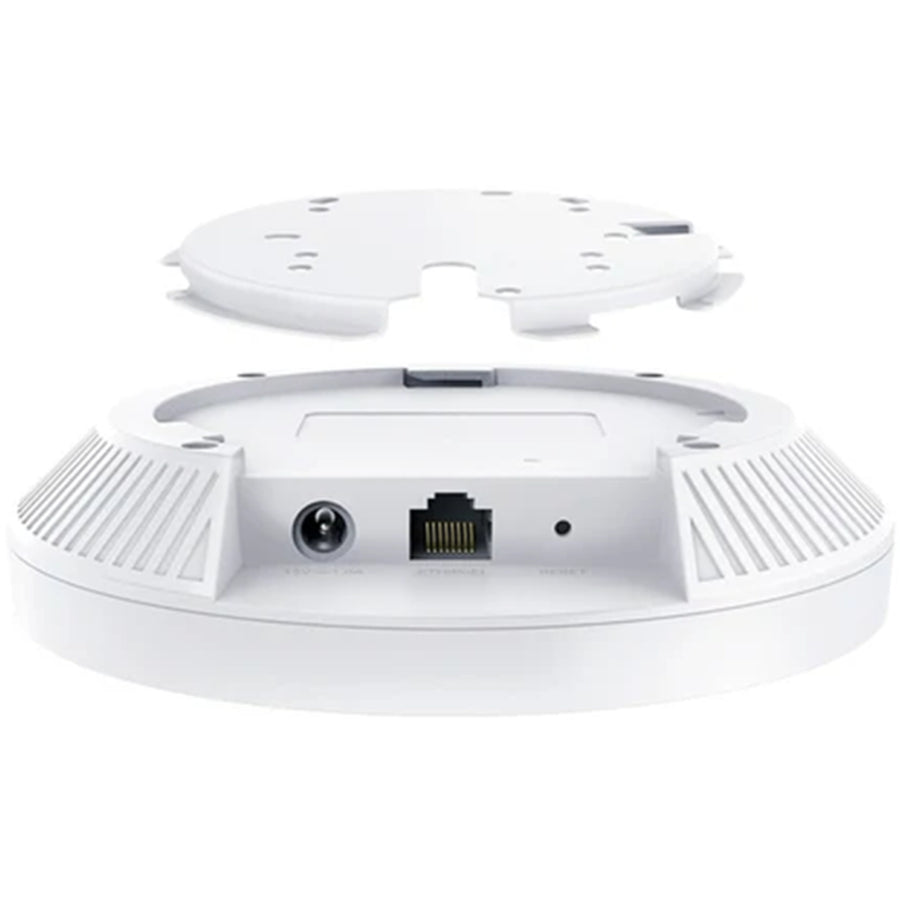

| Mounting | - Ceiling /Wall Mounting (Kits included)- Junction Box Mounting |
| Coverage | 140m2(1500 ft²)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | - 5 GHz: Up to 2402 Mbps†- 2.4 GHz: Up to 574 Mbps† |
| Wireless Functions | - 1024-QAM- 4x Longer OFDM Symbol- OFDMA- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)- Enable/Disable Wireless Radio- Automatic Channel Assignment- Transmit Power Control (Adjust Transmit Power on dBm)- QoS(WMM)- MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)- HE160 (160 MHz Bandwidth)‡- Seamless Roaming(802.11k/v/r)§- Omada Mesh§- Band Steering- Load Balance- Airtime Fairness- Beamforming- Rate Limit- Reboot Schedule- Wireless Schedule- Wireless Statistics based on SSID/AP/Client |
| Wireless Security | - Captive Portal Authentication§- Access Control- Wireless Mac Address Filtering- Wireless Isolation Between Clients- SSID to VLAN Mapping- Rogue AP Detection- 802.1X Support- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | - CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, Band1 & Band2, EIRP)<29 dBm(5 GHz, Band3, EIRP)- FCC:<26 dBm (2.4 GHz)<27 dBm (5 GHz) |
| Omada App | Yes |
| Centralized Management | - Omada Hardware Controller (OC300)- Omada Hardware Controller (OC200)- Omada Software Controller- Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification | CE, FCC, RoHS |
| Package Contents | - EAP653 UR- Ceiling/Wall Mounting Kit- Installation GuideNote: DC adapter is not included in the package, and is sold separately. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | - Operating Temperature: 0-40 C (32-104 F)- Storage Temperature: -40-70 C (-40-158 F)- Operating Humidity: 10-90% RH non-condensing- Storage Humidity: 5-90% RH non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking |
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
