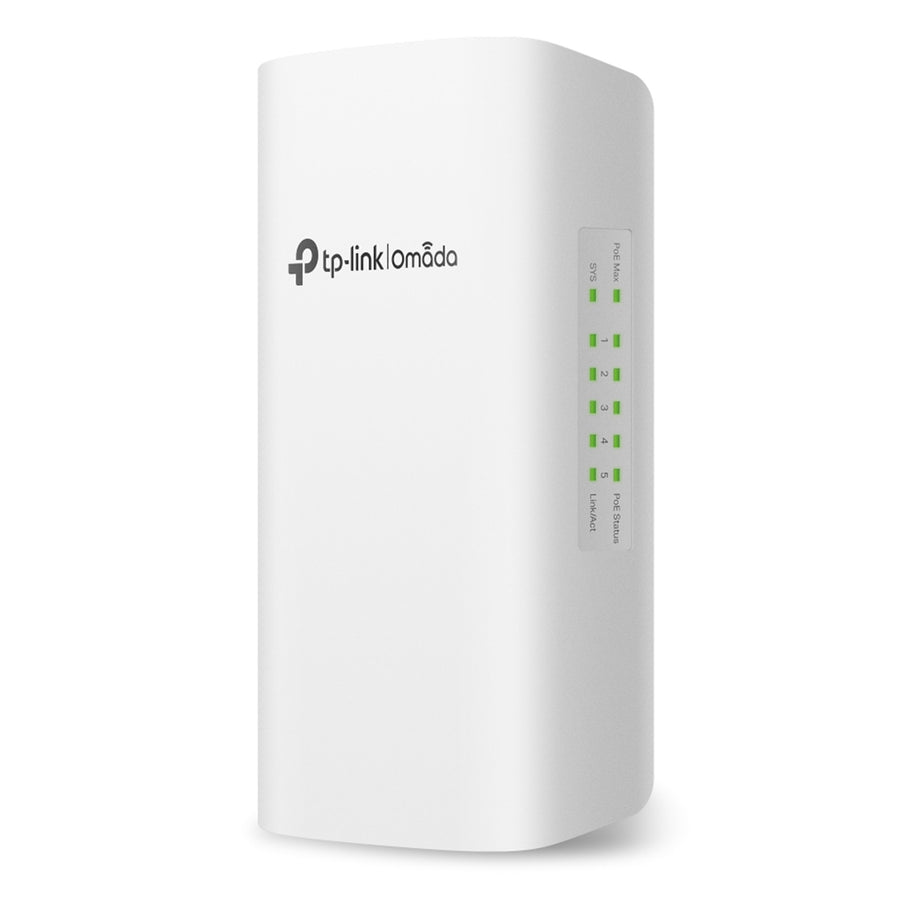

TP-Link SG2005P-PD 5 Port Gigabit Switch PoE Powered Outdoor

Overview

<b>PoE-Powered PoE Switch for<br>Simplified Outdoor Network Deployment</b><br>Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out<br><br><b>Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds</b><br>Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.<br><br><b>One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports</b><br>Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.<br><br><b>Specially Designed Weatherproof Enclosure for Outdoors</b><br>Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.<br><br><b>Easy Installation to Flexibly Fit Your Needs</b><br>Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.<br><br><b>Value-Added Features Foster Touchpoint Experiences</b><br><br>Static Routing<br>Helps route internal traffic for more efficient use of network resources.<br><br>Access Control List (ACL)<br>ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.<br><br>QoS for Lag-Free Experiences<br>Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.<br><br>VLAN for Security and Flexible Management<br>VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.<br><br><b>Software Defined Networking (SDN) with Cloud Access</b><br>Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

• Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
• 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
• Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions
• Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs
• Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management
• Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN

Technical Specifications
