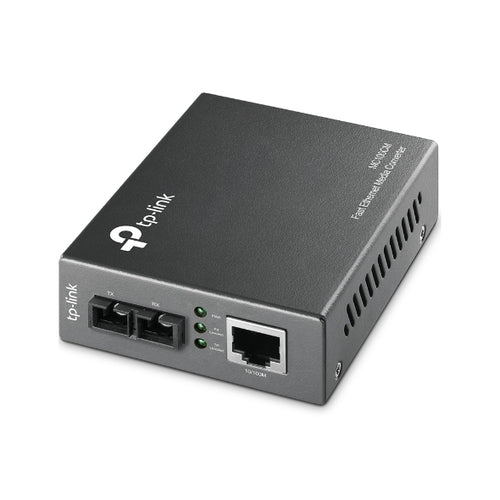

TP-Link TL-MC100CM - TP LINK 10/100Mbps Multi-Mode Media Converter

SKU: TL-MC100CM ● In Stock

$36.80

Free shipping over $299 Genuine product 7-day returns

TP-Link TL-MC100CM - TP LINK 10/100Mbps Multi-Mode Media Converter

Overview

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 1.2 miles (2km)

Technical Specifications

Maximum data transfer rate	100
Networking standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Ethernet LAN data rates	10,100
Auto MDI/MDI-X	Y
Duplex system	Full,Half
Cable types supported	Cat3,Cat4,Cat5,Cat5e
Maximum transfer distance	2000
Wavelength	1310
Fiber mode structure	Multi-mode
Internal	N
LED indicators	Y
Product colour	Black
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Power consumption (max)	2.4
Width	95
Depth	73
Height	27
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Manual	Y
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
