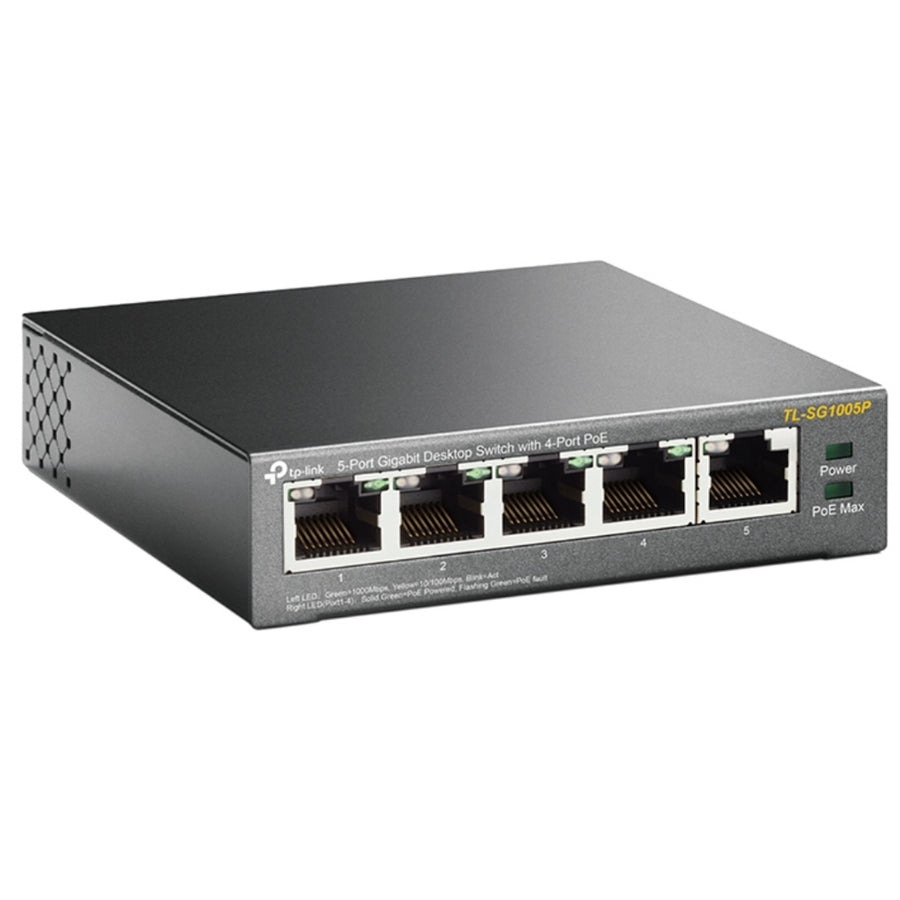

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch With 4-Port PoE
TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch With 4-Port PoE
Overview
<b>PoE Switches for Your Ultra Convenience</b><br>5-Port Gigabit Desktop Switch with 4-Port PoE<br><br><b>Power over Ethernet</b><br>4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).<br><br><b>Intelligent Power Management</b><br>When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.<br><br><b>Sturdy Metal Casing</b><br>Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
Technical Specifications
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| VLAN support | Y |
| Switching capacity | 10 |
| Forwarding rate | 7.44 |
| MAC address table | 2000 |
| Store-and-forward | Y |
| IGMP snooping | Y |
| Rack mounting | N |
| Stackable | N |
| Product colour | Black |
| LED indicators | Y |
| Maximum cable length | 100 |
| Fanless | Y |
| Power source | DC/PoE |
| Power supply included | Y |
| AC input voltage | 100 - 220 |
| AC input frequency | 50 |
| DC input voltage | 48 |
| Input current | 1.25 |
| Power consumption (max) | 64.44 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 56 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 219.87 |
| Width | 99.8 |
| Depth | 98 |
| Height | 25 |
| Cables included | AC |
| Quick start guide | Y |
| User guide | Y |
| Manual | Y |
| AC adapter included | Y |
| Package type | Box |
| Package width | 131 |
| Package depth | 196 |
| Package height | 121 |
| Package weight | 761 |
| Sustainability compliance | Y |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
| Certification | FCC, CE, RoHS |
| Harmonized System (HS) code | 85176990 |
