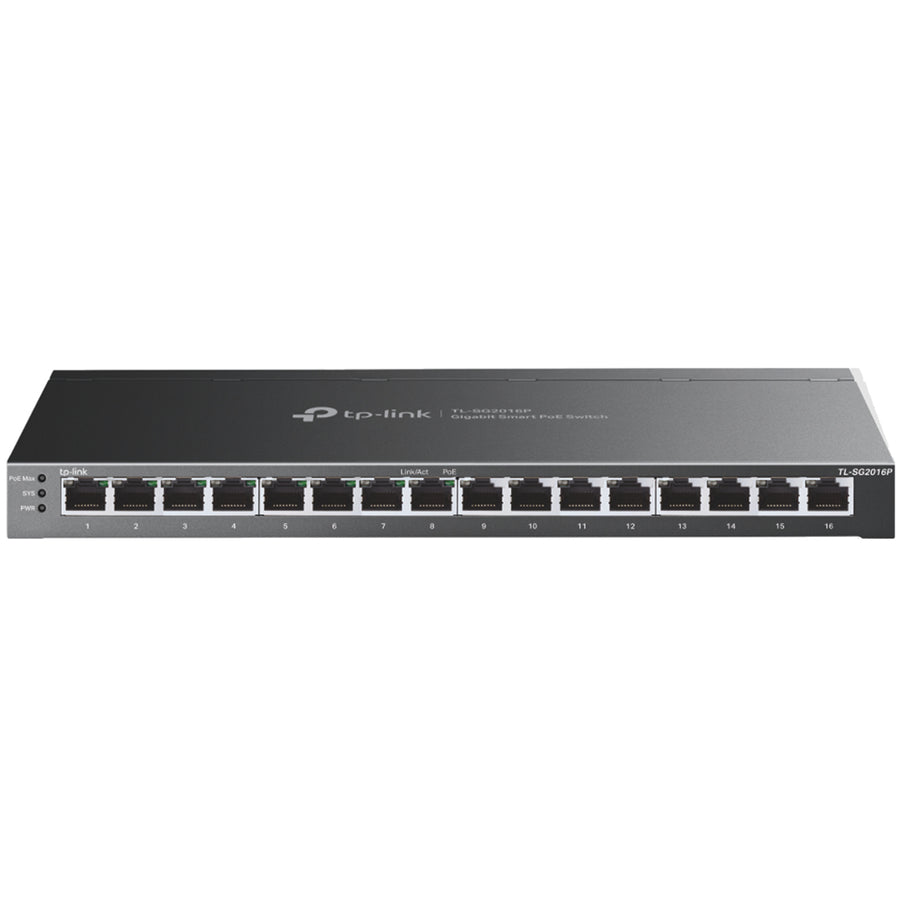

TP-Link TP LINK JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

Name: TP-Link TP LINK JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
Brand: TP-Link
SKU: SG2016P
Price: 405.9 NZD
Availability: InStock

SKU: SG2016P ● In Stock

$352.96

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

📄 Download Official Datasheet (PDF)

TP-Link TP LINK JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

Overview

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
120 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Technical Specifications

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
ARP inspection	Y
Configuring Location Settings (CLI)	Y
System event log	Y
MIB support	RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.11w,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Ethernet LAN data rates	10,100,1000
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	Multicast VLAN,Tagged VLAN,Voice VLAN
Number of VLANs	4000
Switching capacity	32
Forwarding rate	23.81
MAC address table	8000
Number of queues	8
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	4.1
DHCP features	DHCP relay,DHCP snooping,DHCPv6 client,DHCPv6 snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	EAP-MD5,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSL/TLS
MAC address filtering	Y
SSH/SSL support	Y
BPDU filtering/protection	Y
IP-MAC-Port binding	Y
Authentication	Guest VLAN,MAC-based authentication,Port-based authentication
Queue scheduling algorithms	SP,Weighted Round Robin (WRR)
MAC address entries	Dynamic MAC address entries,Static MAC address entries
Multicast support	Y
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Supported network protocols	ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
GARP VLAN Registration Protocol (GVRP)	Y
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Rack mounting	Y
Product colour	Black
LED indicators	PoE,Power,System
Firmware upgradeable	Y
Fanless	Y
Power source	DC/PoE
DC input voltage	53.5
Power consumption (max)	146.5
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	499.98
Width	286
Depth	111.7
Height	25.4
Cables included	AC
Manual	Y
Certification	CE, FCC, RoHS
