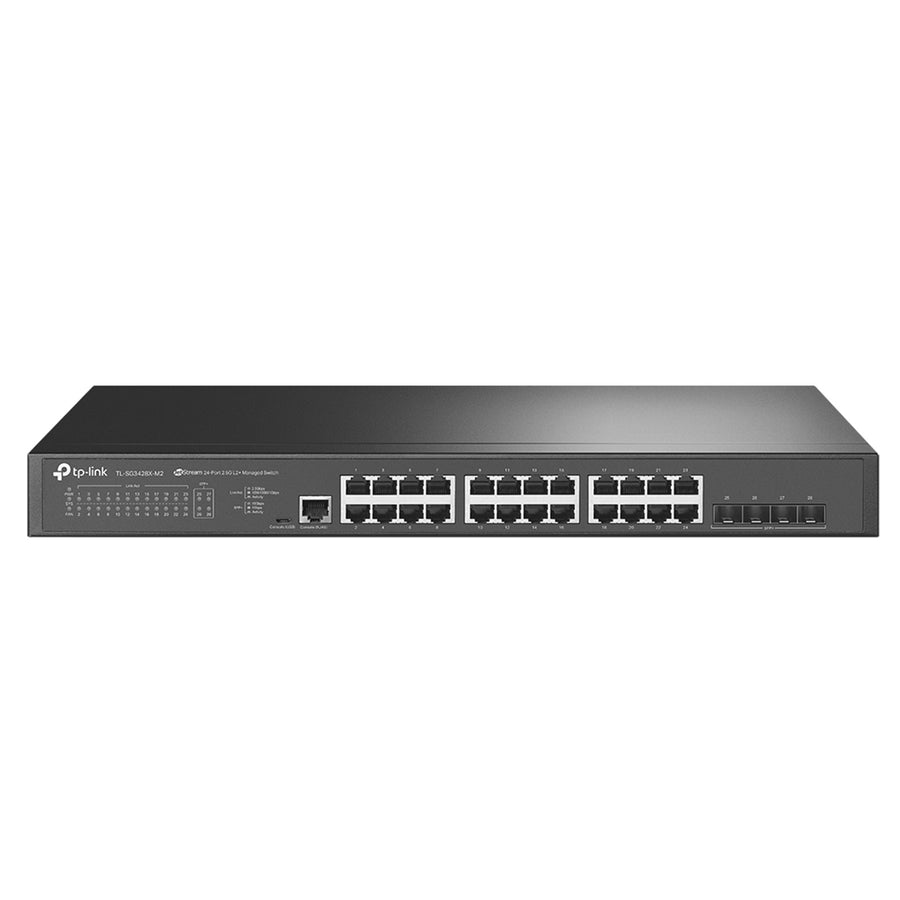

TP-Link TP LINK JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
TP-Link TP LINK JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
Overview
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 24× 2.5 Gbps RJ45 ports
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 200 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Technical Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| MIB support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3bz,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
| 10G support | Y |
| Port mirroring | Y |
| Policy-based routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| Active link detection | Y |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Y |
| Virtual LAN features | Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Switching capacity | 200 |
| Forwarding rate | 148.8 |
| MAC address table | 32000 |
| Store-and-forward | Y |
| Static route | Y |
| Number of static routes | 48 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| IP-MAC-Port binding | Y |
| Authentication | Auto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication |
| Authentication type | AAA,RADIUS,TACACS+ |
| Multicast support | Y |
| Multicast Listener Discovery (MLD) snooping | Y |
| Management protocols | SNMP v1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Y |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert |
| IPv4 FIB entries | 100 |
| IPv6 FIB entries | 100 |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Number of fans | 1 |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 45.1 |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 154.38 |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Cables included | LAN (RJ-45) |
| Quick start guide | Y |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
| Certification | CE, FCC, RoHS |
