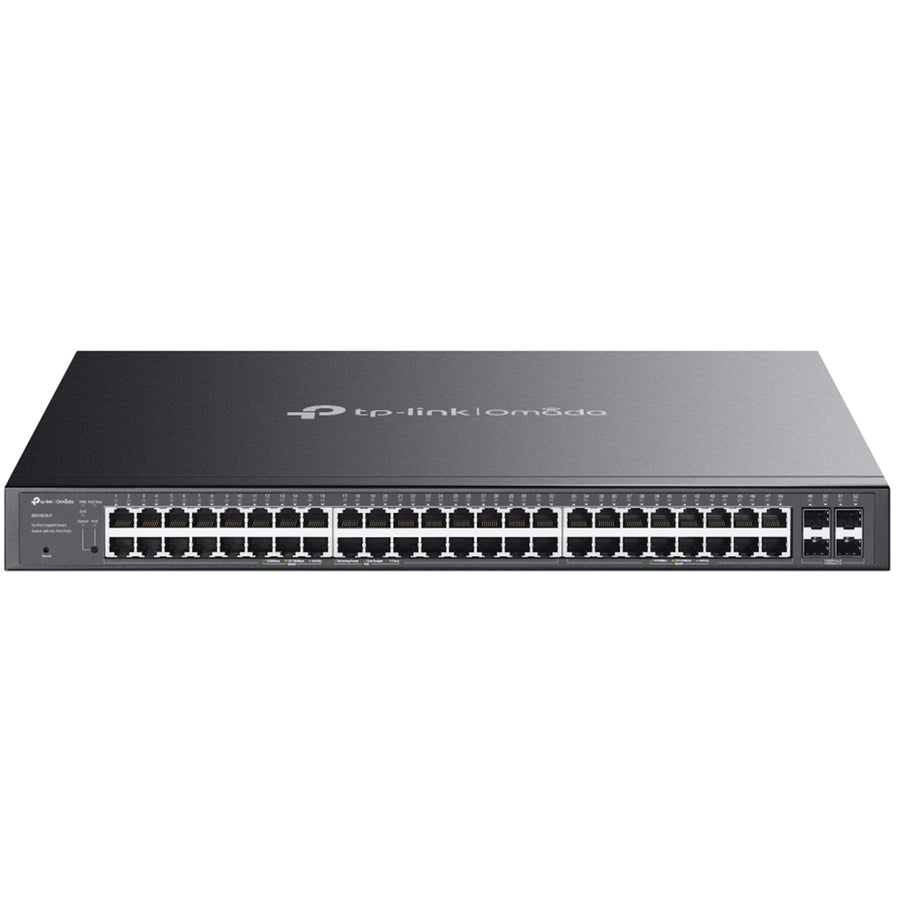

TP-Link TP LINK SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

Name: TP-Link TP LINK SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
Brand: TP-Link
SKU: SG2452LP
Price: 1208.9 NZD
Availability: InStock

SKU: SG2452LP ● In Stock

$1,051.22

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

📄 Download Official Datasheet (PDF)

TP-Link TP LINK SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

Overview

Power over Ethernet, Flexible Network Deployment Easily Build a Whole 10G Multi-gigabit Network Software Defined Networking (SDN) with Cloud Access Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

32× Gigabit 802.3af/at PoE+ ports
16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
230 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for quiet operation
Durable metal casing and rackmountable design

Technical Specifications

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
ARP inspection	Y
Configuring Location Settings (CLI)	Y
System event log	Y
MIB support	Y
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Power connector	AC-in jack
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3x
10G support	N
Port mirroring	Y
IP routing	Y
Flow control support	Y
Link aggregation	Y
Auto MDI/MDI-X	Y
Ethernet LAN data rates	10,100,1000
Active link detection	Y
VLAN support	Y
Switching capacity	104
Forwarding rate	77.37
MAC address table	16000
Static route	Y
Jumbo frames support	Y
Jumbo frames	9000
DHCP features	DHCP relay,DHCP server
IGMP snooping	Y
Security algorithms	SNMP,SNMPv2,SNMPv3
MAC address filtering	Y
SSH/SSL support	Y
Loop protection	Y
Authentication type	RADIUS
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Power source	AC
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	304.5
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	32
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	230
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	1035.4
Width	440
Depth	330
Height	44
