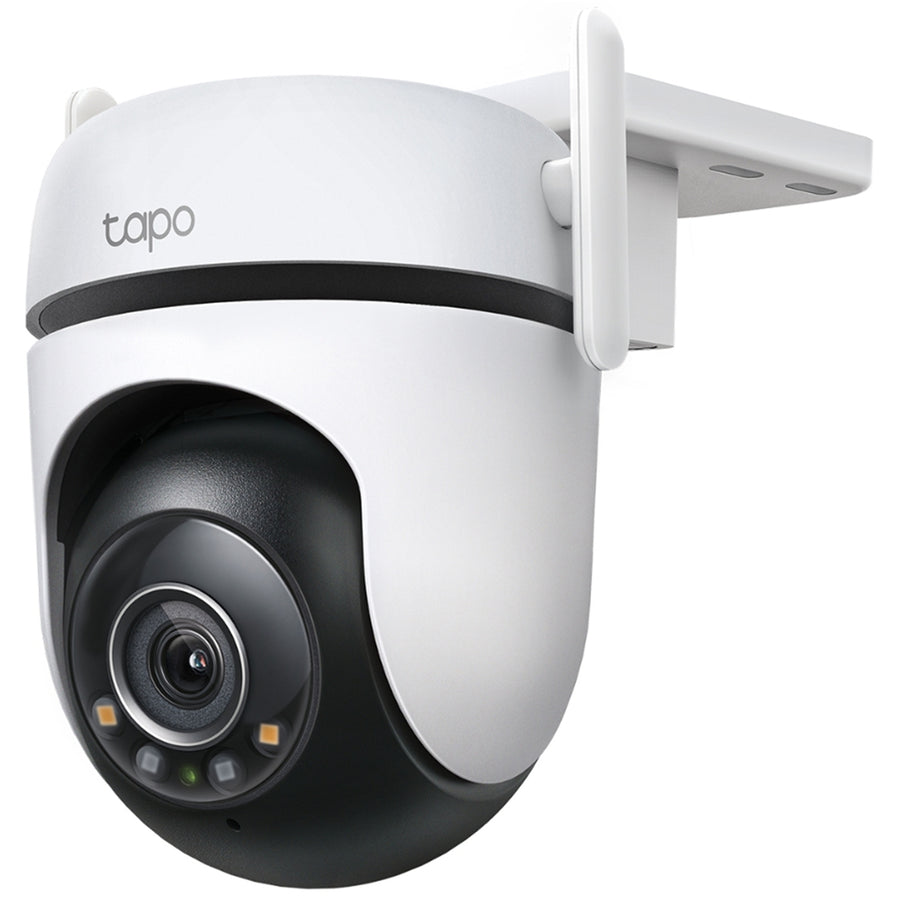

TP-Link TP Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera
TP-Link TP Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera
Overview
<b>Smart. Secure. Easy.</b><br>All-Round Protection with Vivid Colors<br>Outdoor Pan/Tilt Security Wi-Fi Camera<br><br><b>Brighter than Full-Color</b><br>TapoC520WS renders brighter images than other full-color night vision cameras with spotlights on due to its starlight sensor.<br><br><b>2K QHD Crystal Clear View</b><br>Now with 1.7 times more pixels than 1080p, providing clearer videos and more crisp photos.<br><br><b>Multiple AI Detection, All for Free!</b><br>Smart AI identifies people, pets, and vehicles, notifying users as needed. All are provided for free.<br><br><b>Customize Your Detection</b><br>Adjust the sensitivity of motion detection and set up activity zones/boundaries for your convenience. You can also turn on the patrol mode to keep the camera cruising between two customized points.<br><br><b>Reliable Networking, Flexible Connection</b><br>Dual powerful external antennas provides larger wireless coverage(up to 492 ft in open areas*) and more stable connection. You can also connect you’re your camera to the network through the RJ45 Ethernet port.<br><br><b>Secure Local & Cloud Storage</b><br>Save recorded videos to a microSD card (up to 512 GB) or by using Tapo Care cloud services.<br><br>Enjoy 24/7 continuous recording and playback with a microSD card (up to 512 GB, equals to 680 hours of 2K QHD footage).<br><br>Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with Tapo Care cloud services.<br><br>IP66 Weatherproof<br>Offers excellent waterproof and dustproof performance for outdoor scenarios.<br><br>Smart Motion Tracking<br>Tracks motion with high-speed rotation to keep the object within the camera’s view.<br><br>Two-Way Audio<br>Communicate directly with the outdoors for your convenience.<br><br>Multiple Installation Options<br>Use the mounting screws, template and loops to install on any wall, ceiling or pole for the perfect view—wherever you want.<br><br>Physical Privacy Mode<br>Maintains your privacy with the lens physically blocked by the housing.<br><br>Voice Activated<br>Enjoy your smart life and keep an eye on your vital areas with Alexa & Google Assistant supported.
- 2K QHD Live View-Adopting a 2560 × 1440 resolution, Tapo C520WS provides 1.7 × more pixels and delivers sharper images than 1080p
- Starlight Color Night Vision-Adopting an F1.6 large-aperture lens and starlight sensor, Tapo C520WS captures more light and has higher photosensitivity, thus rendering brighter colors under lower light conditions than full-color night vision cameras with an F2.2 lens and ordinary sensor
- 360° Visual Coverage- Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots
- Free Person/Pet/Vehicle Detection-Smart AI identifies people, pets, and vehicles, notifying users as needed
- Customizable Sound and Light Alarm-Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away
- Secure Local & Cloud Storage-Save recorded videos to a microSD card† or by using Tapo Care** cloud services
- IP66 Weatherproof-Offers excellent waterproof and dustproof performance for outdoor scenarios
- Wired/Wireless Networking-Connect your camera to the network through WiFi or Ethernet for more flexible installation
Technical Specifications
| Type | IP security camera |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wireless |
| Auto-tracking | Y |
| Certification | CE, FCC, RoHS, RCM |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black,White |
| International Protection (IP) code | IP66 |
| Lens viewing angle, horizontal | 360 |
| Lens viewing angle, vertical | 130 |
| Number of sensors | 1 |
| Optical sensor size | 1/3 |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Maximum aperture number | 1.61 |
| Fixed focal length | 3.18 |
| Night vision | Y |
| Night vision distance | 30 |
| LED type | IR |
| Infra-red wavelength | 850 |
| Maximum resolution | 2560 x 1440 |
| Total megapixels | 4 |
| Video formats supported | H.264 |
| Supported graphics resolutions | 2560 x 1440 |
| Frame rate | 30 |
| Built-in speaker(s) | Y |
| Built-in microphone | Y |
| Ethernet LAN | Y |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Supported network protocols | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Bluetooth | N |
| Channel bandwidth | 2400 |
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 |
| DC-in jack | Y |
| Security algorithms | 128-bit AES,WPA-PSK,WPA2-PSK |
| Reset button | Y |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (typical) | 3.75 |
| Power consumption (max) | 7.65 |
| DC output voltage | 9 |
| DC output current | 0.85 |
| Operating temperature (T-T) | -30 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 0 - 90 |
| Width | 123.8 |
| Depth | 123 |
| Height | 90 |
| Package width | 160 |
| Package depth | 210 |
| Package height | 145 |
| Package weight | 740 |
| Number of cameras | 1 |
| Mounting kit | Y |
| Mounting brackets included | Y |
| Screws included | Y |
| Manual | Y |
Official Product Video
