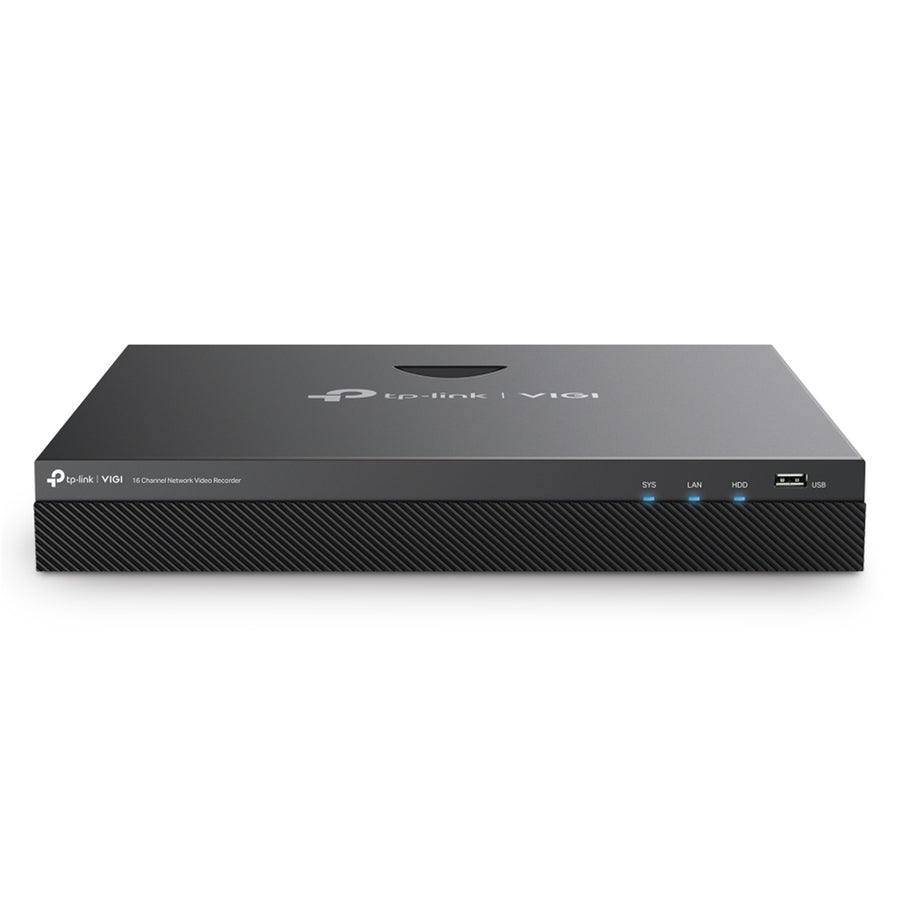

TP-Link TP LINK VIGI NVR2016H VIGI 16 Channel Network Video Recorder
TP-Link TP LINK VIGI NVR2016H VIGI 16 Channel Network Video Recorder
Overview
<b>Security Never Shuts Down</b><br><br><b>Every Angle All on One Screen</b><br>4K HDMI Video Output & 16MP Decoding Capacity<br>Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.β <br><br><b>Reviewing Footage is Faster than Ever</b><br>16-Channel Simultaneous Playback*<br>Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.<br><br><b>More Compression. More Savings. More Quality.</b><br>Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.<br><br><b>No Need to Check Long Compatibility Lists</b><br>ONVIF Ensures Compatibility<br>Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. β³<br><br><b>Plug & Play.</b><br>Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.<br><br><b>Security for Every Hour and Every Day</b><br>27/4 Continuous Recording<br>Automatically and continuously stores up to 20 TB of footage from connected cameras to secure your data for quick and convenient access.<br><br><b>Two-Way Audio</b><br>With voice intercom support, scare off any potential thieves or intruders from wherever you are.<br><br><b>Remote Management</b><br>Take full control over your security anytime and anywhere on the VIGI app or client.<br><br><b>Live Views and Real-Time Alerts</b><br>Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.<br><br><b>Easy & Smart Playback</b><br>Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.<br><br><b>Customized Monitoring Patterns</b><br>Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.<br><br><b>Four-Way Management</b><br>Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.<br><br><b>One system. Full security.</b><br>Run your business with peace of mind.<br>The VIGI professional surveillance system by TP-Link is dedicated to protecting the business youβve worked hard to build β whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Technical Specifications
| Video input channels | 16 |
|---|---|
| Number of simultaneously playbacked channels | 16 |
| Video recording modes | 720p,1080p |
| Maximum resolution | 3840 x 2160 |
| Supported resolutions | HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video motion detection | Y |
| Audio formats supported | G.711 A-law,G.711 ΞΌ-law,G.726 |
| Video formats supported | H.264,H.264+,H.265,H.265+ |
| Playback modes | Digital zoom,Fast play,Forward,Full screen,Pause,Play,Stop |
| Playback controls | Y |
| Maximum frame rate | 30 |
| Input bandwidth | 80 |
| Output bandwidth | 60 |
| Recording modes | Manual,Schedule |
| Wi-Fi | N |
| HDD capacity | 0 |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 10 |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| eSATA | Y |
| Line-in | Y |
| Audio output | 1 |
| DC-in jack | Y |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Reset button | Y |
| Product colour | Black |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Power consumption (max) | 24.16 |
| Output current | 3.3 |
| Output voltage | 12 |
| Operating temperature (T-T) | -10 - 55 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 10 - 90 |
| Width | 330 |
| Depth | 285 |
| Height | 45 |
| Weight | 1900 |
| Package weight | 3200 |
