Features
Big Picture & Big Details
The dual-lens camera captures both full-view and close-up images of the same event synchronously, and presents them on the same screen!
Auto Track & Auto Focus
The dual-tracking camera can pan, tilt (up to 355°H, 90°V) to auto track the object and show it in both the panoramic and zoomed views.
4K Brings You Closer to Reality
The camera with 4K 8MP Ultra HD resolution captures images with great details. Discover more when zooming in.

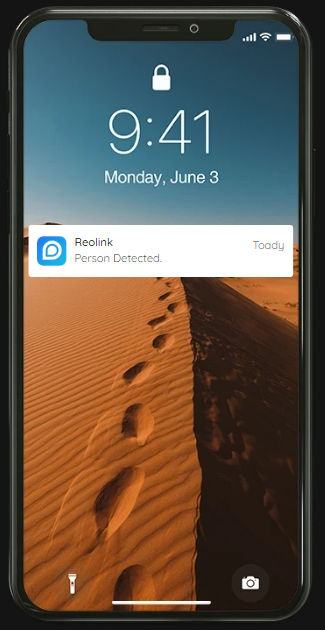

Smart Detection & Two-Way Audio
TrackMix PoE can distinguish people, vehicles and pets* from other objects, providing more accurate alerts. Plus, you can talk back via the camera's built-in mic and speaker.
Two Night Vision Modes
When its spotlights are on, TrackMix PoE provides full-color night vision. Even when there's no light at all, its infrared LED still enables high-quality night recording videos.

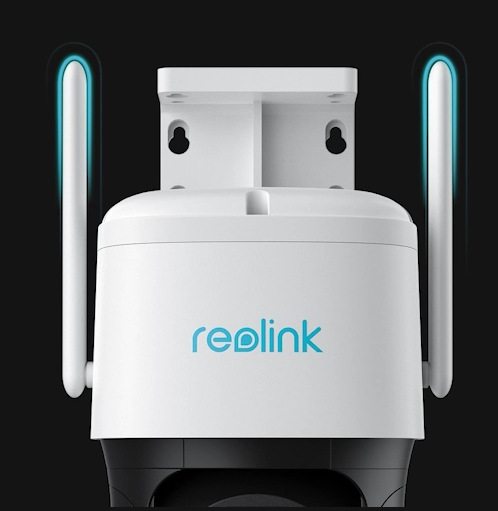

Dual-Band WiFi
TrackMix WiFi supports both 2.4GHz and 5GHz (5.8GHz) frequencies to ensure stronger signal and more smooth live view. Flexible to choose, easy to set up.
Have Fun with Time Lapse
TrackMix PoE supports time-lapse video recording, you can film snow piling up in your backyard, or record construction process in minutes.

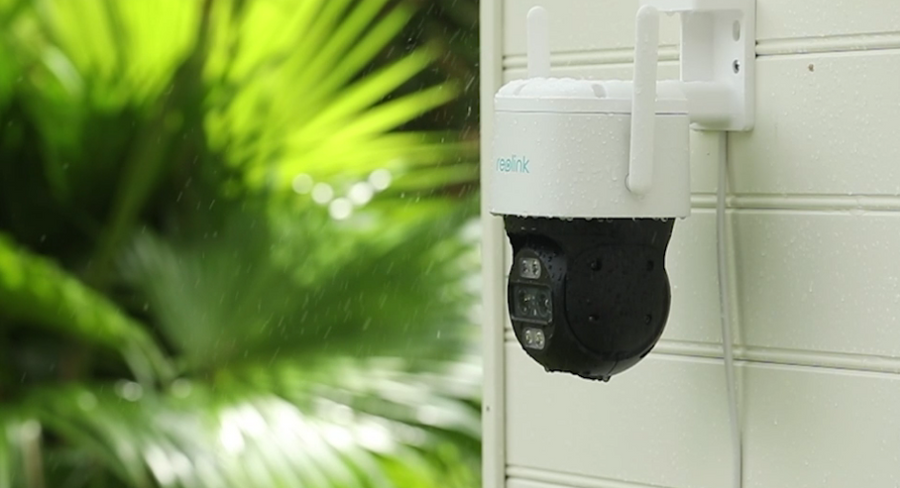

Stay Strong, Stay Weatherproof
The rugged housing and body make this Reolink smart IP camera waterproof. It works perfectly both inside and outside your house, in any harsh weather conditions.

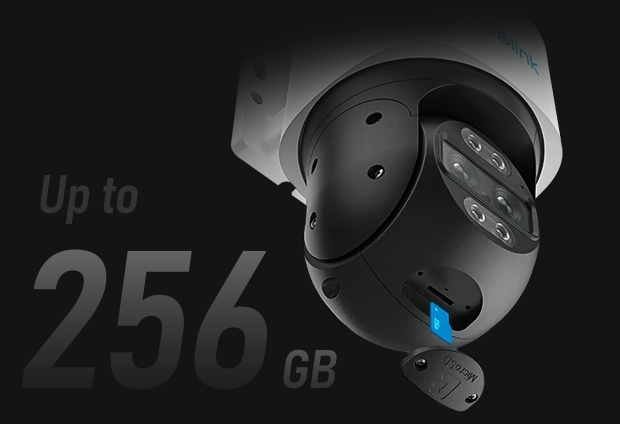

Multiple Recording Options
This smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings. All the videos can be saved to the micro SD card, Reolink NVR or FTP server. Choose a way you like and enjoy customized security.
Control Your Cameras, Hands-Free
As easy as saying "Hey Google, show me the backyard", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.
Specifications
Technical Specifications
| Image Sensor | 1/3"+1/2.8" CMOS Sensors |
|---|---|
| Video Resolution | 3840 x 2160 (8 Megapixels) @ 20fps1920x1080((2 Megapixels) @ 20fps |
| Lens | f=2.8mm @ F=1.6, f=8mm @ F=1.6 |
| Video Compression | H.264, H.265 |
| Field of View | Horizontal: 104°-38°Vertical: 60°-21° |
| Zoom | 6× Hybrid Zoom |
| Infrared Night Vision | Up to 30 Meters (100ft); LED: 2pcs/850nm (Auto-switching with IR-cut filter) |
| Color Night Vision | With Spotlights: 2pcs/4W/6500K |
| Frame Rate | Main Stream: 4fps - 20fps(default: 20fps)Sub Stream: 4fps - 20fps(default: 10fps) |
| Code Rate | Main Stream: 2048Kbps -5120KbpsSub Stream: 128Kbps -1128Kbps |
| Audio | Two-way Audio |
| DC Power | DC 12.0V⎓2A |
| Power | DC power port |
| Reset Button | YES |
| Ethernet Port | One 10M/100Mbps; RJ45 |
| SD Card Slot | Supports Max. 512GB microSD Card |
| Audio In/Out | Built-in Microphone and Speaker |
| PT Angle(Max.) | Pan: 355°, Tilt: 90° |
| Pan Speed | 90/8°-90°/s (Speed Adjustable) |
| Tilt Speed | 60/8°-60°/s (Speed Adjustable) |
| Preset Points | Supports 1 Guard Point & up to 64 Patrol Points |
| Power-off Memory Function | YES |
| Auto Tracking | YES |
| Wireless Standard | IEEE 802.11 ac/ax/a/b/g/n |
| Operating Frequency | 2.4GHz/5GHz Dual-Band Wi-Fi 6 |
| Wireless Security | WPA/WPA2/WPA3 |
| Browsers Supported | Edge, Chrome, Firefox, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Protocols & Standards | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| User Access | Max. 20 users (1 admin & 19 users);Max. 12 simultaneous streams (2 main & 10 sub streams) |
| Smart Alarm | Motion detection; Person Detection/Vehicle Detection/Animal Detection |
| Time Lapse | YES |
| Smart Home Compatibility | Google Assistant |
| Record Mode | Motion-triggered Recording (Default); Scheduled Recording; 24/7 Recording |
| Operating Temperature | -10°C~+55°C (14°F~131°F) |
| Operating Humidity | 10% ~ 90% |
| Weatherproof | YES |
| Dimensions | 228.2*147*129mm |
| Weight | 1.21KG |
