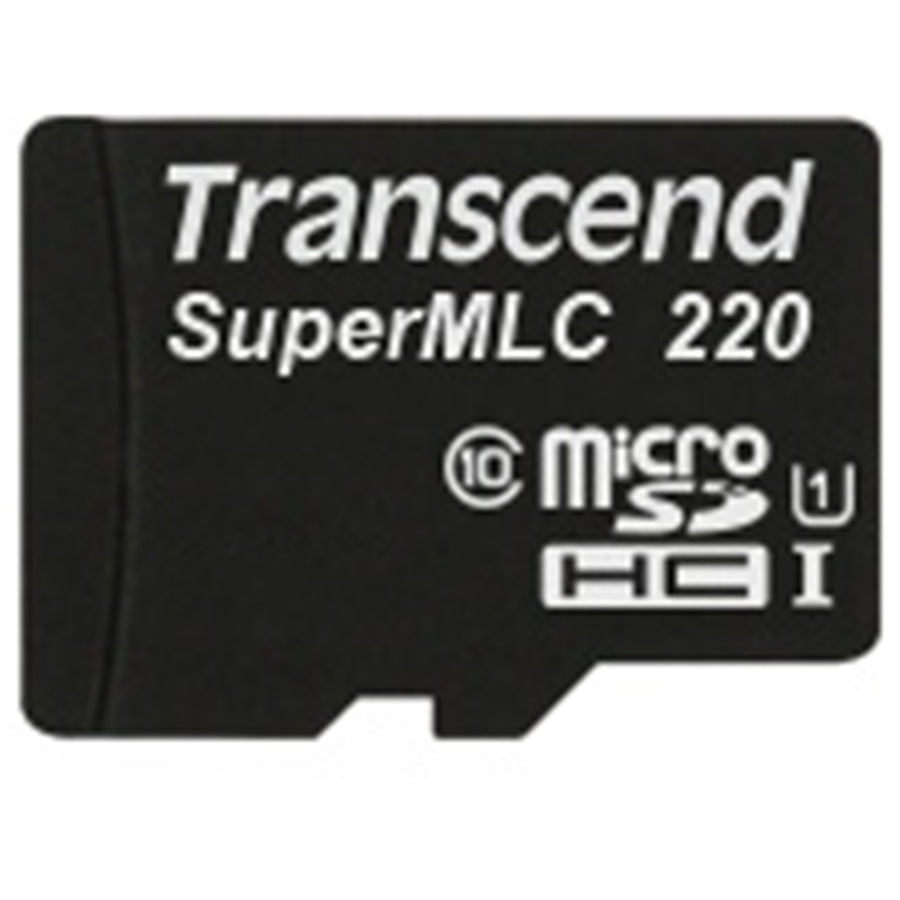

Transcend Embedded 2GB microSD, SLC mode, Wide Temp. MLC

SKU: TS2GUSD220I ● In Stock

$33.39 ~~$42.16~~

Free shipping over $299 Genuine product 7-day returns

Features

SLC mode is a cost-effective technique that can improve performance by operating like an SLC NAND flash. The USD220I operates over a wide temperature range (-40°C ~ 85°C) and can also provide excellent durability, making it suitable for high-write applications such as medical equipment, surveillance systems, and POS.

Firmware features

- ECC function
- Early Move
- Supports S.M.A.R.T. functionality to monitor, analyze, and report storage device status
- Wear leveling

Hardware features

- RoHS 2.0 Directive Compliant Products
- Electrostatic discharge immunity (IEC 61000-4-2)
- Conforms to SD 3.01 standard
- High-quality MLC NAND flash and SLC mode (aka SuperMLC) for superior durability and reliability
- Can operate in a wide temperature range of -40°C~85°C
- Scope Pro Software

Specifications

Technical Specifications

size	11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form factor	microSD card
Flash Type	MLC NAND Flash (SLC mode)
capacity	2 GB
Operating voltage	2.7V ~ 3.6V
Drop test	1.5m free fall
Wide-range temperature	-40°C (-40°F) ~ 85°C (185°F)
Storage temperature	-40°C (-40°F) ~ 85°C (185°F)
humidity	0% ~ 95%
Shockproof	Acceleration: 490 m/s² (holding time: 11 ms, half sine, velocity change: 3.44 m/s)
Vibration resistance (operating)	20 G (max amplitude), 20 Hz ~ 2,000 Hz (frequency)
Power consumption (max)	0.72 watts
Read (max)	Up to 80 MB/s
Write (max)	Up to 45 MB/s
TBW [Total Write Capacity]	Up to 300 TBW
