TRIAX

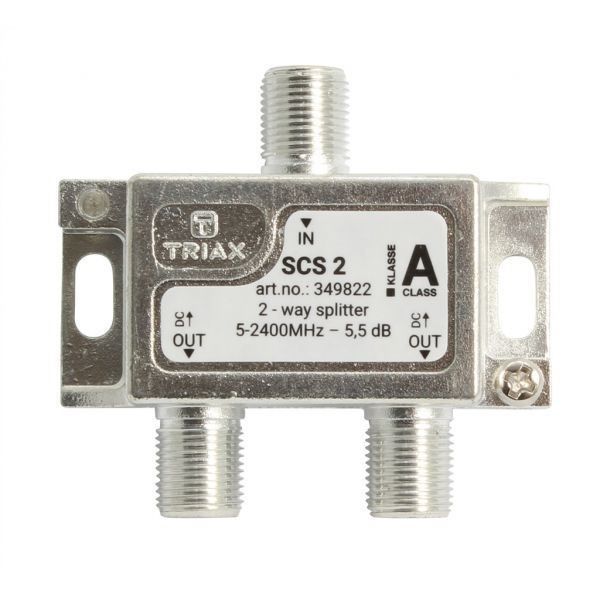

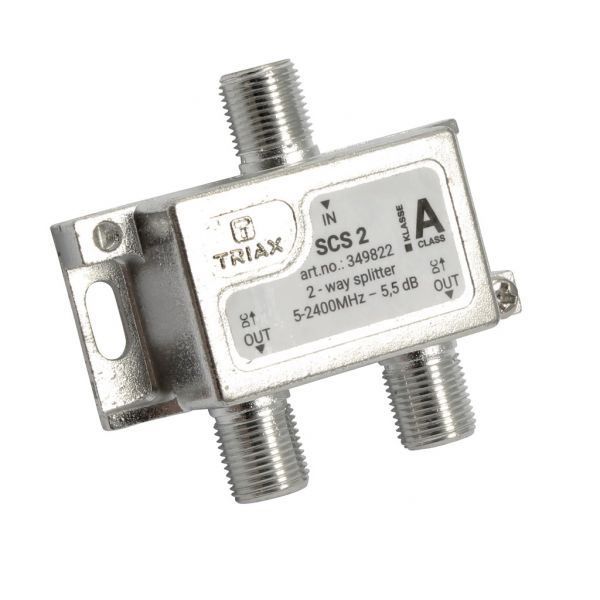

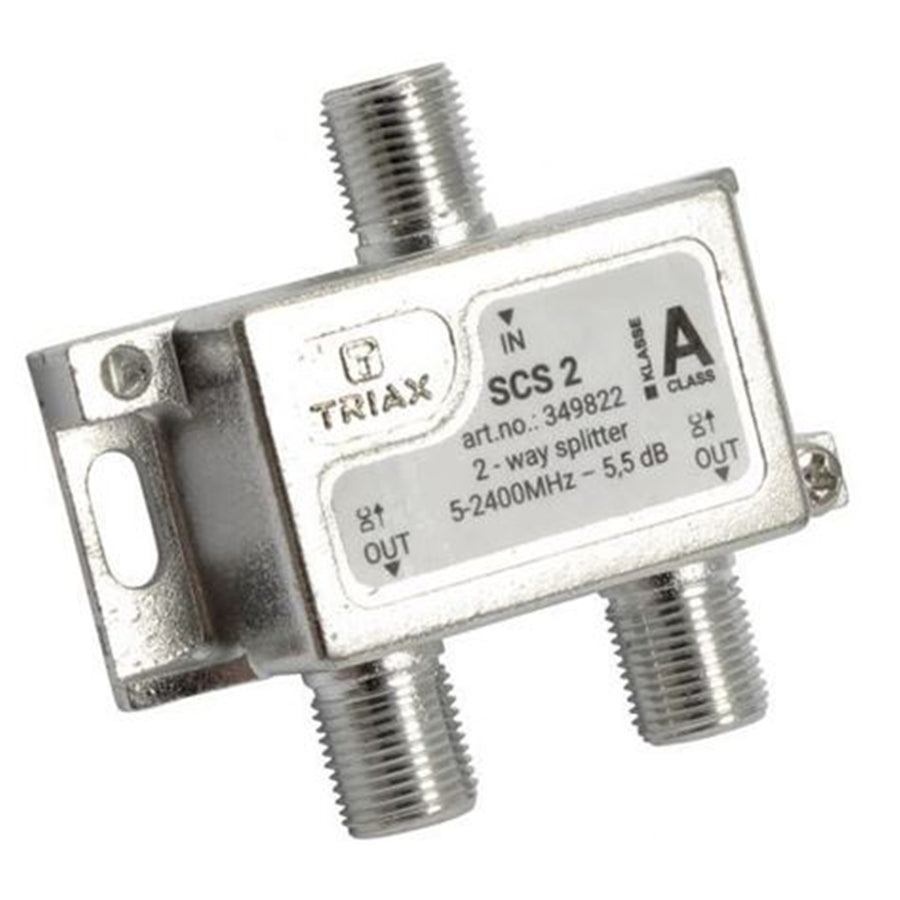

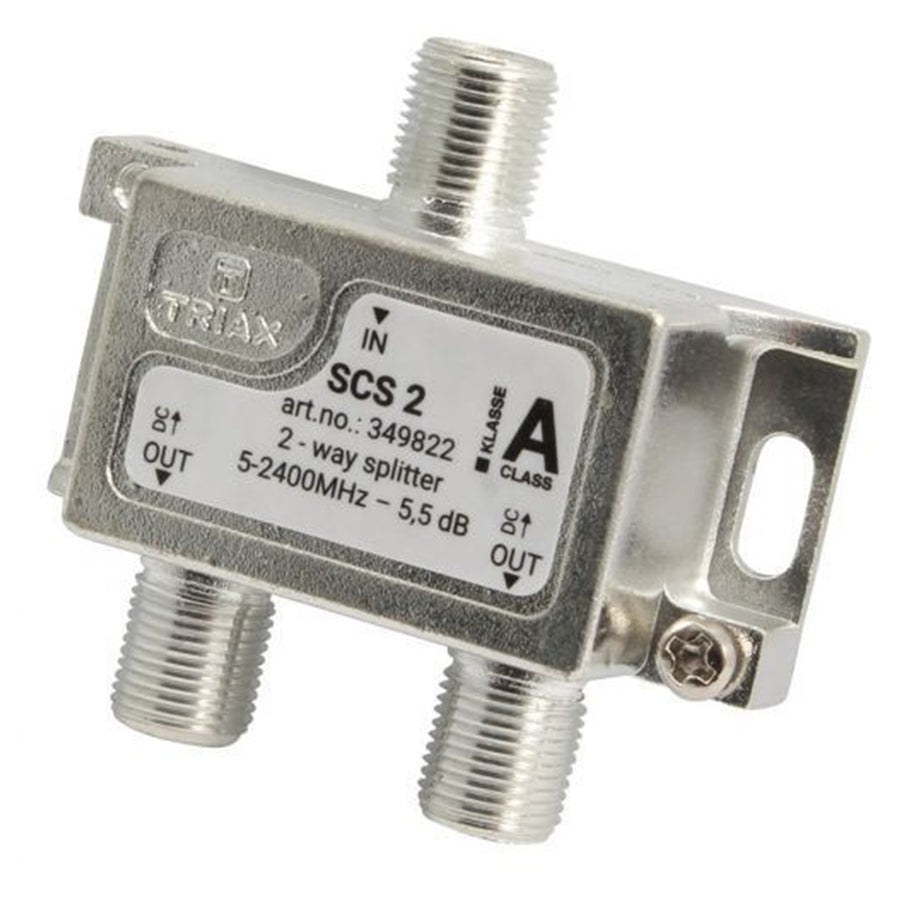

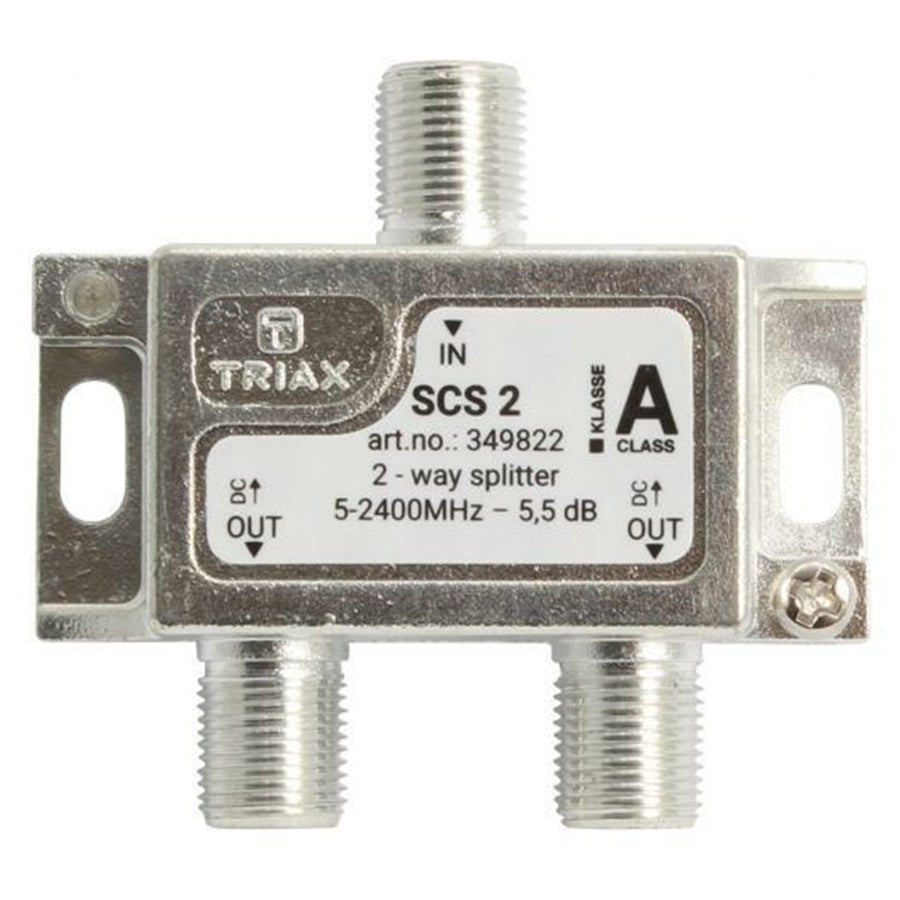

TRIAX 349822 - RF 2-Way Splitter 2.4GHz. Coaxial Splitter for SAT-IF & MATV Distribution Networks.
$15.65
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
TRIAX RF 2-Way Splitter, 2.4GHz. Coaxial Splitter Ideal for SAT-IF & MATV Distribution Networks. Frequency Range 5-2400 MHz. DC Pass Via Diodes from all Outputs. High Shielding Against Ingress Noise.
TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.
- Frequency range 5-2400 MHz
- DC pass via diodes from all outputs
- High shielding against ingress noise like radiated by LTE mobile
- High quality die-cast housing tin (Sn) coated with solder shield bottom plate
- Grounding clamp terminals
Specifications
Technical Specifications
| Frequency range | 5~2400MHz |
|---|---|
| Application | SAT-IF, MATV 2.4Ghz +DC (out->in) |
| Screening Efficiency | EN50083-2 (Class A) |
| DC Passthrough | Yes (max. 0.5A/24V) |
| Certification | EN 50581:2012 (RoHS II) |
| Environment | Indoor |
| Temperature - operating | -30°C~+60°C |
| Insertion loss (in-out) | 5~40Mhz 4.4dB |
| Insertion loss (in-out) 40~1000Mhz | 4.0dB |
| Insertion loss (in-out) 1000~2150MHz | 5.5dB |
| Insertion loss (in-out) 2150~2400Mhz | 6.0dB |
| Isolation (tap-tap) 5~40MHz | 22dB |
| Isolation (tap-tap) 40~1000MHz | 25dB |
| Isolation (tap-tap) 1000~2150MHz | 24dB |
| Isolation (tap-tap) 2150~2400MHz | 22dB |
| Return loss (in-out) 5~40MHz | 11.5dB |
| Return loss (in-out) 40~1000MHz | 15.0dB |
| Return loss (in-out) 1000~2150MHz | 12.0dB |
| Return loss (in-out) 2150~2400MHz | 11.0dB |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Connector Type | F-female (IEC 61 169-24) |
| Main material | Zinc diecast/Sn plated |
| Packaging | Polybag |
| Packing QTY | 1 |
| Product Height | 47mm |
| Product Width | 52mm |
| Product Depth | 17mm |
| Packaging Height | 0.052m |
| Packaging Width | 0.057m |
| Packaging Depth | 0.017m |
| Packaging Volume | 0.000m |
| Net Weight | 0.035kg |
| Tara Weight | 0.003kg |
| Total Weight | 0.038kg |
| Impedance | 75? |
| Shielding efficiency VHF/UHF | >85dB |
| Brand | TRIAX |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.014 kg |
| Warranty |
|---|
