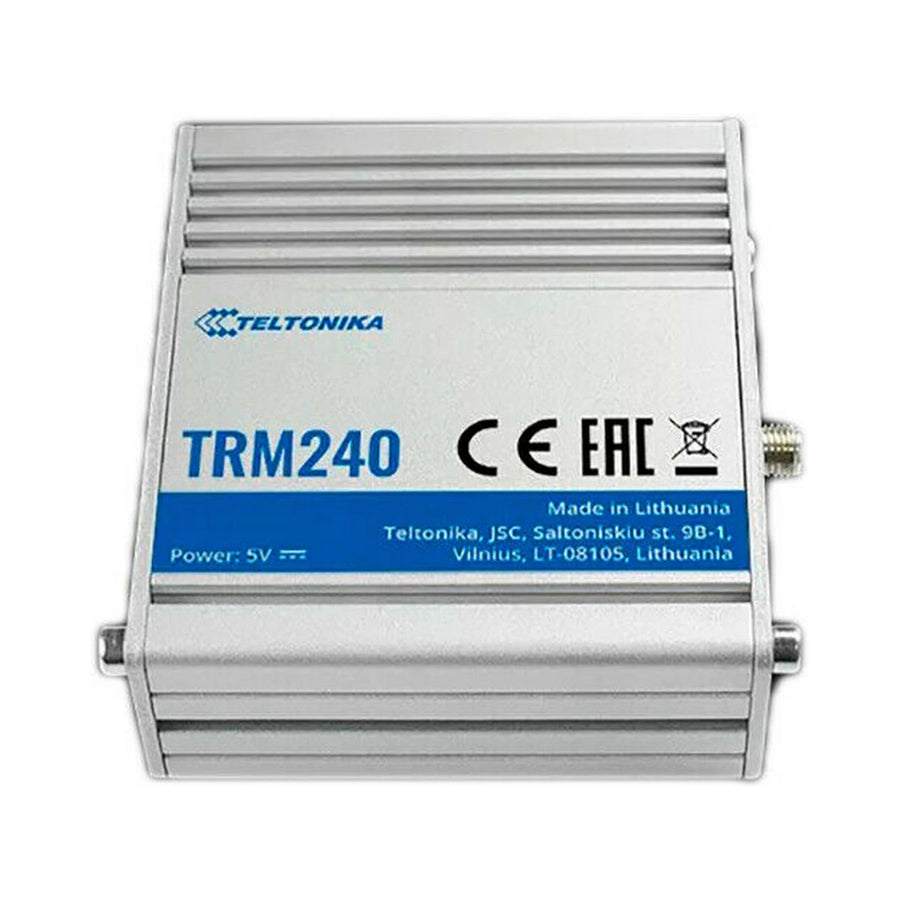

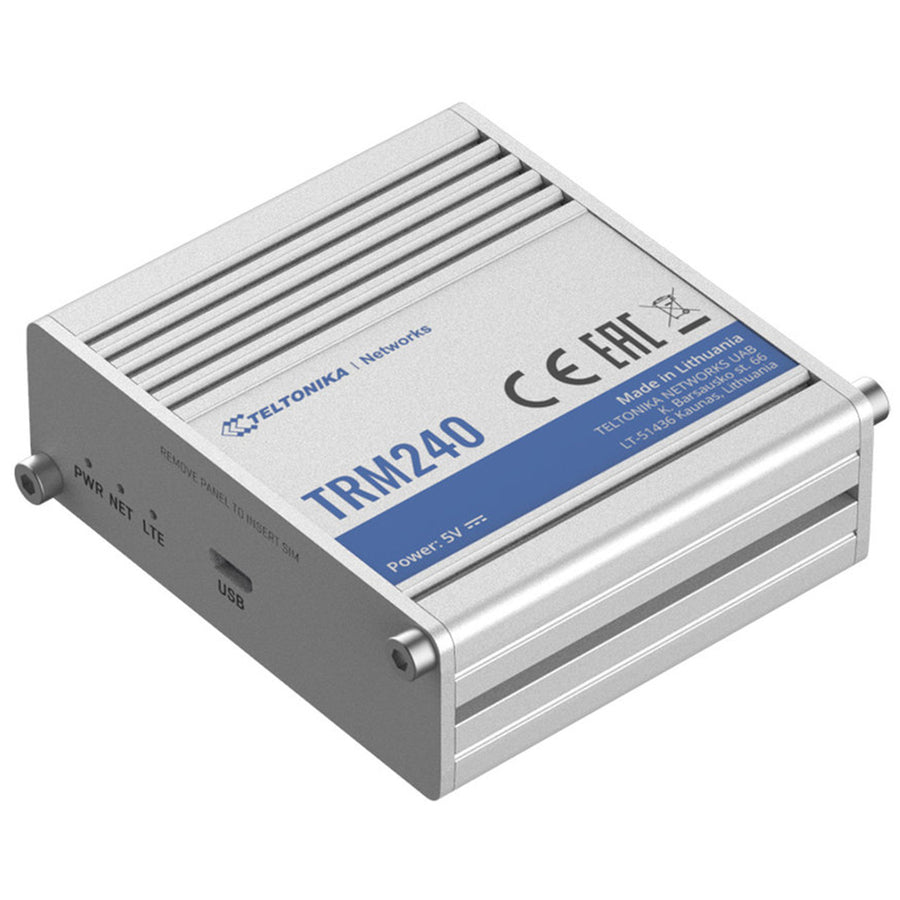

Teltonika TRM240 4G LTE Cat 1 Industrial IoT Modem
Features
The Teltonika TRM240 Industrial Cellular LTE Cat 1 Modem, is a compact and simple connectivity device able to provide cellular capabilities to equipment across all market segments. It is backwards compatible to 3G and 2G therefore it is the universal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructure. It offers a long and stable lifecycle important for IIoT projects, because you can use conventional cellular technologies and enjoy more cost-efficient data plans using LTE Cat 1. TRM240 comes with a USB interface for power & communication, drivers supporting all relevant platforms and one SMA connector for an external antenna to obtain better signal coverage.
- LTE Cat 1 for M2M/IoT communications
- Low power consumption
- Rugged aluminium housing
- Compact size, easy integration
- Device is accessible and configurable via USB
- External antenna for better signal coverage
Specifications
Technical Specifications
| Product code | TRM240 |
|---|---|
| Mobile | LTE (Cat1) / 3G / 2G |
| SIM | Mini SIM (2FF) |
| Power consumption | 3.2W Max |
| Management Software | Windows Connection Manager (NDIS driver) |
| USB Serial Driver | Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x |
| Protocols | TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
| Management Interfaces | AT Commands (3GPP TS27.007, 3GPP TS27.005), Hayes AT Command set, Enhanced AT Commands |
| Casing | Aluminium housing |
| Dimensions | 74,5 x 64,5 x 25mm |
| Operating Temperature | -40 C to 75 C |
| Operating Humidity | 10% to 90% non-condensing |
| Brand | Teltonika |
|---|---|
| Product Type | Networking |
| Weight | 0.3 kg |
| Warranty |
|---|
