TRYX LUCA L70 Tempered Glass ATX Mid Tower Case - White
Features
LUCA L70
Redefining Artistic Precision


Seamless Viewing Experience

6000 Series Anodized Aluminum Frame
The subtle metallic glow of the anodized aluminum enhances the overall aesthetic, lending a sophisticated and modern feel.
The chassis features a robuest base and frame crafted from 6000 series anodized aluminum, ensuring exceptional strength and stability. Additionally, the side panels are made from 2mm 5000 series anodized aluminum, providing a lightweight design and easy installation.

X-Shaped Floating Base Design Raised by 40mm
Luca's unique x-shaped base design elevates the chassis by 4cm, significantly enhancing air intake improving cooling while creating a floating visual effect

Refines Aluminum Handle With TRYX Themed Nameplate

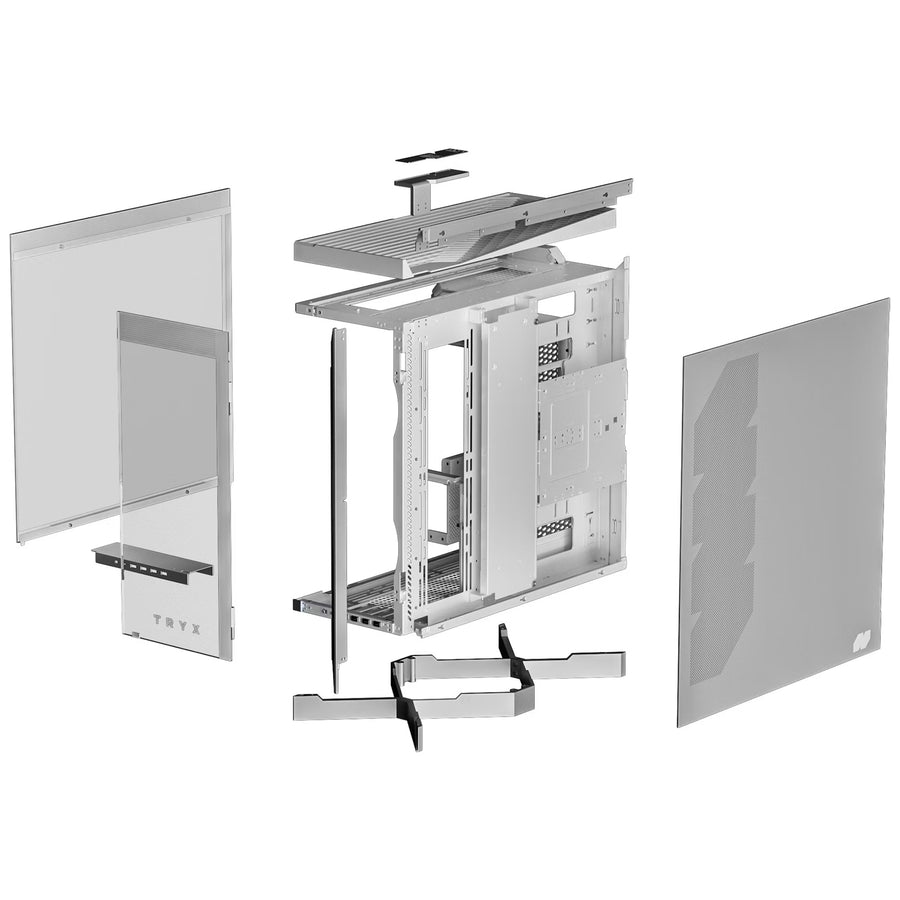

Modular Design
The flexible psu placement accomodates different spatial and aesthetic preferences, ensuring luca adapts and evolves with diverse build requirements

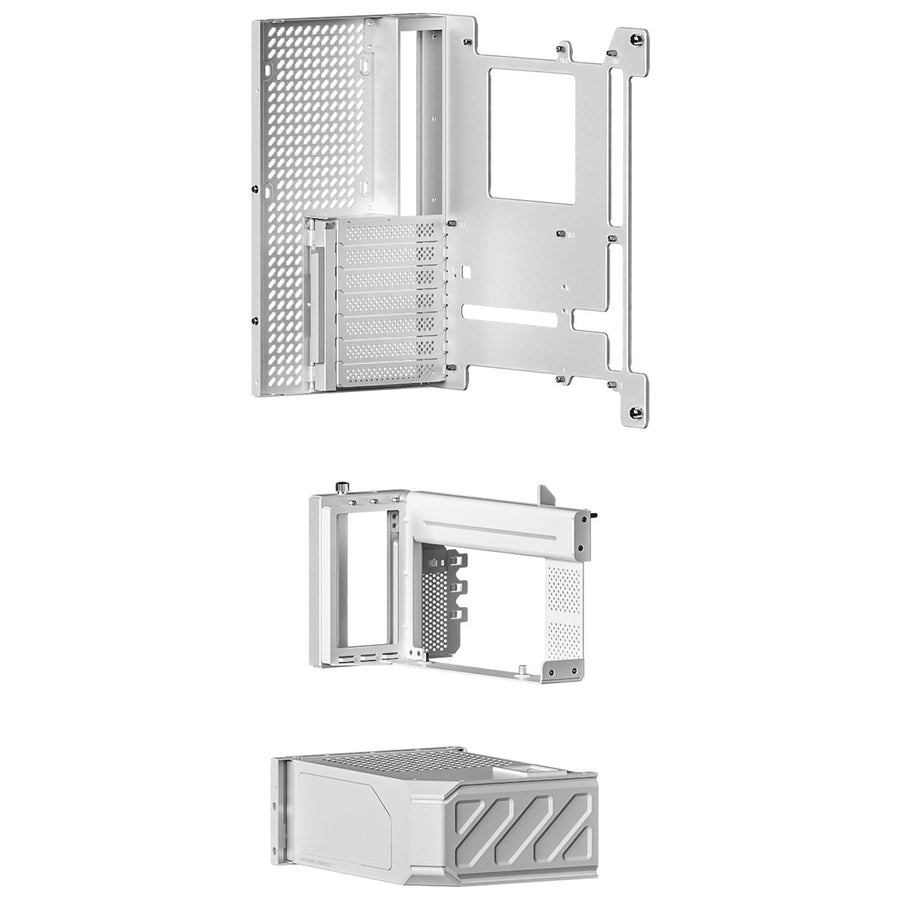

Adjustable Motherboard Tray
The adjustable motherboard tray eases installation by allowing the motherboard, cpu and cpu cooler to be mounted independently.

Quick-Access Front Panel
The hinged front panel makes accessing and changing your interior configuraion easy without tools

Tool-Free Assembly
A tool-free design simplifies assembly, upgrades, and maintenance making it user-friendly for everyone from beginners to experts

High Compatibility
LUCA L70 is compatible with various component sizes accomodating a wide range of hardware


Type-C Fast Charging
LUCA features a versatile I/O panel, Including a USB 3.2 Gen 2x2 Type-C connector, Offering data transfer rates of up to 20 Gbps and up to 60W fast charging (PD), Providing efficient data and power delivery when needed
- 20Gbps Data Transferring Speed
- 60 Watts Fast Charge
Note: Compatible motherboard required

Eco-friendly Packaging
Transforms into a cat house

Specifications
Technical Specifications
| MODEL | LUCA L70 |
|---|---|
| SIZE (LxW×H) | (L)540 × (W)262 × (H) 572 mm |
| MATERIAL | Steel, 4.0mm TG, Aluminum, Plastic, Stainless steel |
| MOTHERBOARD SUPPORT | E-ATX (280mm Maximum)/ATX/Micro-ATX/Mini-ITX |
| EXPANSION SLOTS | 7 |
| INPUT/OUTPUT PORTS | 1 × Power button, 4 × USB 3.2 GEN1, 1 × USB 3.2 gen 2x2 TYPE C, 1 × Audio/Speaker |
| FAN SUPPORT | Top: 2 × 120 mm / 2 × 140 mm (bottom PSU placement: 3 × 120 mm / 3 × 140 mm)Side: 3 × 120 mm / 3 × 140 mmBottom: 3 × 120 mm / 3 × 140 mm (top PSU placement: 1 × 120 mm / 1 × 140 mm)Rear: 1 × 120 mml |
| RADIATOR SUPPORT | Top: 240 mm (bottom PSU placement: 240 / 280 / 360 / 420 mm)Side: 240 / 280 / 360 / 420 mmBottom: 240 / 280 / 360 mm (top PSU placement: 120 mm) |
| STORAGE | Up to 2 × 3.5" HDD or 9 × 2.5" SSD |
| CPU COOLER HIGHT CLEARANCE | 170mm Maximum |
| POWER SUPPORT | ATX, 190mm or less |
| GPU SUPPORT | 460mm Maximum |
| CABLE MANAGEMENT SPACE | 63mm |
| NET WEIGHT | 16.2 KG |
| GROSS WEIGHT | 19.6 KG |
| Brand | TRYX |
|---|---|
| Product Type | PC Parts |
