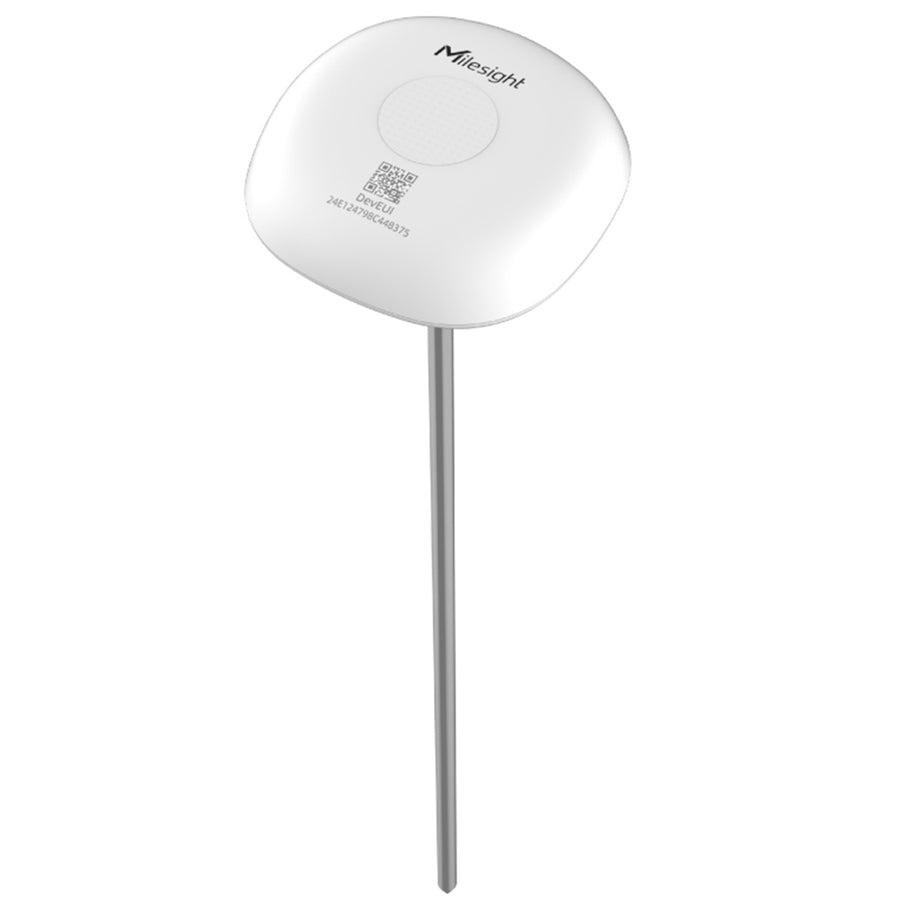

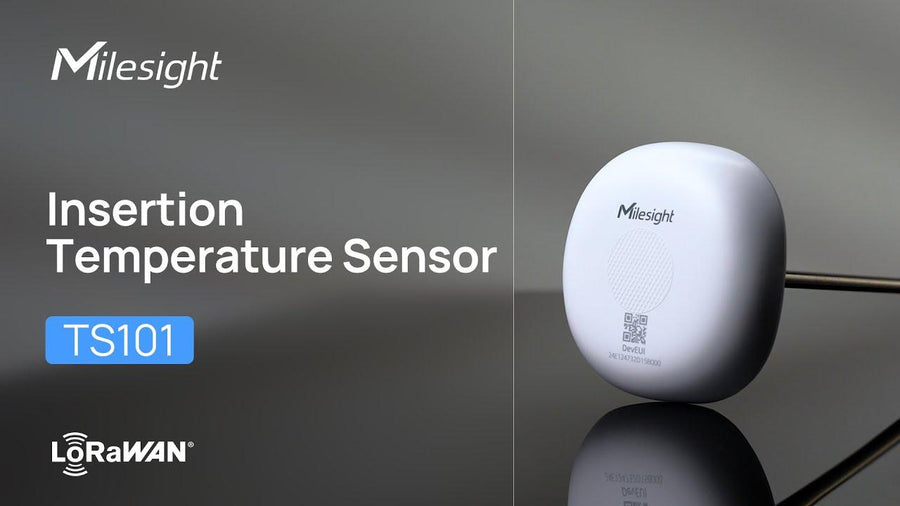

TS101-915M - Milesight TS101 LoRaWAN AU915/AS923 Insertion Temperature IoT Sensor

Milesight TS101 LoRaWAN AU915/AS923 Insertion Temperature IoT Sensor

The Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. It is equipped with an advanced measuring unit that provides a wide temperature measuring range. With IP67 and IK10 ratings, the TS101 sensor is suitable for monitoring the inner temperature of Tobacco, Hay, Silage or grain stacks. It can also be applied in other warehousing scenarios which require inner temperature detection with high efficiency. With its low power consumption technology, the TS101 can work for up to 10 years with a 4,000mAh battery. Combined with Milesight LoRaWAN® gateways, Milesight IoT Cloud or the Scopious Network, users can manage all sensor data remotely and visually.

- Equipped with highly accurate and stable DS18B20 temperature sensor chip with high resolution
- Adopt food-grade stainless-steel probe and shell material for efficient and safe detection
- Store up to 1200 sets of data locally and support data retrievability and retransmission
- IP67 and IK10 rated and phosphine corrosion-resistant for harsh environment
- Built-in 4000 mAh replaceable battery and works for up to 10 years without replacement
- Integrated and compact design for wireless deployment
- Built-in NFC for easy configuration
- Compatible with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution

Precise and Accurate Temperature Monitoring

Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. With an advanced measuring unit that provides a wide temperature measuring range, TS101 provides high precision and reliable consistency.

Safe and Hygienic

The housing and probe are made of food-grade materials, with an ABS+PC main body and a 316 stainless steel probe, ensuring the device is safe to use and compliant with safety regulations.

Exceptionally Durable

This device is designed to withstand even the toughest environments. With an IP67 waterproof rating and resistance to phosphine corrosion, TS101 can withstand harsh environment, especially for tobacco storage where needs sanitizing frequently.

Impact-Resistant

TS101's tranceiver is rated IK10 for impact resistance, making it a robust and reliable option for use in challenging environments where it may be subject to knocks, bumps, or other impacts.

Data Integrity

and Easy Management
TS101 can store up to 1200 sets of historical data records locally. TS101 also support Data Retrieval and Retransmission to avoid data loss and ensure data integrity.

Long-Lasting and Low-Maintenance

With a battery life of up to 10 years, TS101 is the device that you can set it and forget it, making it a cost-effective and hassle-free option.

LoRaWAN® Based

- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
