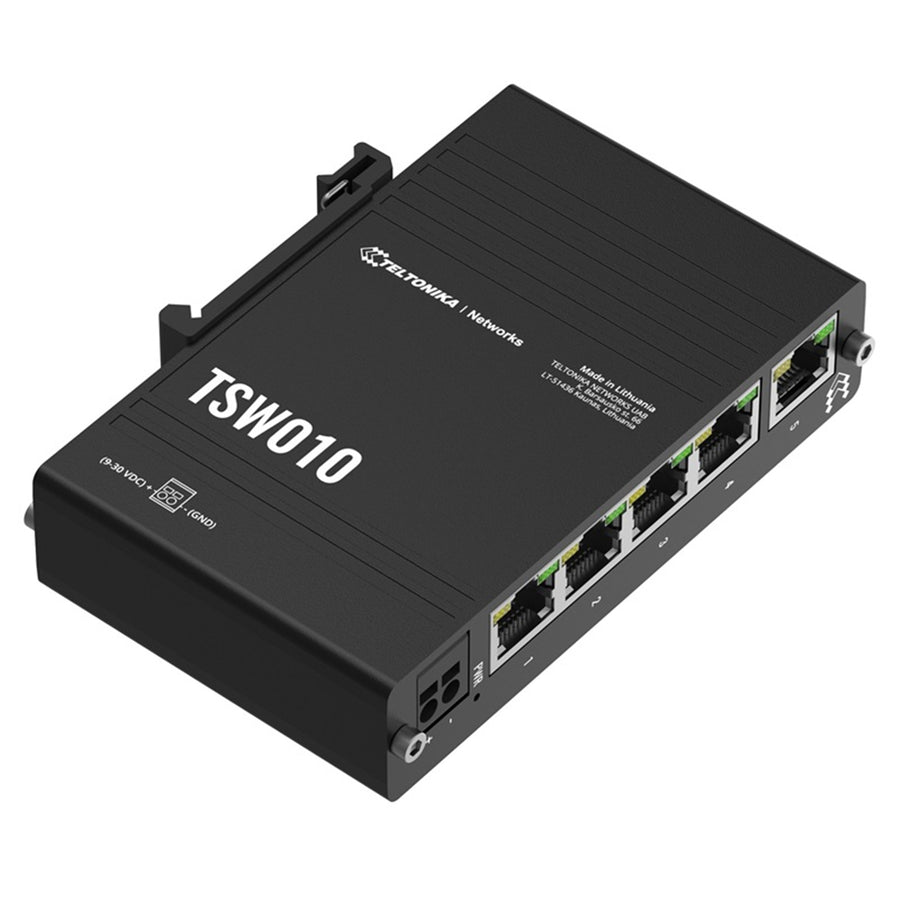

TSW010 - Teltonika TSW010 Din Rail Switch 5 x 10/100 Ethernet ports
TSW010 - Teltonika TSW010 Din Rail Switch 5 x 10/100 Ethernet ports
Teltonika

TSW010 - Teltonika TSW010 Din Rail Switch 5 x 10/100 Ethernet ports

SKU: TSW010 ● In Stock
$57.38$65.26
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

PLUG AND PLAY

No additional configuration needed

MOUNTING

Integrated DIN rail bracket and surface mounting options

INDUSTRIAL DESIGN

Anodized aluminum housing and panels

ETHERNET

5 x Ethernet ports with speeds of up to 100 Mbps

Specifications

Technical Specifications

ETH 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards 802.3i, 802.3u, 802.3x, 802.3az
Profinet Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking) 1 Gbps
MAC address table size 2K entries
Jumbo frame support 2048 bytes
Connector 2-pin industrial DC power socket
Input voltage range 9 - 30 VDC
PoE (passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: 0.3 W / Max: 0.9 W
Ethernet 5 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs
Power 1 x 2-pin industrial DC power socket
Casing material Aluminium housing
Dimensions (W x H x D) 113.1 x 27.4 x 80.5 mm
Weight 146.5 g
Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature -40 °C to 75 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP30
