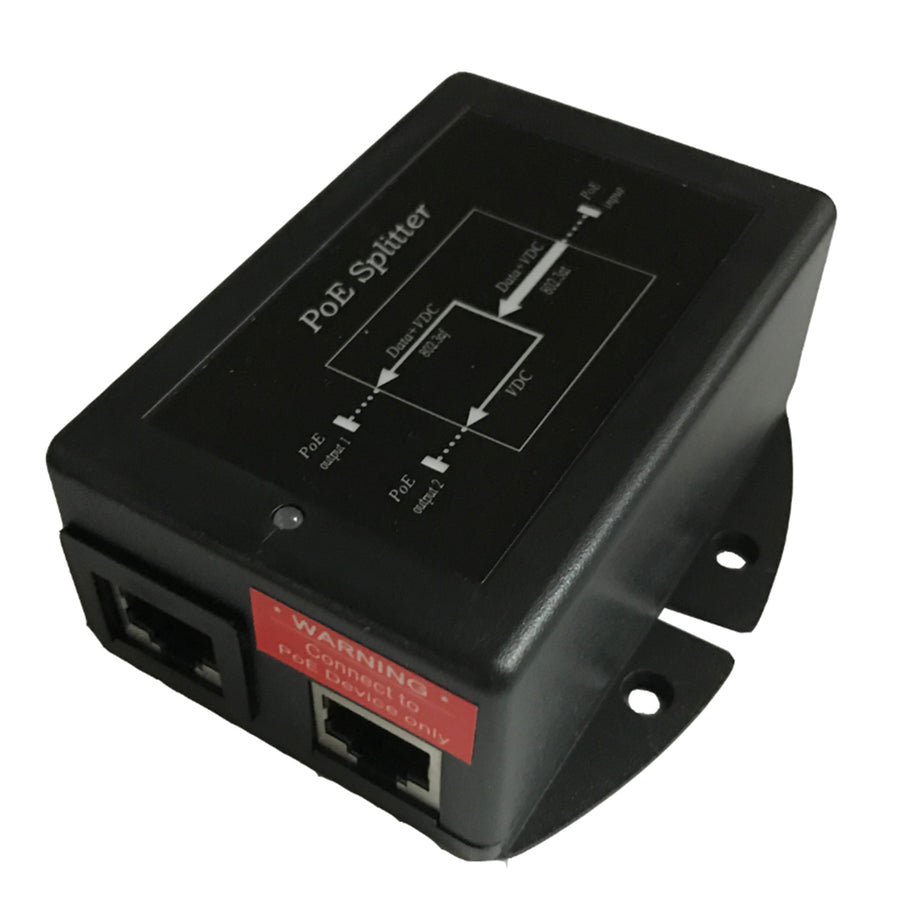

Tycon Systems POE-SPLT-48G-VUB - Tycon Power Gigabit Ethernet 802.3at POE Into Dual 802.3af and Passive POE Out Splitter
Features
- 802.3at PoE input , 802.3af and Passive PoE outputs
- Gigabit Compatible
- Extended Temperature Range: -40 to +70C
- Short Circuit and Over Current Protection
The POE-SPLT-48G-VUB is an active splitter which accepts an 802.3at Mode A/B or passive PoE (2 or 4 pair) input and provides two PoE outputs. Output 1 is an 802.3af Mode B PoE output with Data and PoE. Output 2 is a 48V Passive PoE Mode B output with PoE only, no data. The splitter is designed to supply power and data to one device and power only to the second device. It is Gigabit compatible providing speeds to 1000MB. There are various protections for short circuit, overload and low voltage disconnect.
Specifications
Technical Specifications
| Brand | Tycon |
|---|
| Brand | Tycon Systems |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
