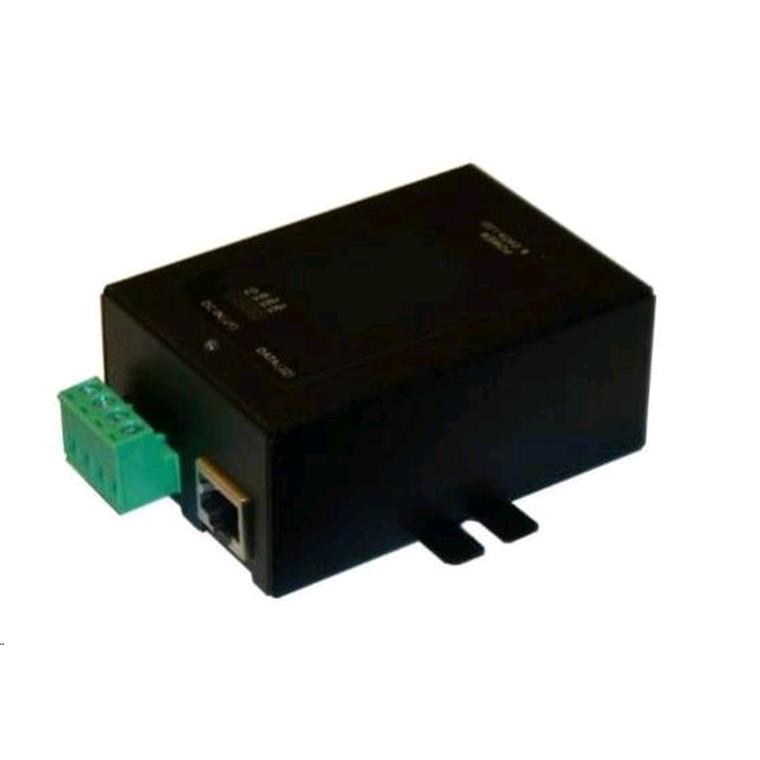

Tycon Systems TP-DCDC-1248GD-M - Tycon 9-36VDC In, 48VDC 802.3af Out DC to DC Converter

The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload.

- Industrial Grade Metal Housing
- Input Voltage 12VDC or 24VDC or 48VDC
- IEEE 802.3af/at compliant POE output
- Dual Inputs for connecting 2 power sources
- Integrated 10/100/1000MB POE Inserter
- High Power up to 35W
- Low self consumption power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact size - Maximize Available Space
- Applications: 12V / 24V / 48V Battery Systems, Vehicle Applications, Wireless Access Points and Client Devices, IP Phone and Security Camera Systems
