Ubiquiti

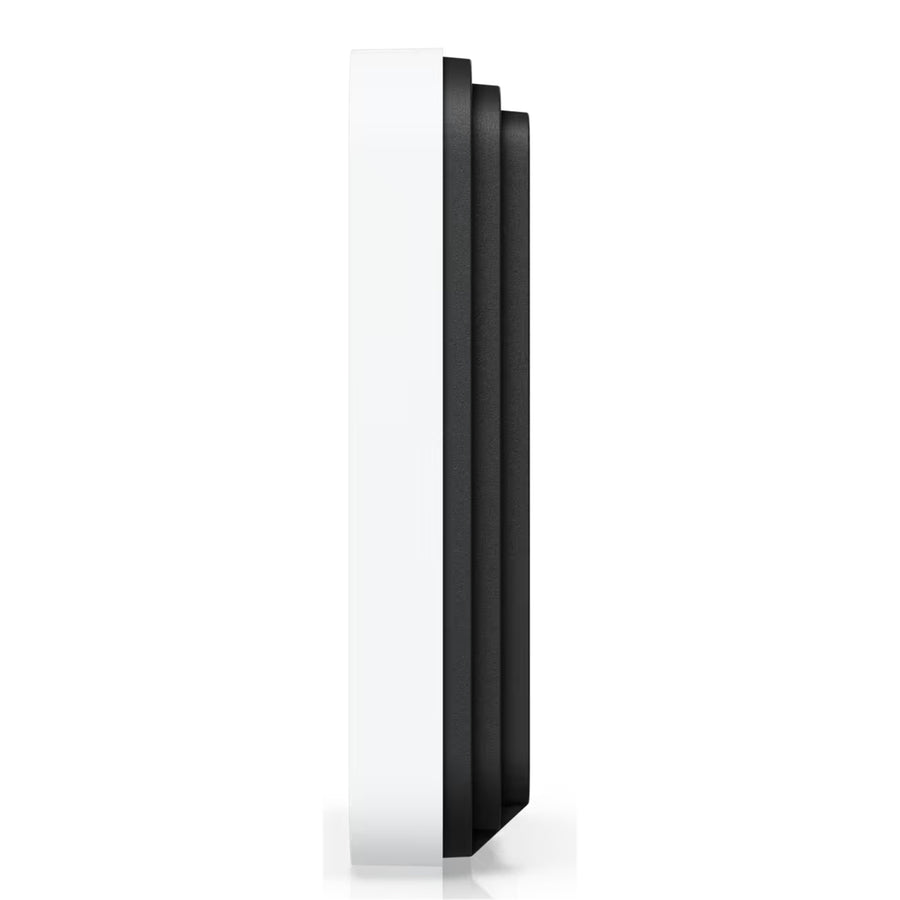

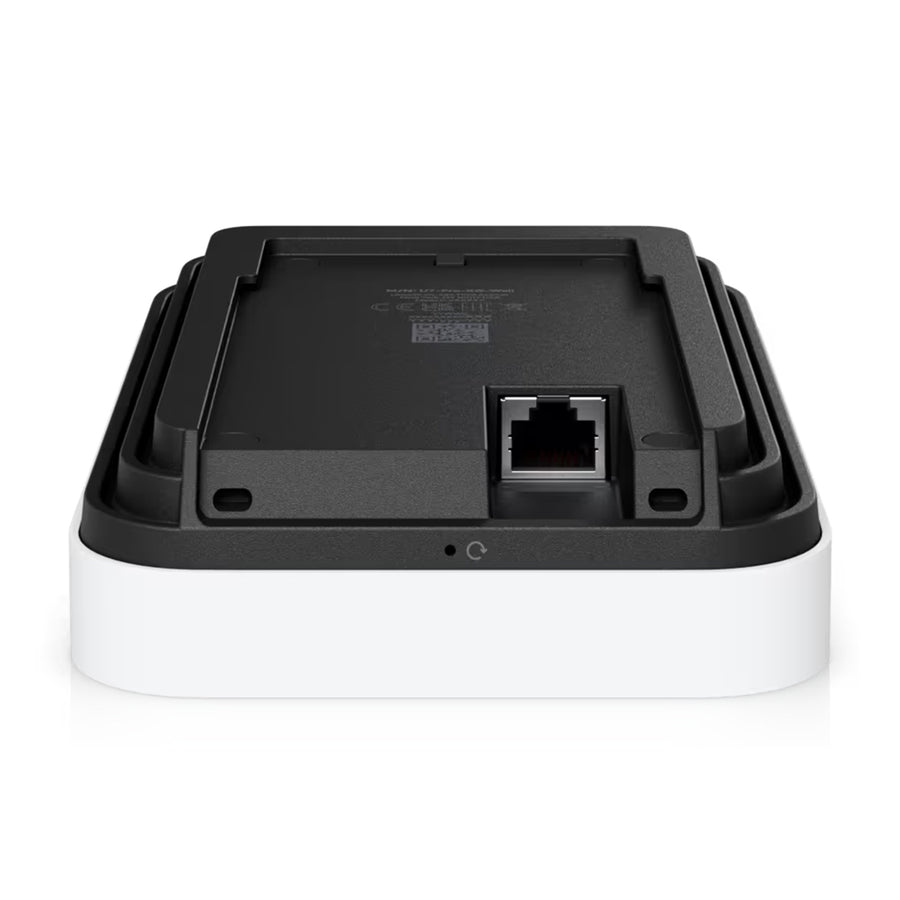

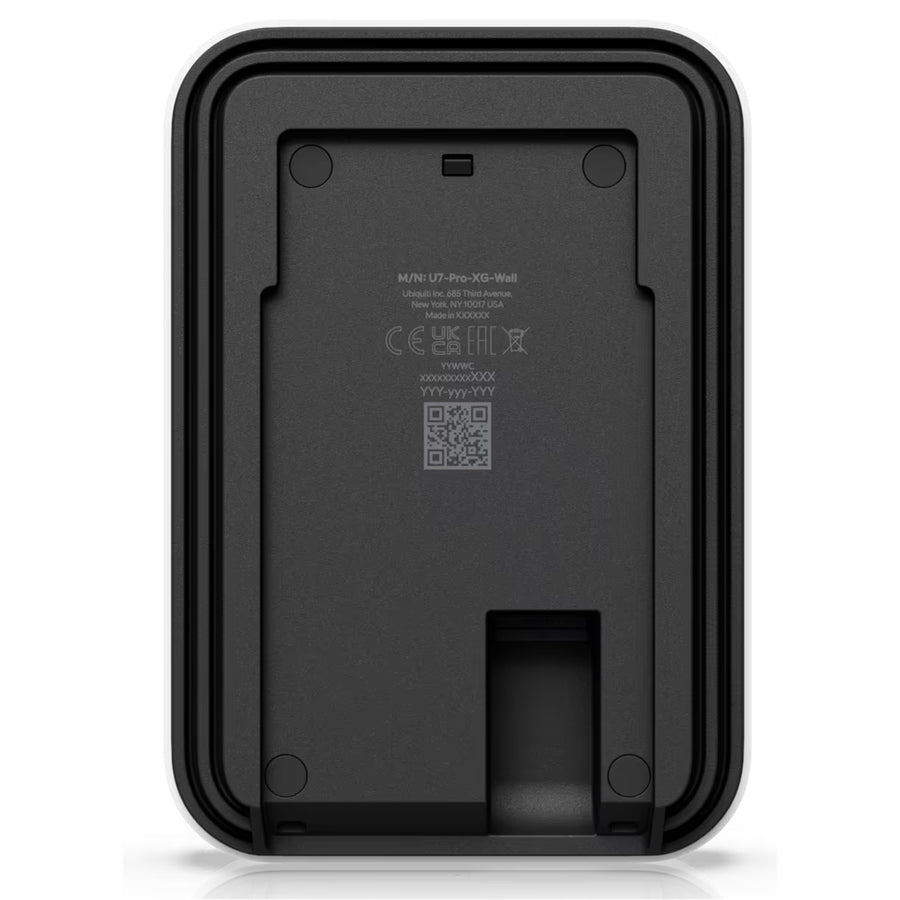

U7-Pro-XG-Wall - Ubiquiti UniFi U7 Pro XG Wall Wi-Fi 7 Tri-radio Access Point with 6 Spatial Streams
$705.15
Free shipping over $299
Genuine product
7-day returns
U7-Pro-XG-Wall - Ubiquiti UniFi U7 Pro XG Wall Wi-Fi 7 Tri-radio Access Point with 6 Spatial Streams
Features
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/5/10 GbE support.
Specifications
Technical Specifications
| Dimensions | 155 x 108 x 33.5 mm(6.1 x 4.3 x 1.3'') |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Wall |
| Power Method | PoE+ |
| MIMO | 6 GHz2 x 2 (DL/UL MU-MIMO)5 GHz2 x 2 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz5.8 Gbps (BW320)5 GHz4.3 Gbps (BW240)2.4 GHz688 Mbps (BW40) |
| Antenna Gain | 6 GHz6 dBi5 GHz6 dBi2.4 GHz4 dBi |
| Max. TX Power | 6 GHz24 dBm5 GHz26 dBm2.4 GHz23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page✓Voucher Authentication✓Payment-Based Authentication✓External Portal Server Support✓Password Authentication✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5-57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 505 g (1.1 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| LEDs | SystemW/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application Requirements | UniFi NetworkVersion 10.0 and later |
| Mobile App | iOS™ version 10.29.3 and laterAndroid™ version 10.31.1 and later |
