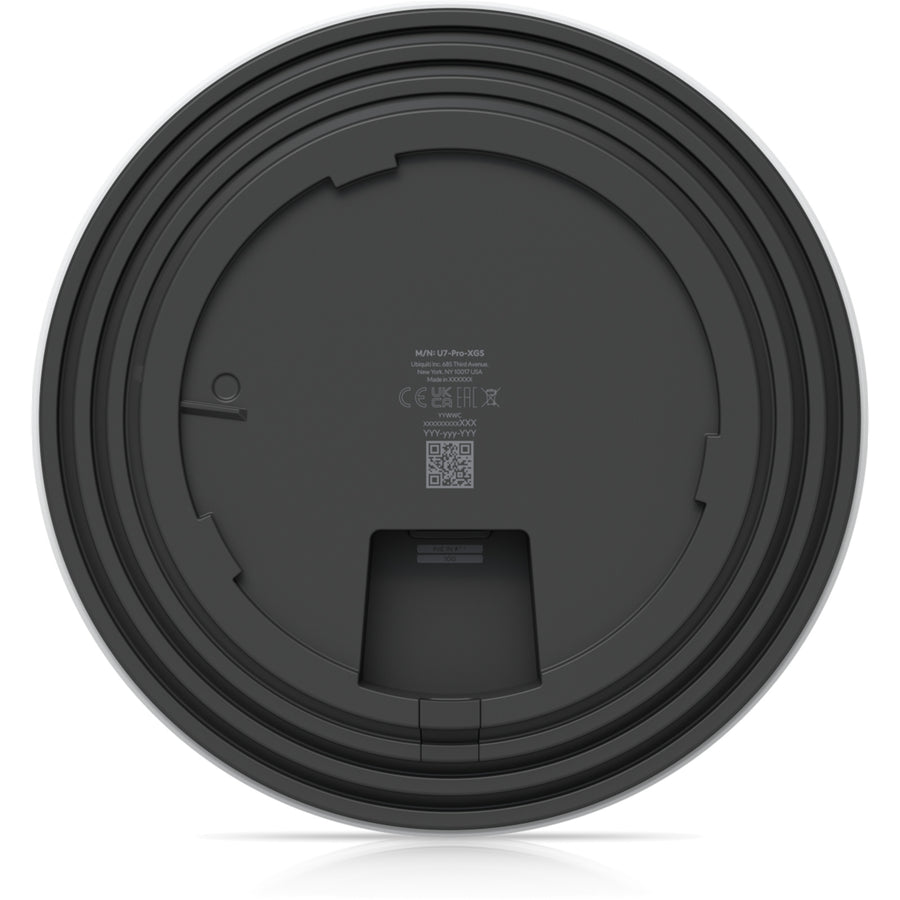

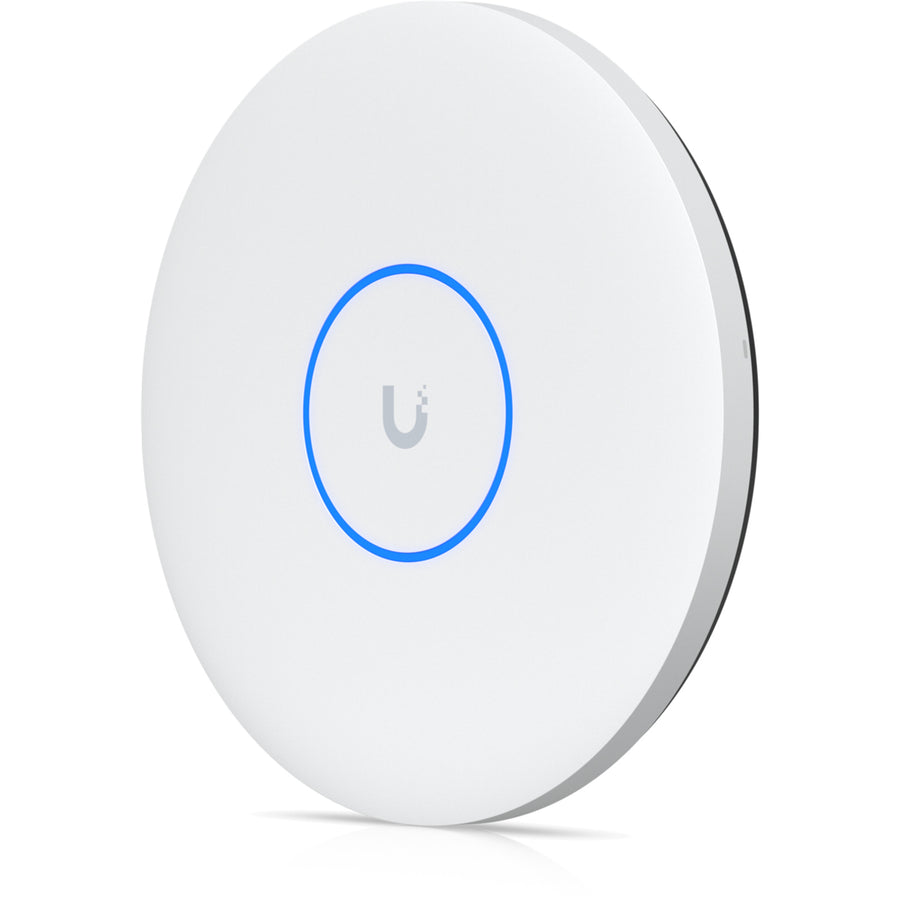

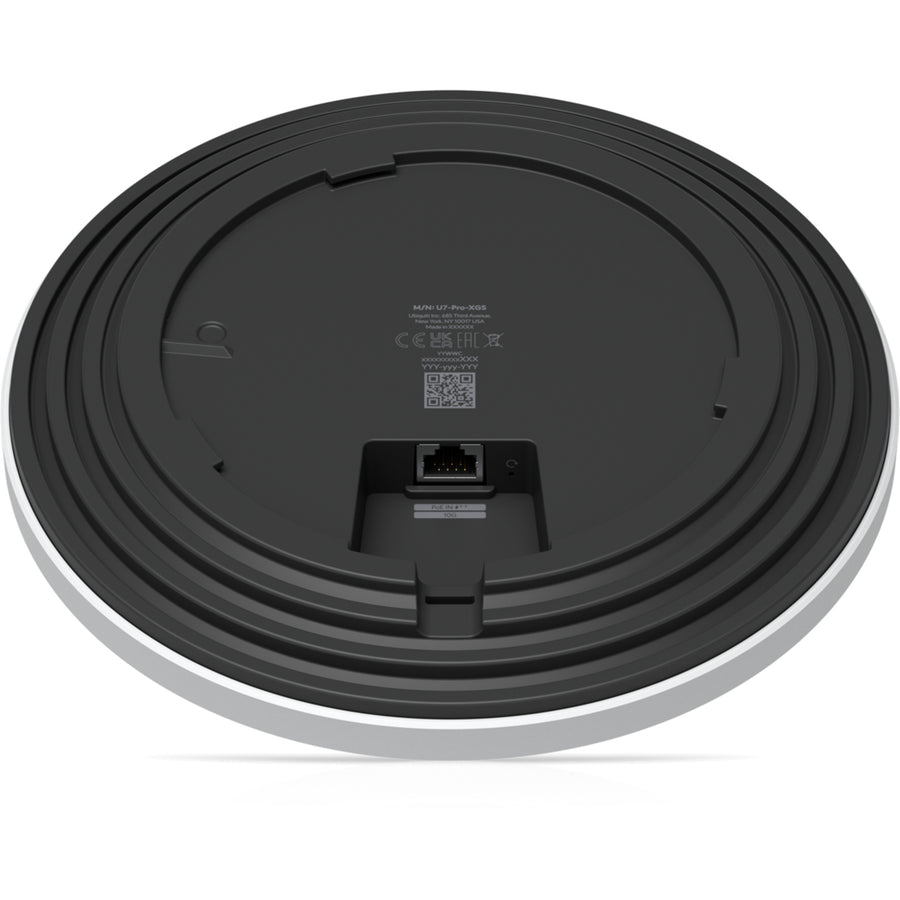

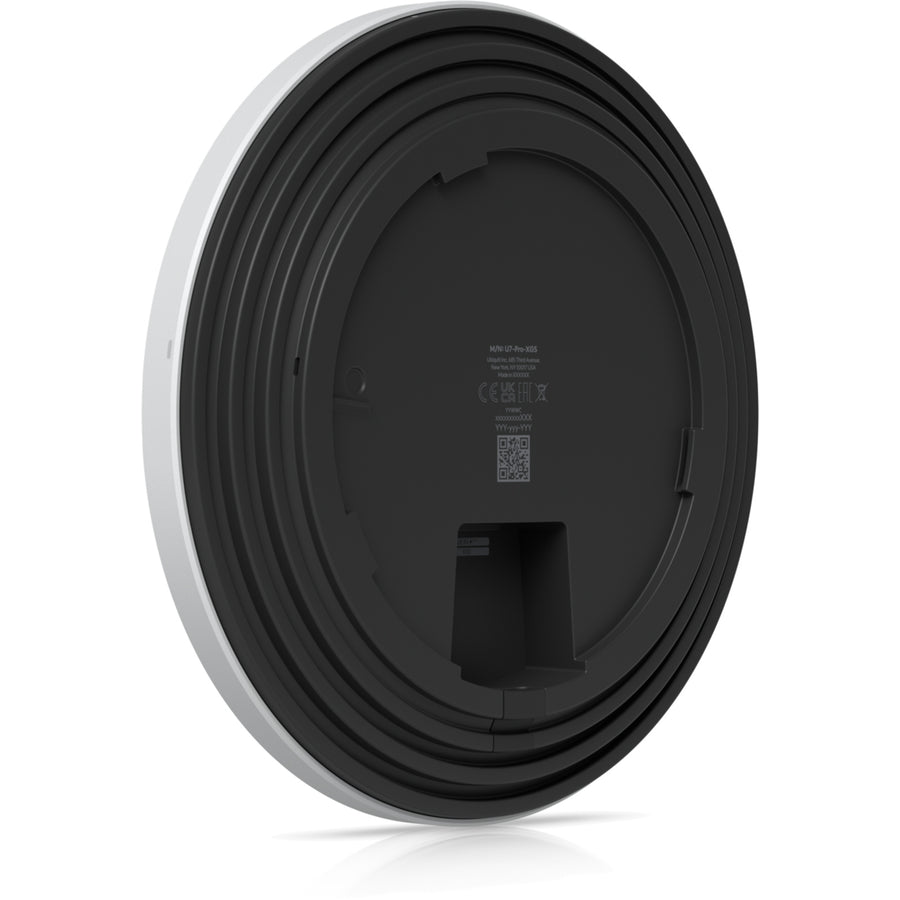

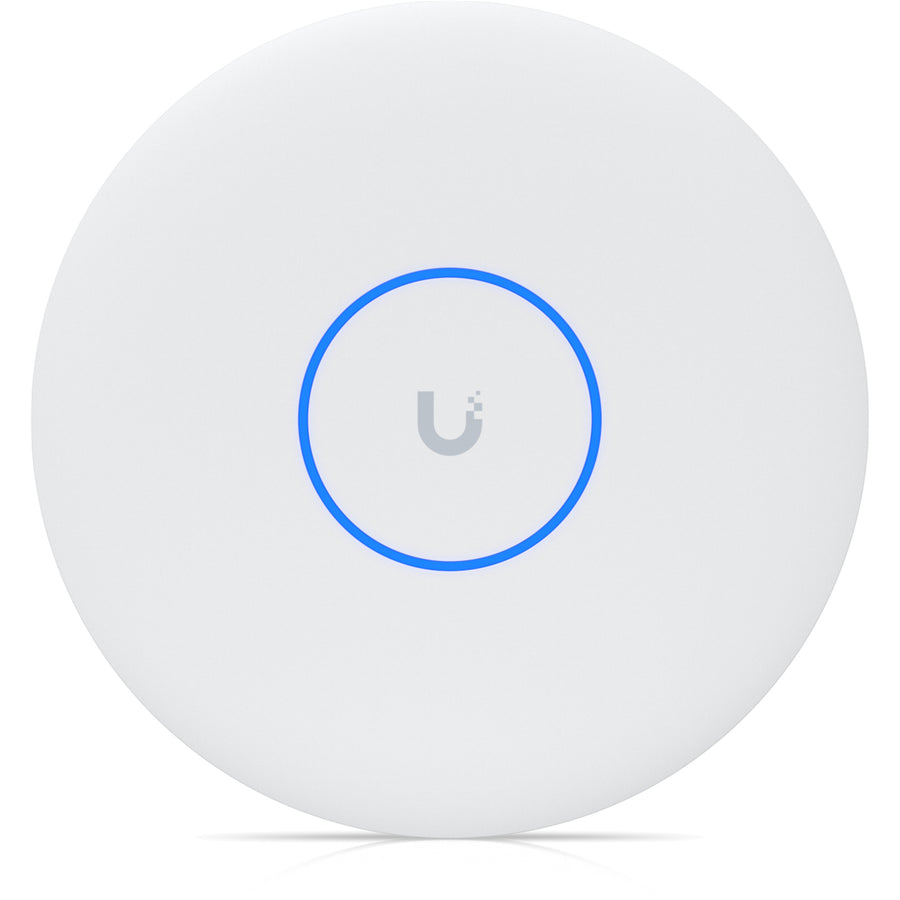

U7-Pro-XGS - Ubiquiti UniFi U7 Pro XGS Ceiling-mounted 8-stream WiFi 7 Access Point
$741.83
Free shipping over $299
Genuine product
7-day returns
U7-Pro-XGS - Ubiquiti UniFi U7 Pro XGS Ceiling-mounted 8-stream WiFi 7 Access Point
Features
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Specifications
Technical Specifications
| Dimensions | Ø215 x 32.5 mm (Ø8.5 x 1.3") |
|---|---|
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall(Lite Mount Included) |
| Power Method | PoE++ |
| MIMO | 6 GHz2 x 2 (DL/UL MU-MIMO)5 GHz4 x 4 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz5.8 Gbps (BW320)5 GHz8.6 Gbps (BW240)2.4 GHz688 Mbps (BW40) |
| Antenna Gain | 6 GHz6 dBi5 GHz6 dBi2.4 GHz4 dBi |
| Max. TX Power | 6 GHz24 dBm5 GHz29 dBm2.4 GHz23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 42.5-57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 800 g (1.8 lb) |
| Ethernet | Enclosure Material |
| UV-stabilized polycarbonate, aluminum alloy | Mount Material |
| Stainless steel (SUS304), galvanized steel (SGCC) | LEDs |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Application Requirements UniFi Network | Version 9.0.114 and later (U7 Pro XGS - White)Version 9.1.120 and later (U7 Pro XGS - Black) |
