UA-G3-SK - Ubiquiti UniFi Access 3nd-Generation Single Door Starter Kit with Apple Touch Pass Support
$1,217.00
Free shipping over $299
Genuine product
7-day returns
UA-G3-SK - Ubiquiti UniFi Access 3nd-Generation Single Door Starter Kit with Apple Touch Pass Support
Features

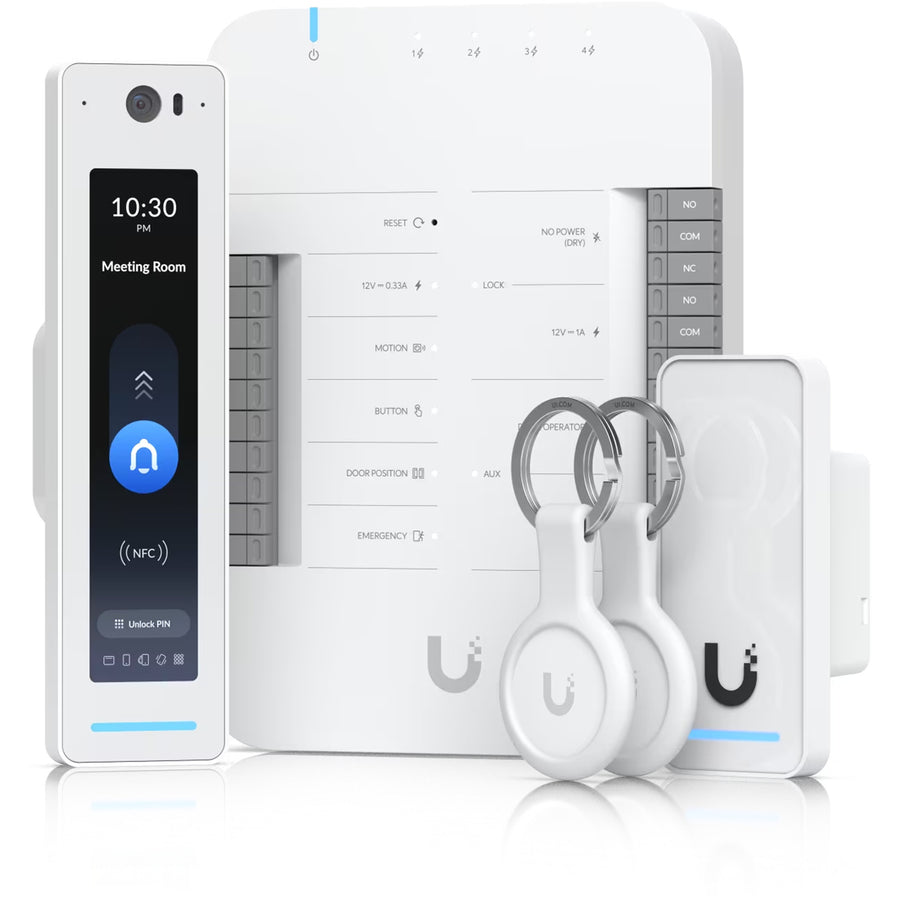

G3 Starter Kit Pro
Starter kit that provides complete entry and exit control for a single door with two readers and Apple Touch Pass support.

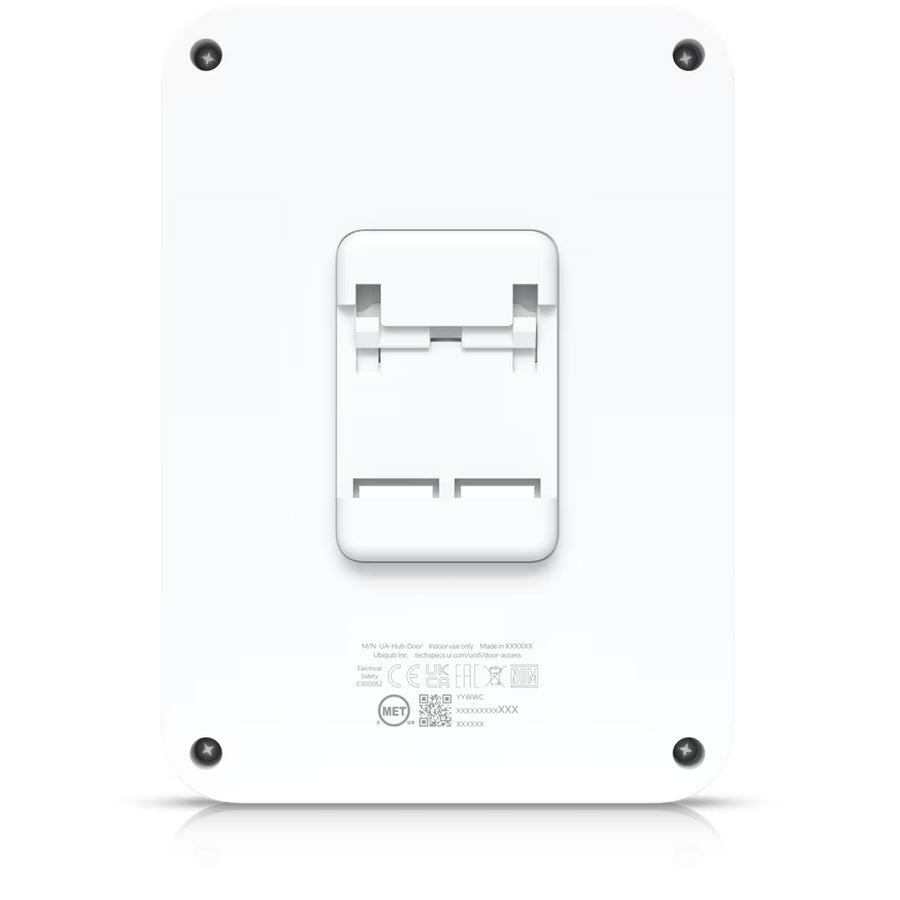

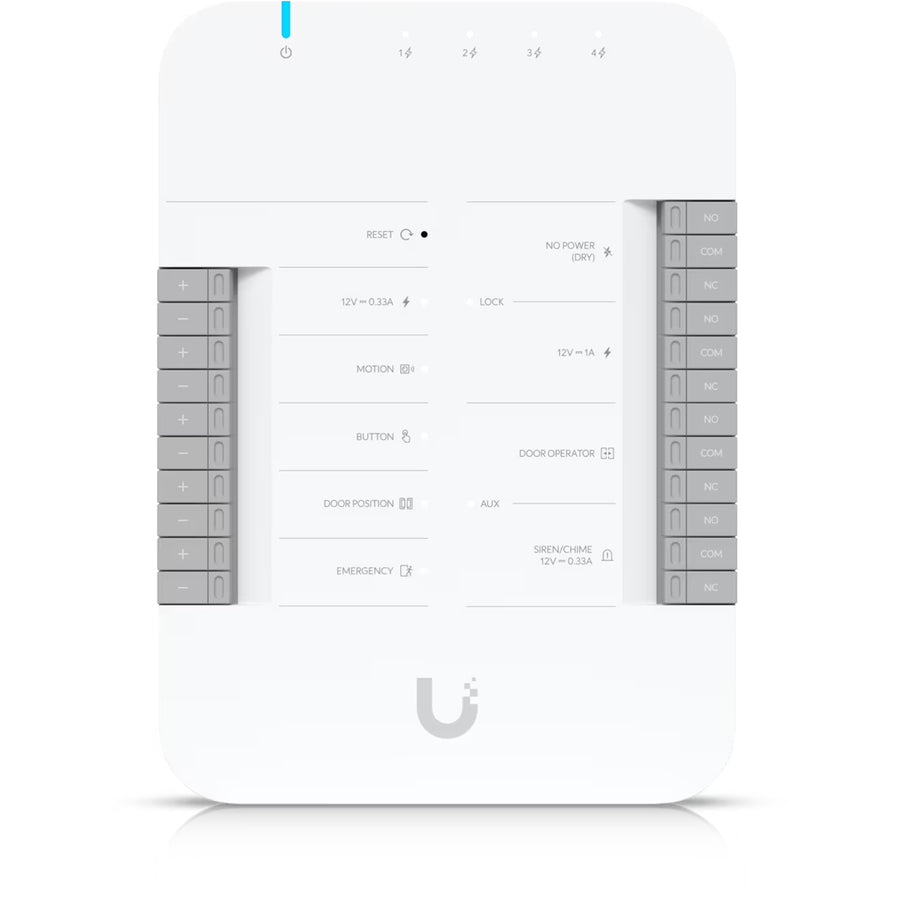

- (1) Door Hub

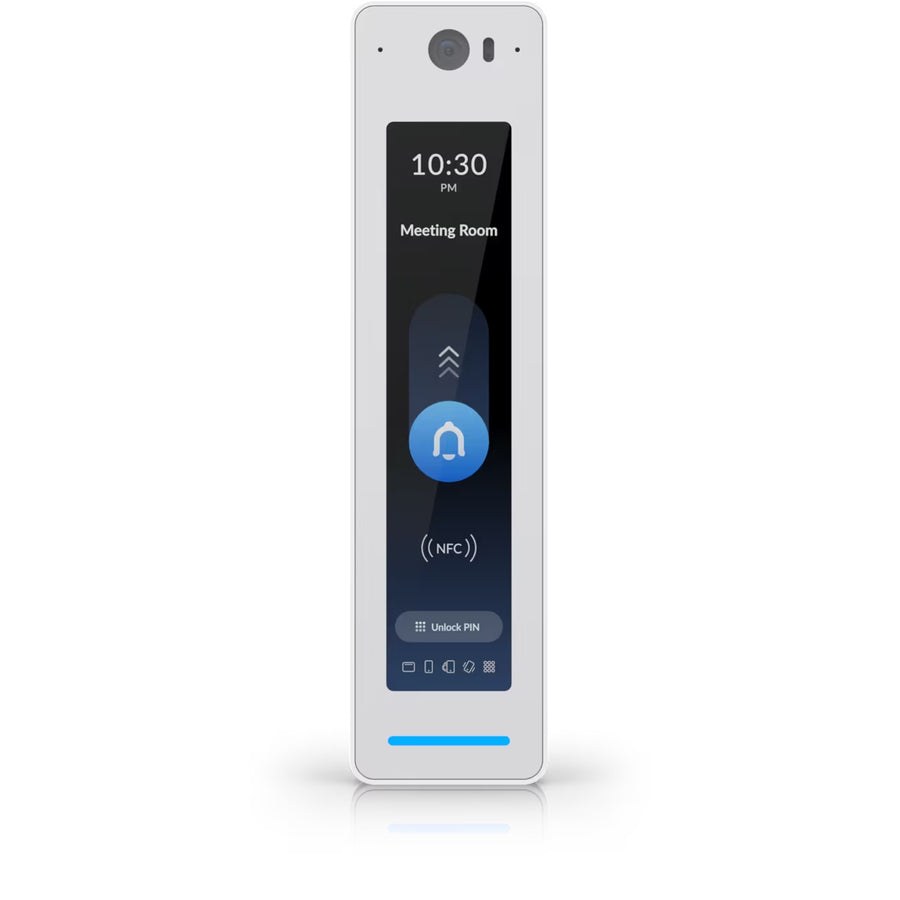

- (1) G3 Reader Pro

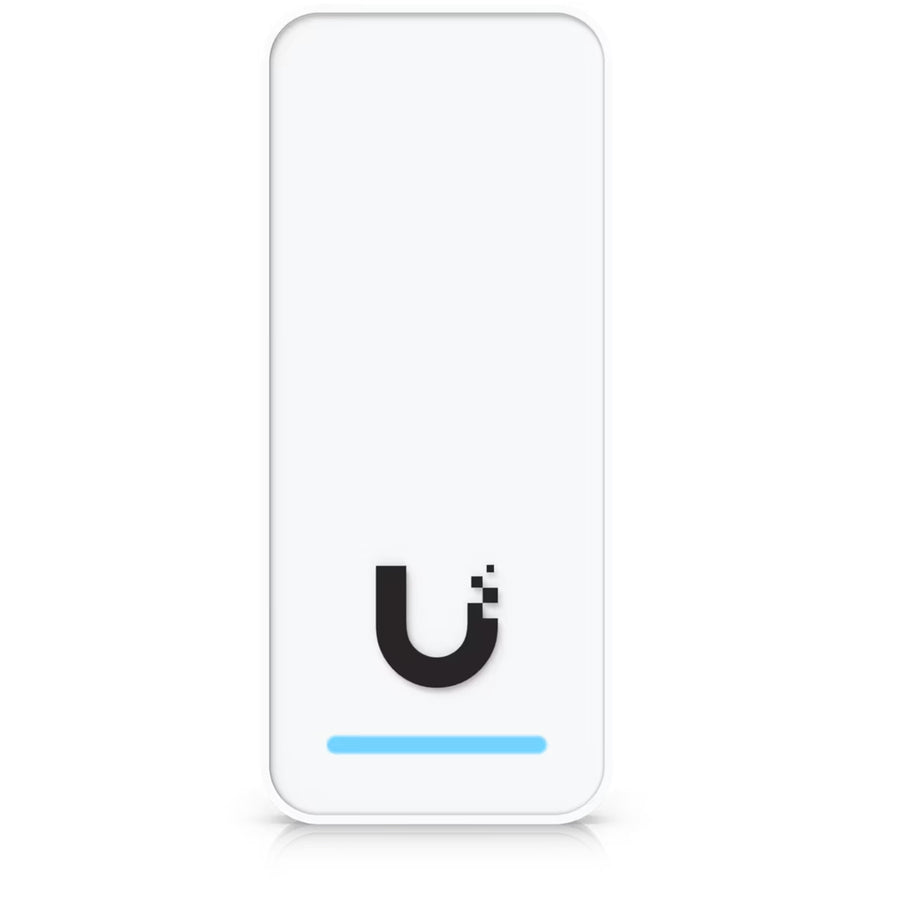

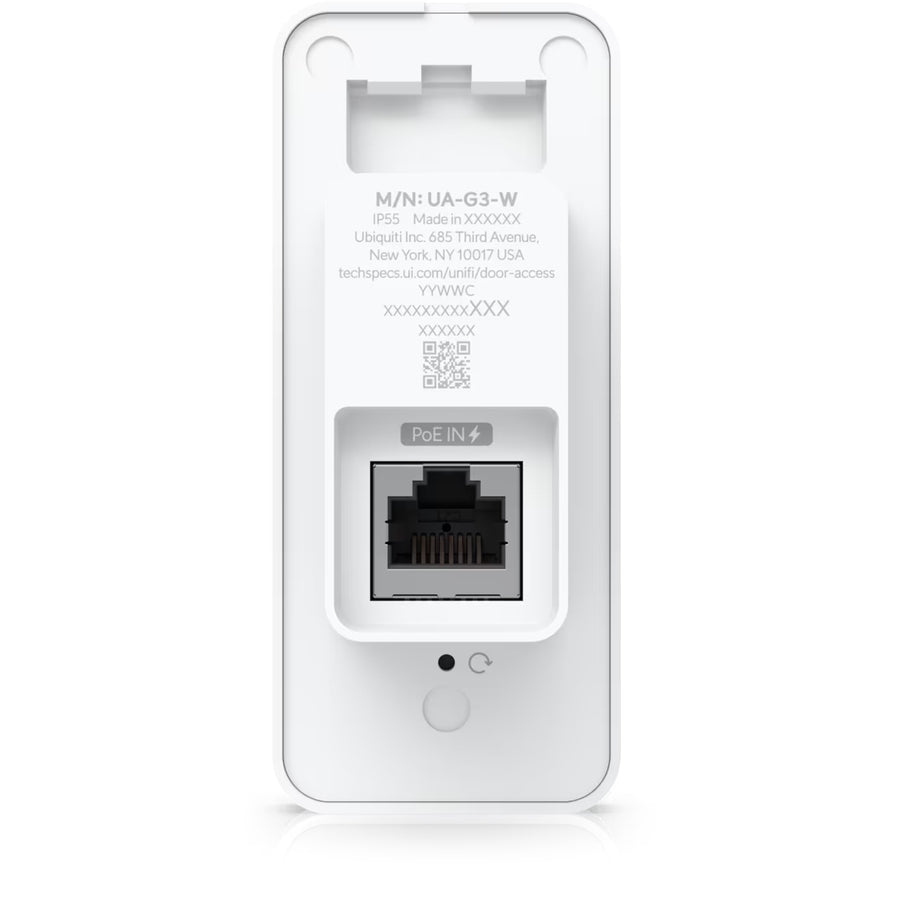

- (1) G3 Reader for door exit, or entry for an additional door (second Hub required)
- (2) Pocket Keyfobs
Specifications
Technical Specifications

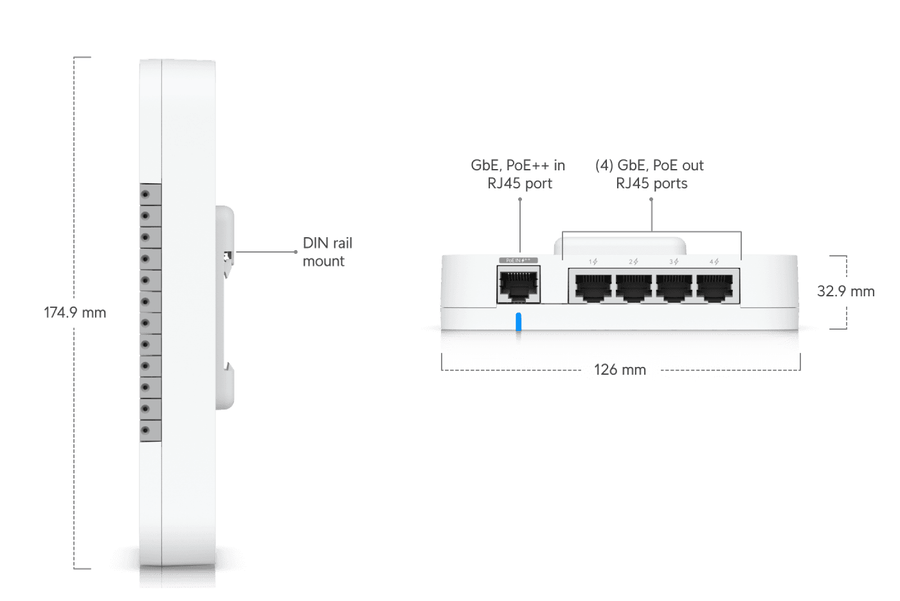

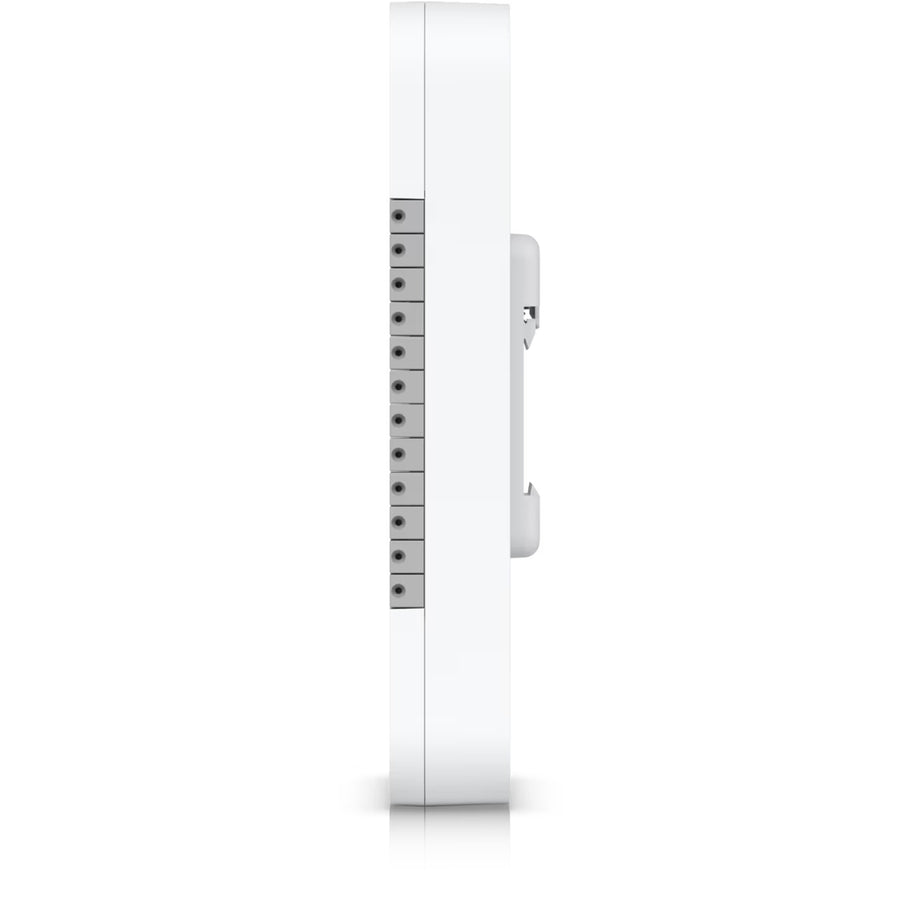

| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
|---|---|
| Weight | 363 g (12.8 oz) |
| Enclosure material | Polycarbonate |
| Mounting material | Polycarbonate |

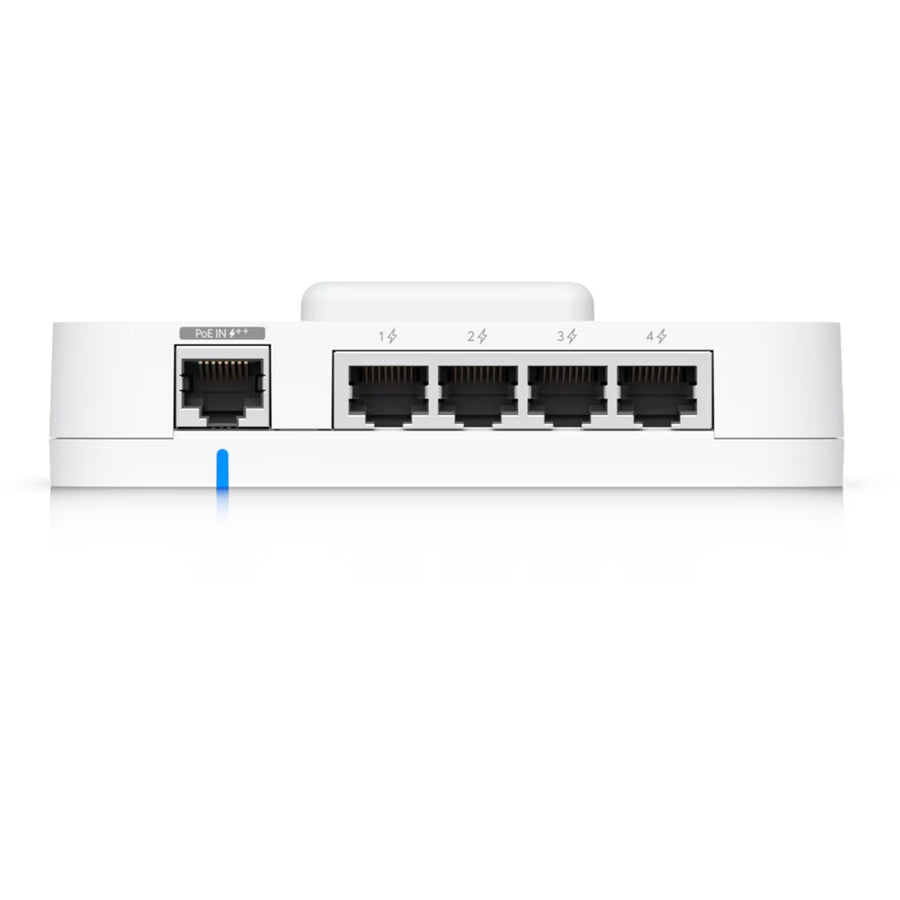

| Networking interface | (5) 10/100/1000 Base-T |
| Power method | PoE++UL 294 Power-limited Class 2 PSUUL 60950-1/62368-1 LPS/PS2 PSU |
| Max. power consumption | Without PoE output: 30WWith PoE output: 50W |
| PoE input | 50V DC, 1A |
| PoE output | PoE passthrough, (4) PoE, 50V DC, total 20W |
| LEDs | White/blue |
| Button | (1) Factory-reset |

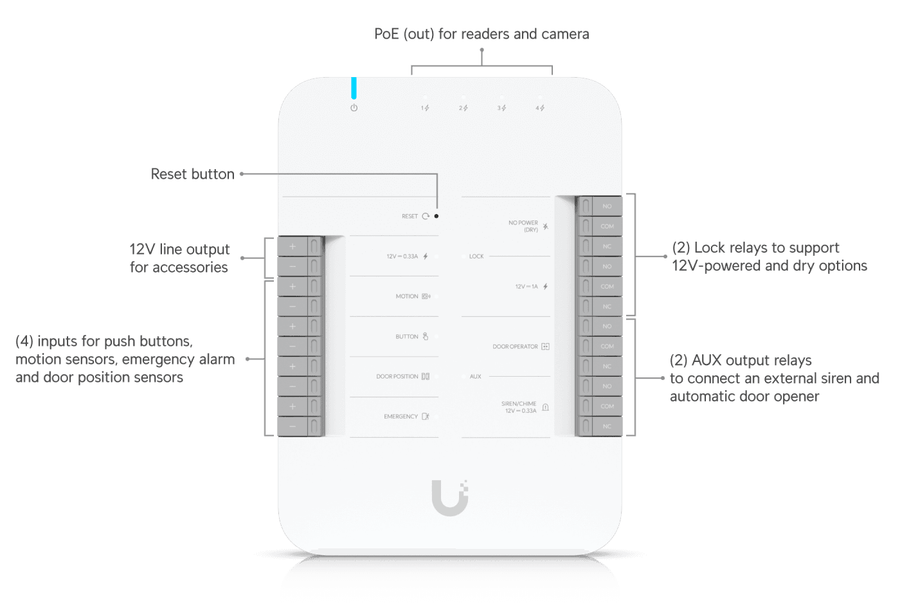

| Digital input | Request to exit/request to enter/remote release/door position sensor |
| Dry output relay | Lock: 30V DC, 1AAux: 30V DC, 1A |
| Powered output relay | Lock: 12V DC, 1AAux: 12V DC, 0.33A12V DC, 0.33A |
| Operating environment | Indoor use only |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |

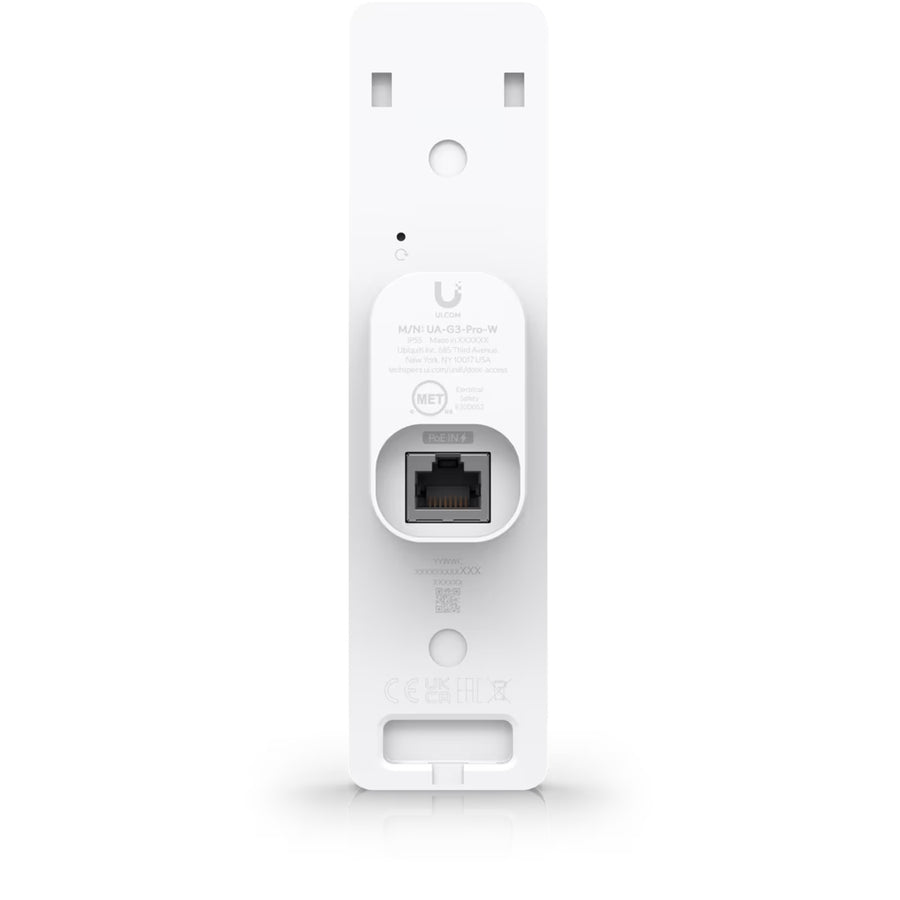

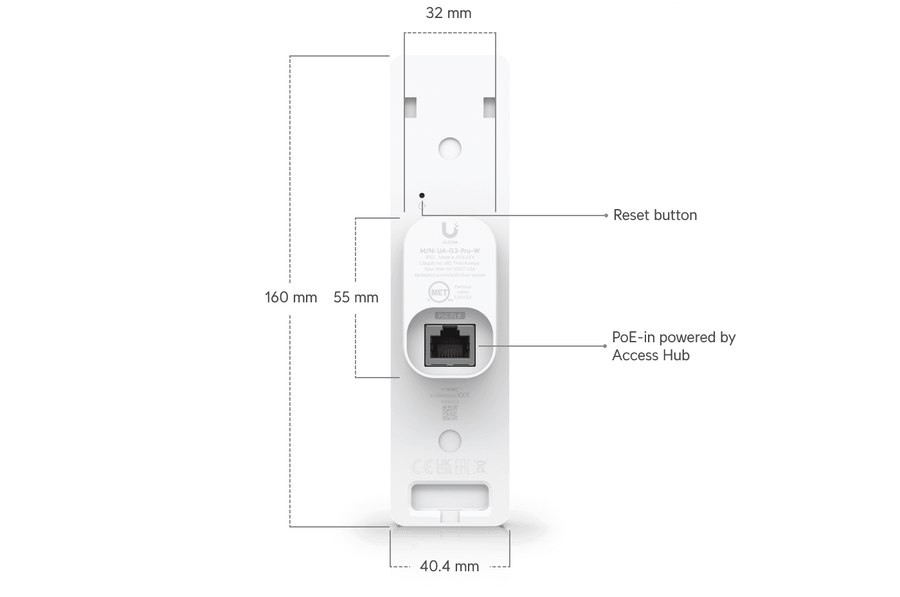

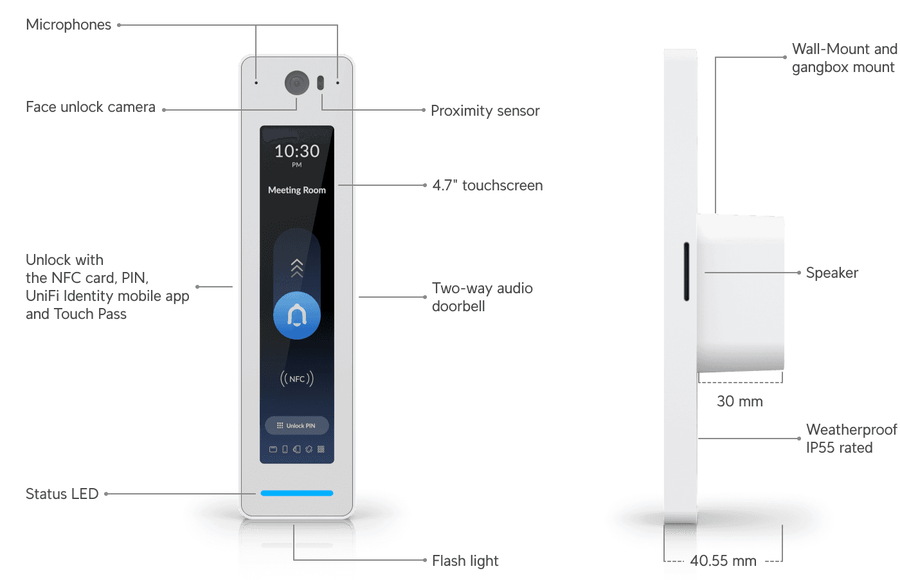

| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Weight | 136 g (4.8 oz) |
| Enclosure material | Polycarbonate, glass |
| Mount material | Aluminum alloy |
| Mounting | Wall mount (Included)Gangbox mount (Included)Angle mount (Optional)Junction box (Optional) |
| Weatherproofing | IP55 |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2NFC |
| Power method | PoEUL 294 Power-limited Class 2 PSUUL 60950-1/62368-1 LPS/PS2 PSU |
| Supported voltage range | 48V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensor | Proximity sensor |
| Camera view angle | H: 96.67°, V: 123.15°, D: 153.11° |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R/G/B/W/Amber |
| Button (1) | Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)MIFARE Classic / MIFARE DESFIRESony FeliCa™ (ID only)NFC Forum tags T1T, T2T, T3T, T4T and T5TECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | Device: -30 to 45° C (-22 to 113° F)Display:* -10 to 45° C (14 to 113° F)*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Software information | The software version of a product can be checked athttps://unifi.ui.com |
| UL 294 level | Destructive attack: Level ILine security: Level IEndurance: Level IStandby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294.The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |

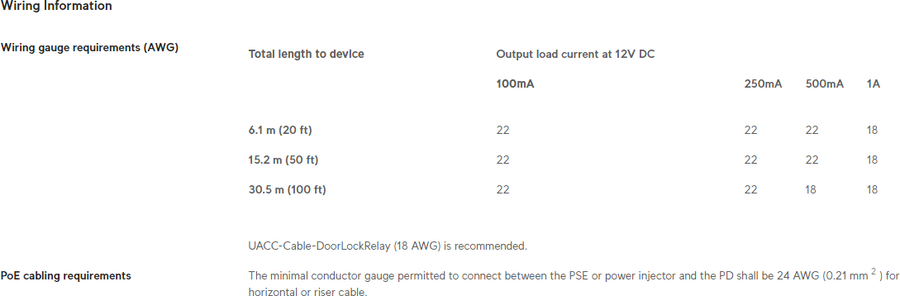

| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 | Grade Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| System | Steady blue: Adopted/device is readySteady white: Pending adoptionBlinking white/blue: Upgrading firmwareStrobing red: Emergency lockdownSteady orange: Display over or under operation temperature |

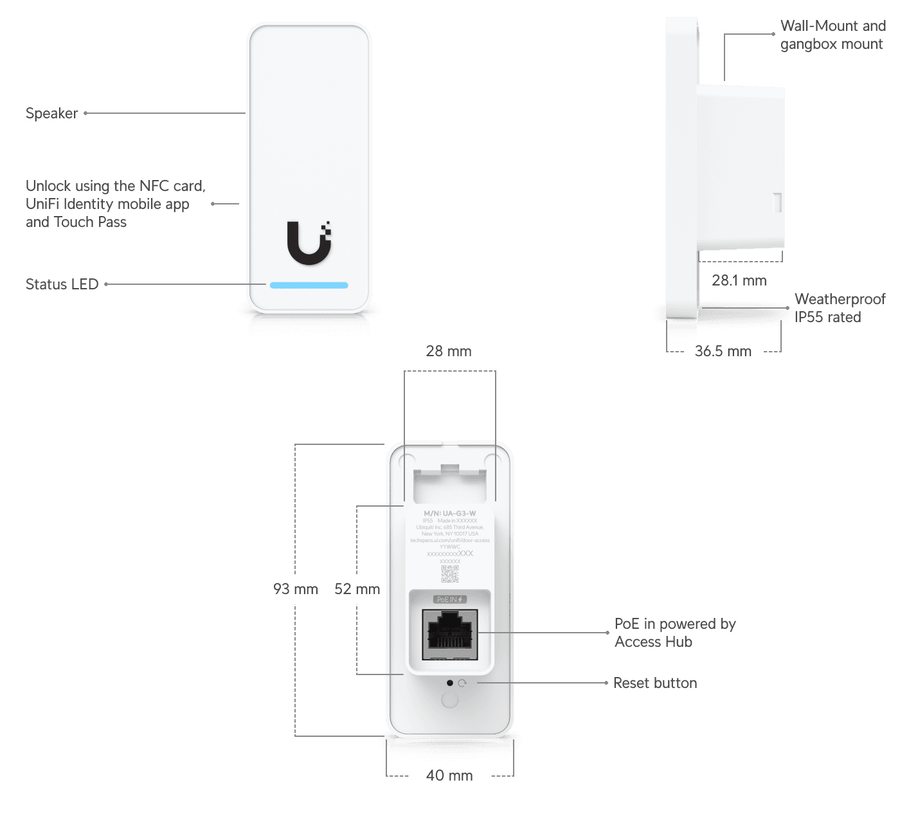

| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Weight | 82 g (2.9 oz) |
| Enclosure material | Polycarbonate, glass |
| Mounting material | Aluminum alloy |
| Mounting | In wall, gang box |
| Weatherproofing | IP55 |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1NFC |
| Power method | PoEUL 294 Power-limited Class 2 PSUUL 60950-1/62368-1 LPS/PS2 PSU |
| Supported voltage range | 48V DC |
| Max. power consumption | 5W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | (1) 8 ohm, 0.7W |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)MIFARE Classic / MIFARE DESFIRESony FeliCa™ (ID only)NFC Forum tags T1T, T2T, T3T, T4T and T5TECP 2.0 |
| Operating environment | Outdoor use |
| Ambient operating temperature | -30 to 45° C (-22 to 113° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Software information | The software version of a product can be checked athttps://unifi.ui.com |
| UL 294 level | Destructive attack: Level ILine security: Level IEndurance: Level IStandby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294.The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 | Grade Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Dimensions | 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.3") |
| Weight | 16 g (0.56 oz) |
| Enclosure material | Polycarbonate, stainless steel, silicone rubber |
| Weatherproofing | IP54 |
| NFC frequency | 13.56 MHz |
| NFC technology | ISO/IEC 14443 Type AMIFARE DESFire EV3 4KUniFi Access Proprietary Security Protocol |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certification | CE |
