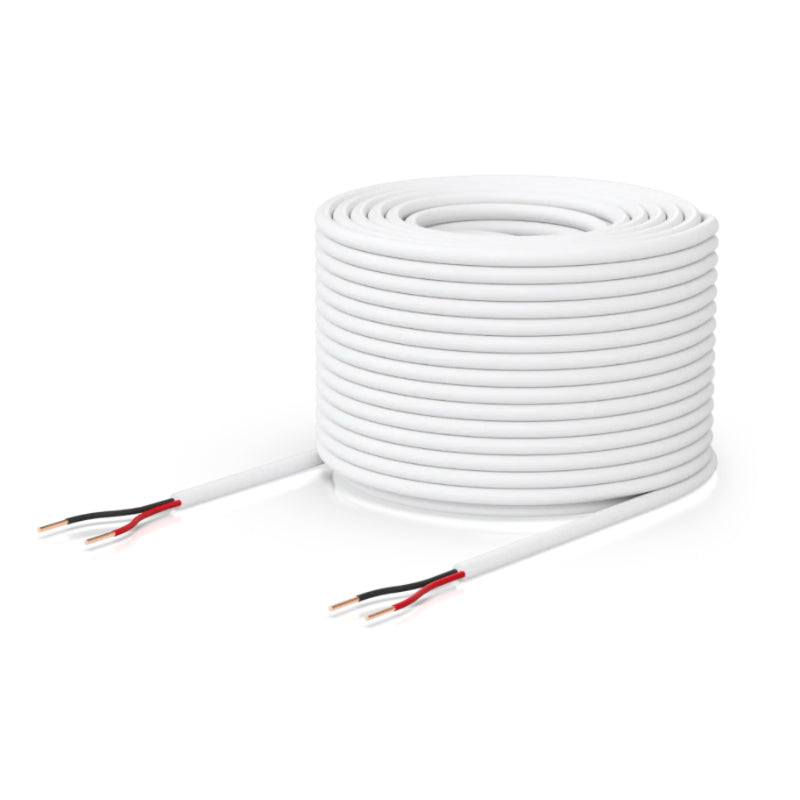

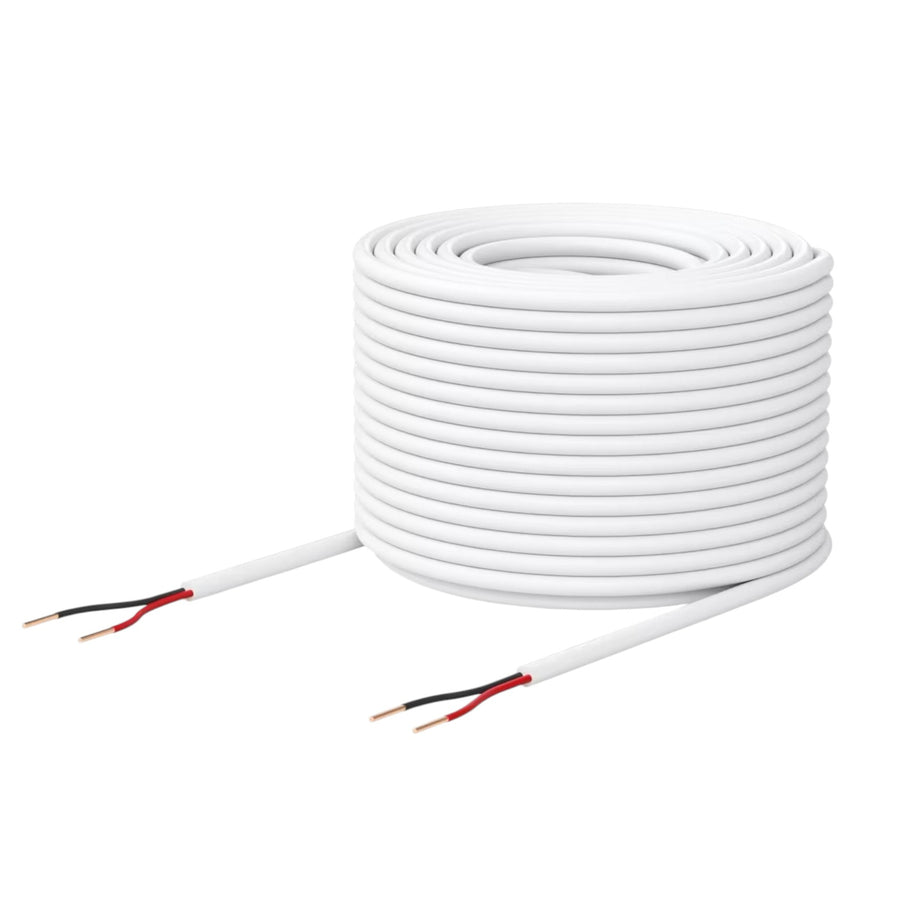

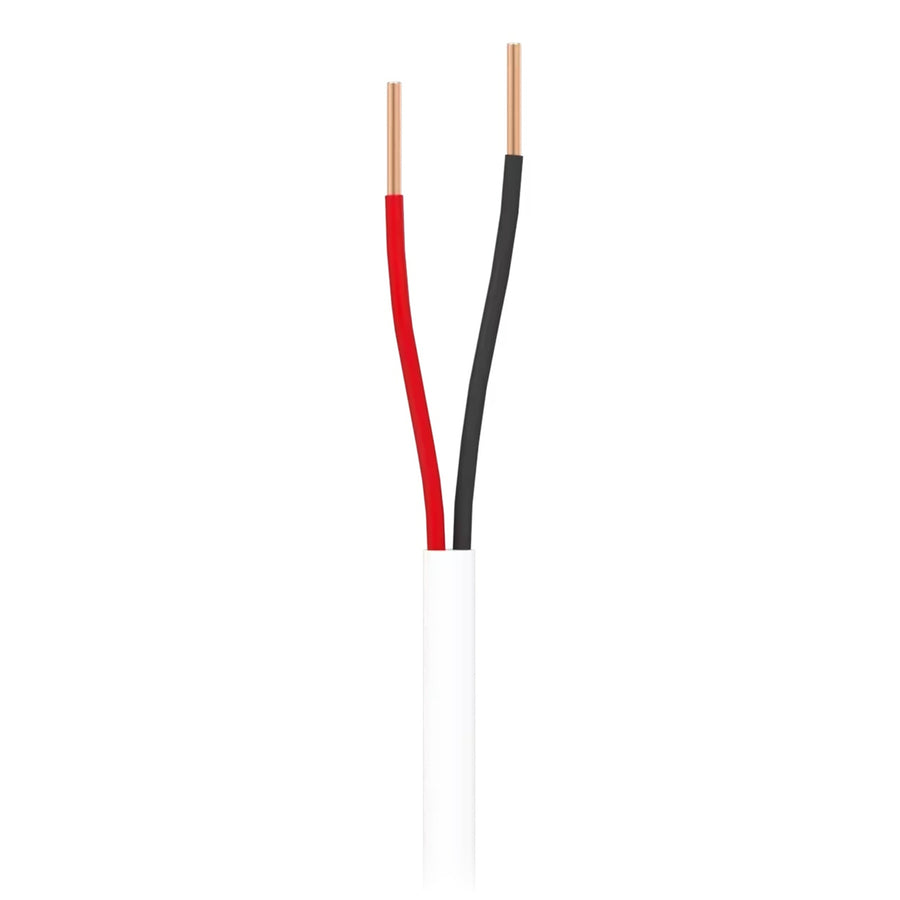

UACC-Cable-DoorLockRelay-1P - Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub
Ubiquiti

UACC-Cable-DoorLockRelay-1P - Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

SKU: UACC-Cable-DoorLockRelay-1P ● In Stock
$280.48
Free shipping over $299 Genuine product 7-day returns

UACC-Cable-DoorLockRelay-1P

UACC-Cable-DoorLockRelay-1P - Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

Description

Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub
Features
  • Plenum-Rated
  • (2) 18 AWG conductors for an electric/magnetic lock

Specifications

Details
Product code UACC-Cable-DoorLockRelay-1P
Weight 4.58kg
Cable Length 152.4m
Jacket OD 4.2mm
Jacket Material Thermoplastic Elastomer (TPE)
Jacket Color White
Conductor Wire Gauge 18 AWG
Insulation Material Semi-rigid polyvinyl chloride (SR-PVC)
Insulation Color UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Number of Conductors 2
Conductor Material Solid Bare Copper
Max Pull Tension 16.4 kgf
Min Bend Radius 33mm
Conductor DCR 23.2 ohm/km
Voltage 36V DC
Flame Rating VW-1
Current Rating 2A for 500 ft length
Storage Temperature -45 to 65° C
Operating Temperature -45 to 65° C
