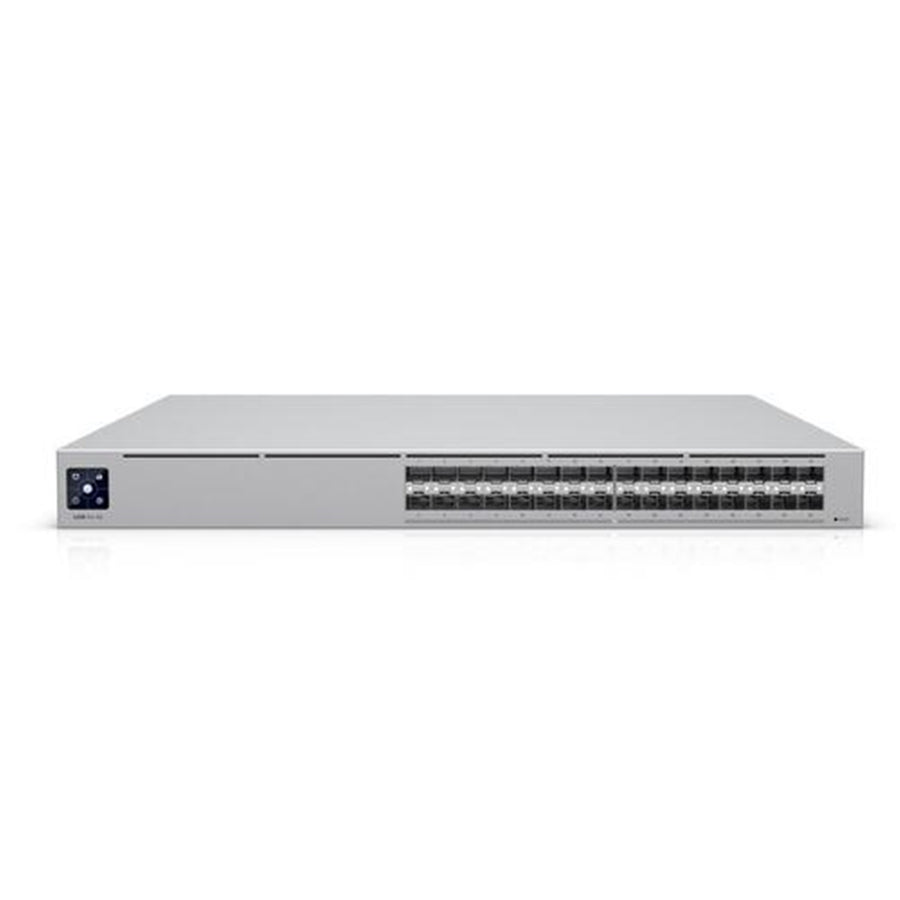

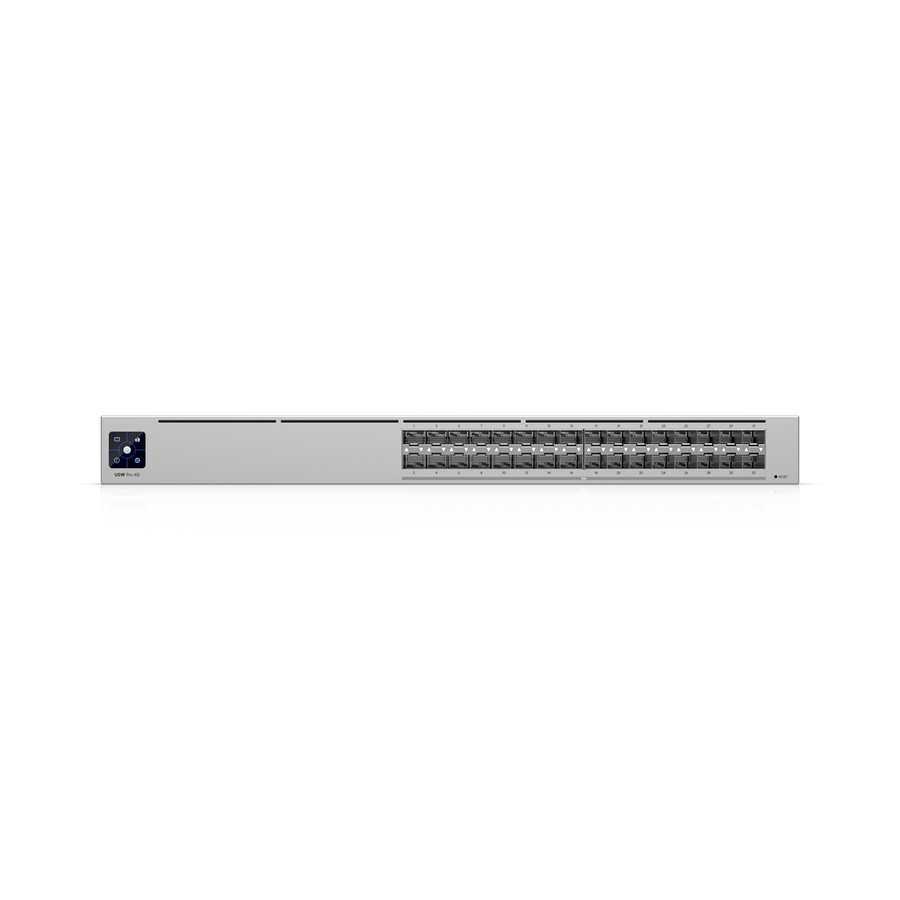

Ubiquiti Professional-grade 32-port Layer 3
Features
Professional-grade 32-port, Layer 3 Etherlighting Switch For High-capacity 25G SFP28 Connections.
- High-Speed Aggregation: The switch is designed to connect multiple Pro XG switches and servers across a high-speed 25G backplane, making it suitable for core network connections. - 32 SFP28 Ports: Offers 32 ports that support 1G/10G/25G SFP28 connections, providing flexibility and high-bandwidth options.
- Etherlighting: Features Etherlighting, which allows for visual identification of port location, speed/link status, and VLAN information.
- Layer 3 Functionality: Includes Layer 3 features like static routing and inter-VLAN routing, enabling advanced traffic management.
- UniFi Controller Management: Can be managed through the UniFi Network Controller, simplifying setup, configuration, and monitoring.
- 1U Rack-Mountable: Designed for easy integration into standard server racks.
- Redundant Power: Supports redundant power supply options for enhanced reliability.
- Switching Capacity: Offers a 1.6 Tbps switching capacity and 1.2 Bpps forwarding rate.
Specifications
Technical Specifications
| Dimensions | 442.4 x 43.7 x 480 mm(17.4 x 1.7 x 18.9") |
|---|---|
| Port Layout | 25G SFP28 32 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack Mount (1U) |
| Etherlighting™ | Yes |
| Switching Capacity | 1.6 Tbps |
| Total Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries128,000IPv4 Routes256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists | IPv4256MAC256 |
| Max. Power Consumption | 200W |
| Power Method | (1) Universal input, 100-240V AC, 50/60 Hz(1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100-240V AC |
| Management | EthernetAR |
| Heat Dissipation (Excluding PoE Output) | 457 BTU/hr |
| Weight | Without mounting bracket: 7.1 kg (15.7 lbs)With mounting bracket:7.2 kg (15.9 lbs) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racksPosts depths ranging from 600 to 1,066 mm (23.6-42") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | SFP28Yes |
| LEDs | RPSYes |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 12.95 kg |
