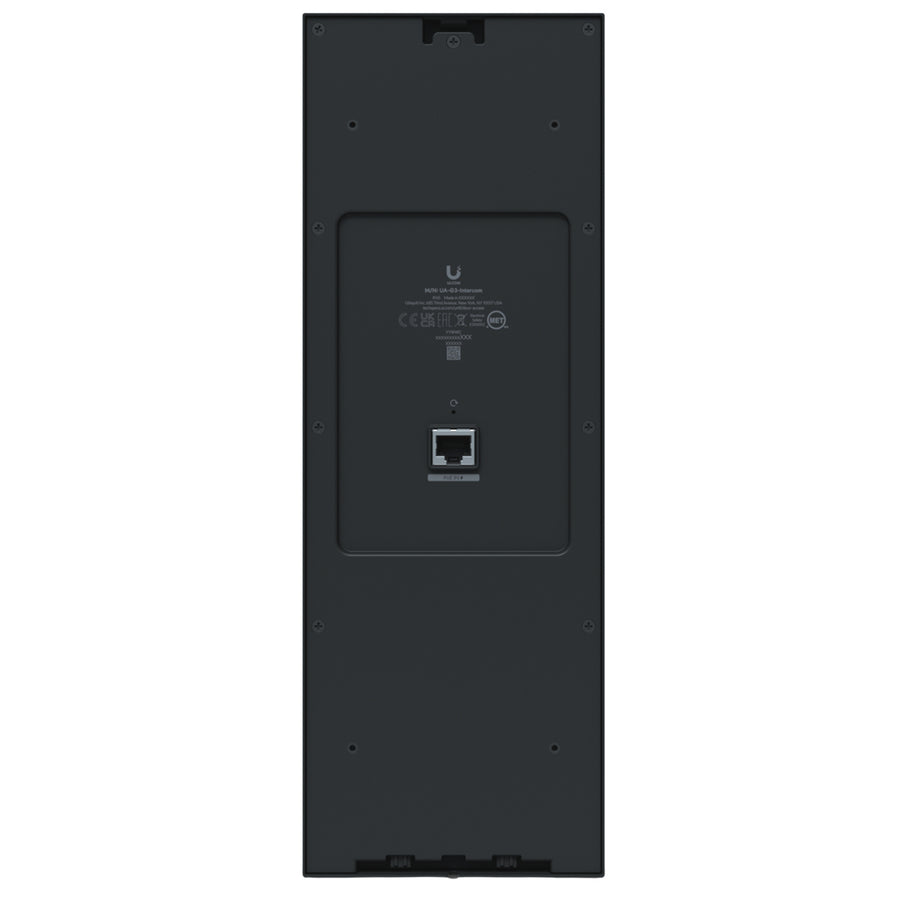

Ubiquiti UA-G3-Intercom - UniFi Access G3 Intercom with Apple Touch Pass Support
Features

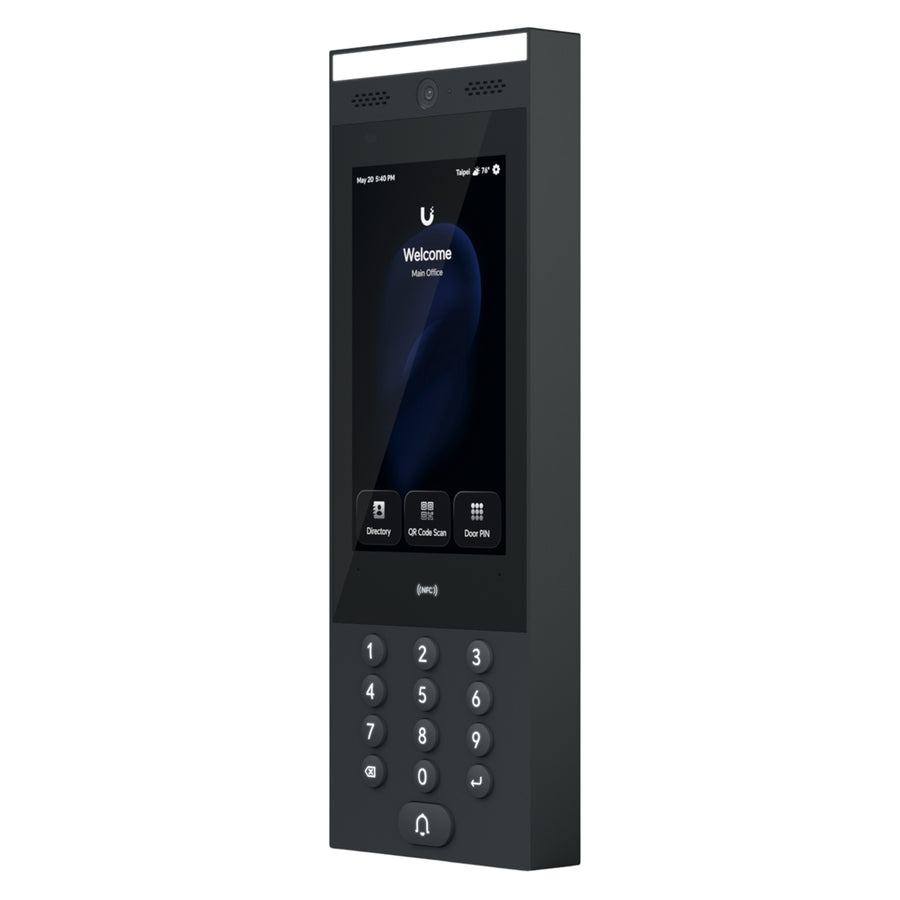

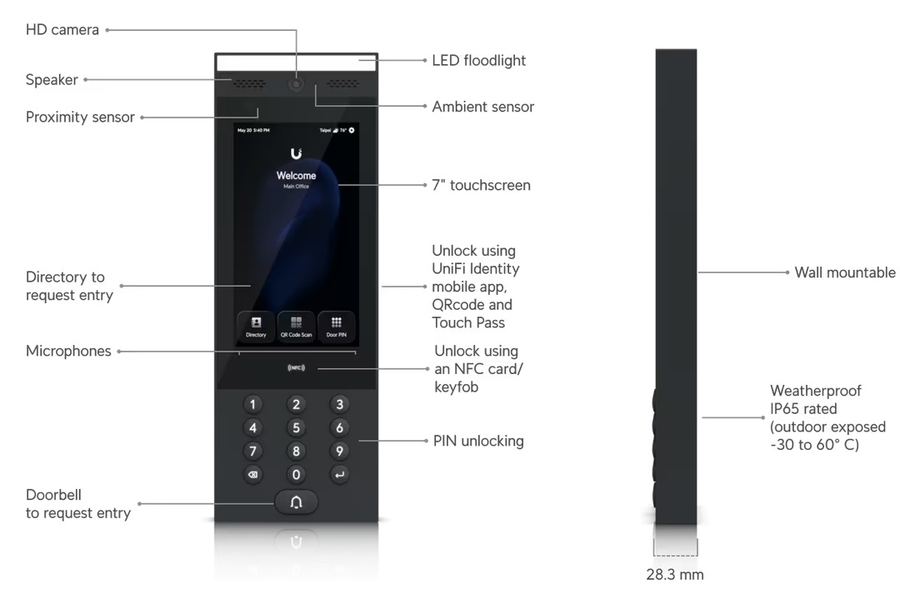

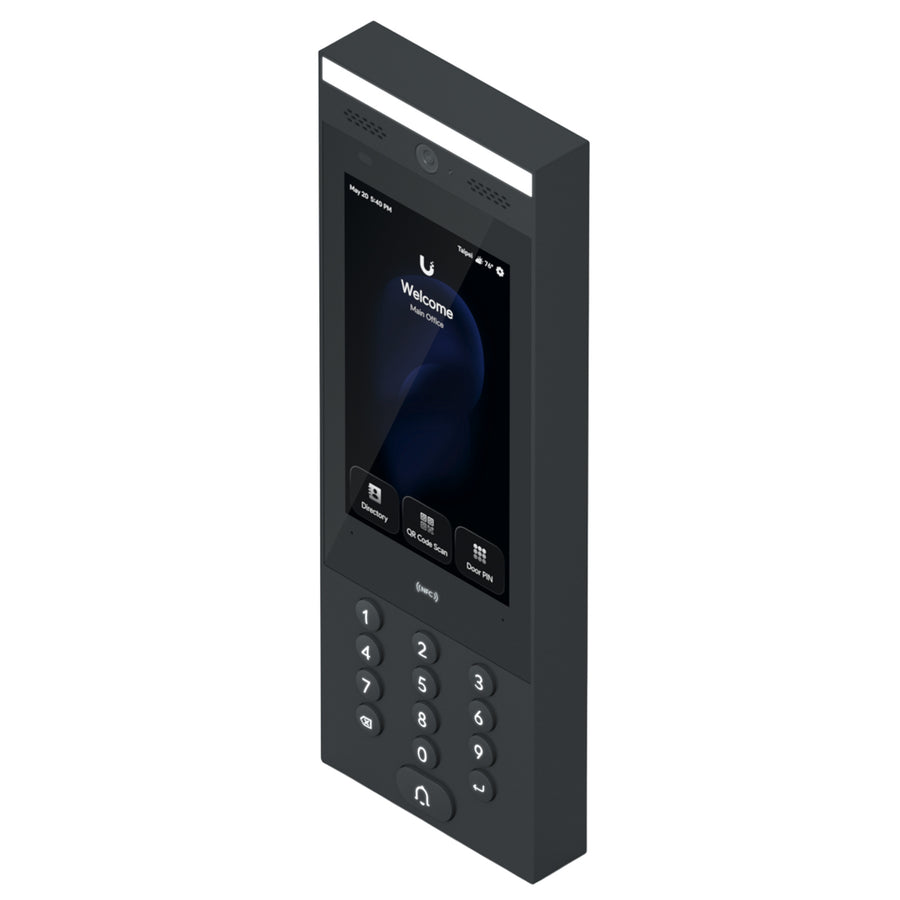

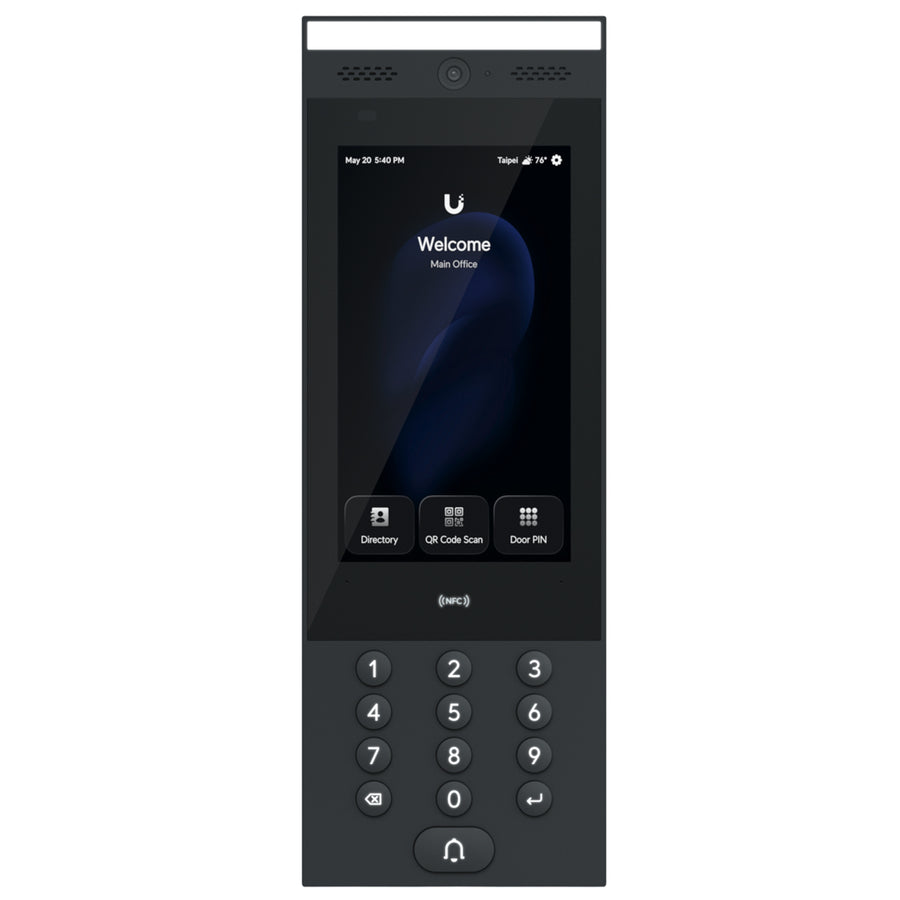

Ubiquiti UniFi Access Intercom with Camera and Keypad. UniFi Access Intercom is an indoor or outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
- Unlock using Apple Wallet or an NFC card or UniFi Identity mobile app, face unlock and Touch Pass
- Directory and doorbell to request entry
- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)
- 10 free 1-year Apple Touch Passes included

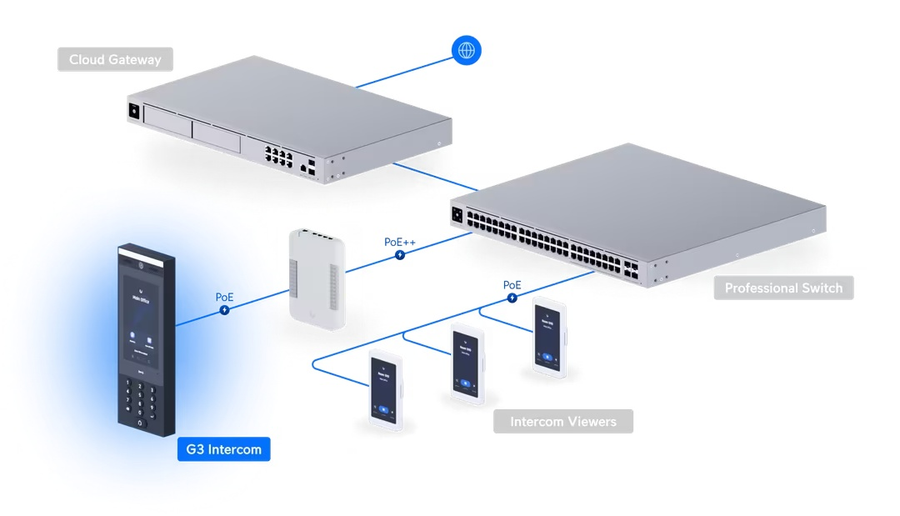

Deployment
Specifications
Technical Specifications

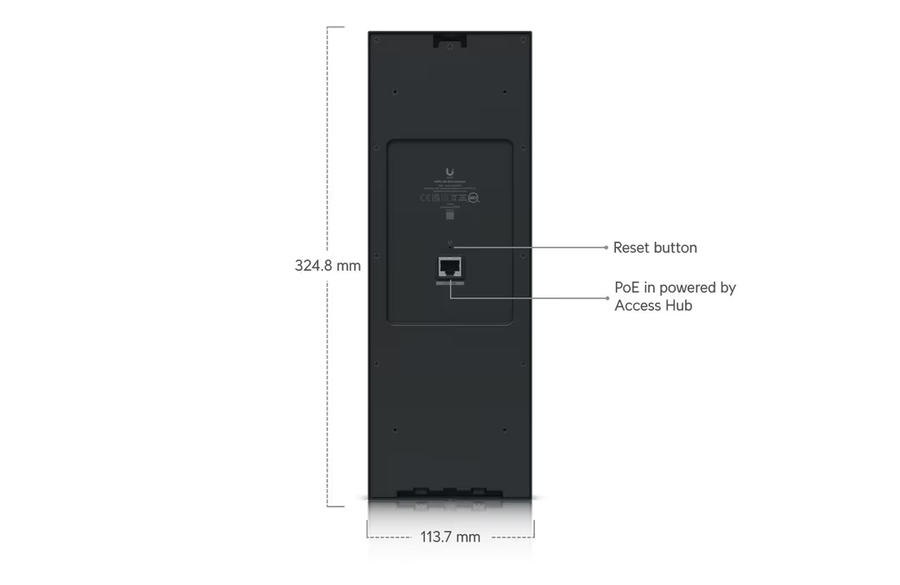

| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
|---|---|
| Integrated Camera | Yes |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Two-Way Intercom & Doorbell Access | Yes |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level ILine security: Level IEndurance: Level IStandby power: Level I |
| Weatherproofing | IP65 |
| Weight | Device: 965 g (2.1 lb)Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |

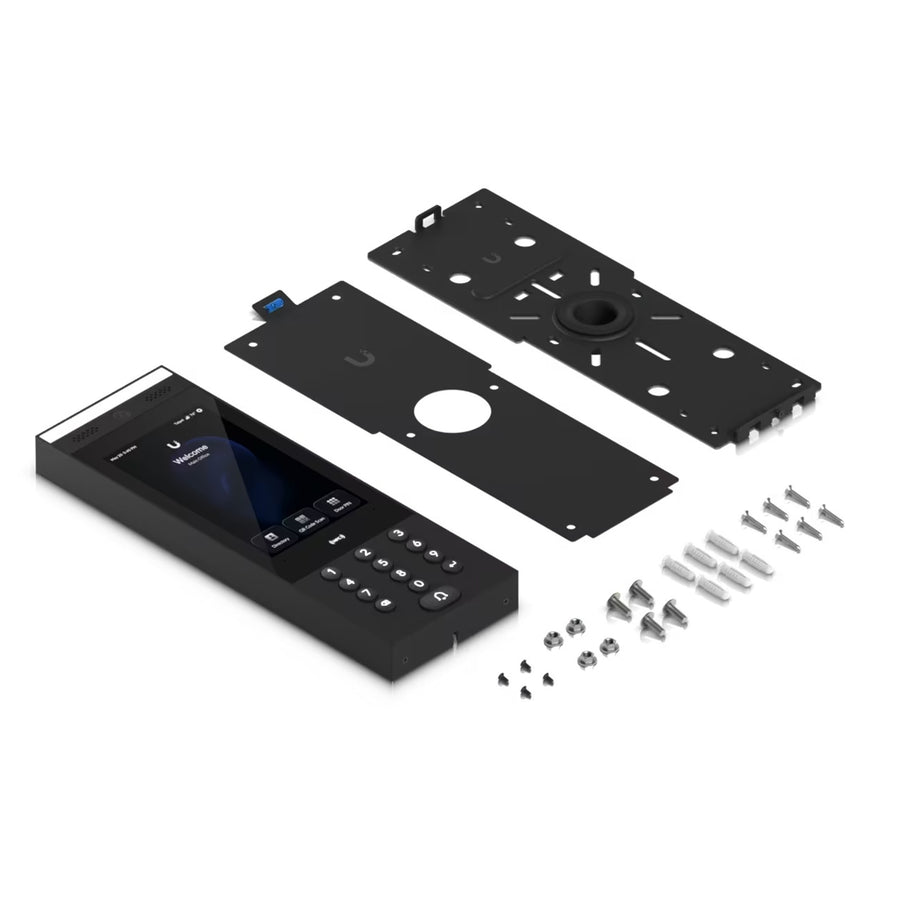

| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F)Display: -25 to 60° C (-13 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |

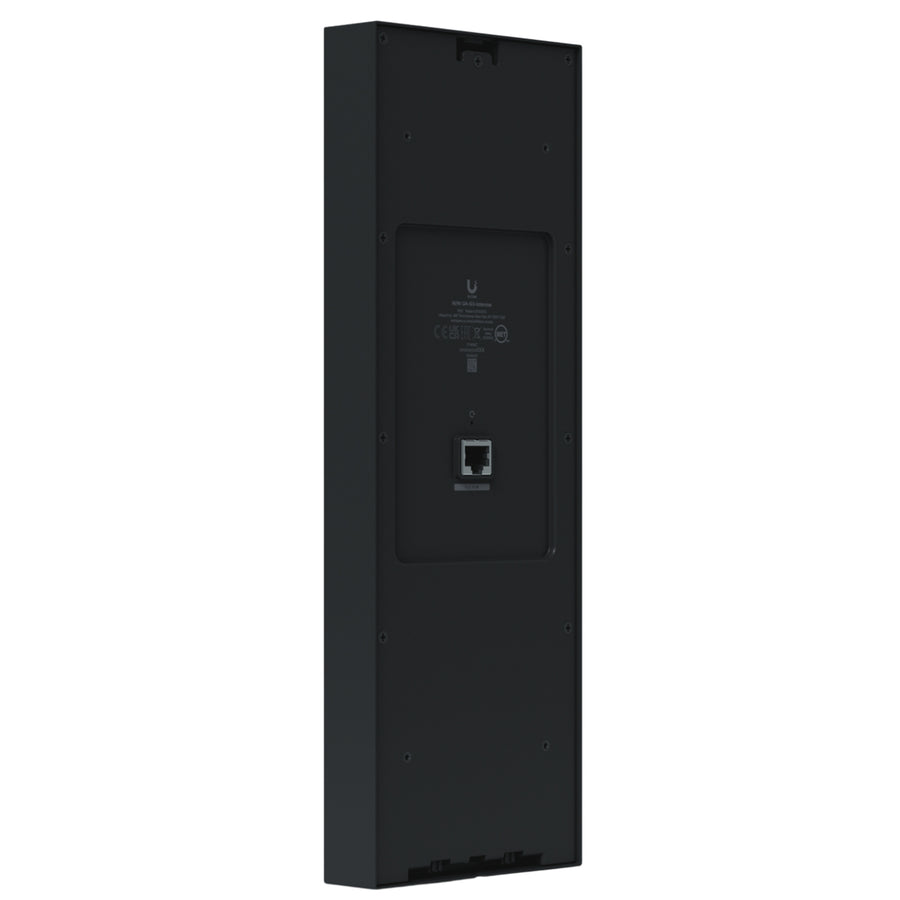

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE |
| UL 294 Power-limited Class 2 PSU | UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Sensors | Proximity sensor, ALS sensor |
| Display | 177 mm (7") diagonal |
| Touch Screen Technology | Capacitive multi-touch |
| Display Luminance | Max. 1000 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1024 x 600 px |
| Microphone | Yes |
| Speaker | Yes |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)MIFARE Classic / MIFARE DESFIRESony FeliCa™ (ID only)NFC Forum tags T1T, T2T, T3T, T4T and T5TECP 2.0 |
| LEDs | Amber |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Intercom, V01 |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
